Summary of Contents for Peavey DJ Mixer
- Page 2 Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

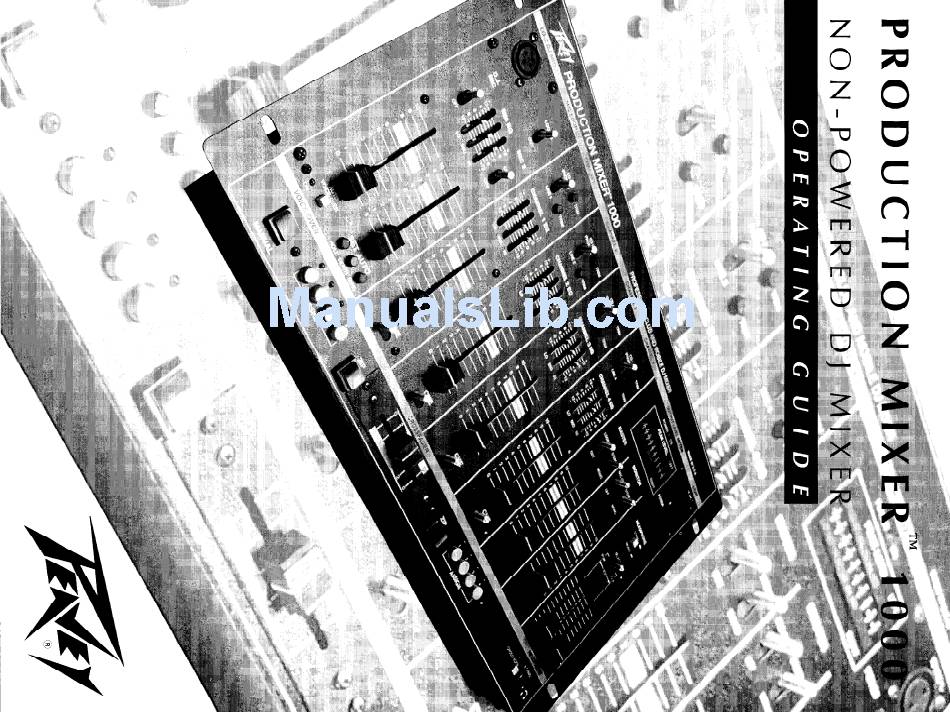

- Page 3 Production MixerTM 1000 Thank you for purchasing the Peavey Production Mixer TM 1000 professional DJ mixing unit. When used in accordance with this manual, your new DJ mixer will give years of good service. FEATURES: Monitor Facility with separate switch for mic in/out...
-
Page 4: Mic Channel
PM 1000 Front Panel: MIC CHANNEL Balanced Low 2 Microphone Input (1): For use with a low impedance microphone or low level source equipped with an XLR connector. Microphone Loop Select Switch (2): When the switch is in the out position, the microphone loop is bypassed. Mic EQ (3): Active tone controls (k12 dB) that vary the Lo, Mid, and Hi frequencies. -
Page 5: Master & Monitor
Automatic Voice-Over Switch, LED, and Set Auto Switch (8): When this switch is in the “on” position, presentation of signals on either of the two microphone inputs, such as announcements, etc., automatically drops the level of the music. Placing this switch in the “off” position defeats this automatic facility. - Page 6 Depress to the “on” position to turn the unit on. Light Socket (24): A 2-pin XLR jack is provided for connecting an optional gooseneck mixer lamp for illumination in adverse lighting conditions. Peavey accessory lamp number ML-3 is a suitable gooseneck mixer lamp for this pur- pose. HEADPHONE Headphone Mono/Stereo Selection Switch (25): This switch enables the operator to select either stereo or mono signals through the headphones.
-
Page 7: Rear Panel
Blending and crossfading between all channels is accessible by assigning channels 1, 2, 3, or 4 for left- and right-hand positioning of the crossfader slider. For example: Left-hand ASSIGN switch set to channel #3 will access channel 3 when the crossfade slider is in the left-hand position. - Page 8 Program Loop - Send (Out) and Return (In) (38): Send and return jacks are provided for stereo patching of external effects devices, graphic equalizers, or other signal processing devices to the program and monitor channels. Chassis Ground Lug (39): Grounds from other pieces of equipment should be connected at this point to minimize ground loop possibili- ties between power amps, outboard signal processing units, turntables, etc.
-
Page 9: Specifications
SPECIFICATIONS Input sensitivity measured with master fader at Summarv of Functions: nominal and channel fader at maximum. 8 Stereo inputs - 4 CD/Phone and 4 Line 4-way assignable crossfader 0 dBV = 1 volt RMS 2 Microphone channels with 3-band EQ and CD/Phone Inputs: @ 1 kHz automatic voice-over facility with on/off switch. - Page 10 ......: . . ,. . . : ....i I .
- Page 11 tlflOd 13NNVH3 33HHl 13NNVH3 0M.l 13NNVH3 13NNVH3...
- Page 12 PM 1000 Patch Diagram One device to each pair of CD/phone inputs per channel All lines are Stereo unless otherwise noted One device to each pair of outputs Power Amp and loudspeakers -or- Tape Recorder Mono lines to and from Graphic EC&...
- Page 13 For further information on other Peavey products, ask your Authorized Peavey Dealer for the appropriate Peavey catalog/publication: Bass Guitars Guitars Bass Amplification Guitar Amplification Sound Reinforcement Enclosures Microphones Keyboards Lighting Mixers, Powered/Non-Powered Accessories/Cables Effects Processors AxcessTM Wear The Peavey BeatTM...
- Page 14 PEAVEY 90-DAY LIMITED WARRANTY ON TUBES AND METERS If this product contains tubes or meters, Peavey warrants the tubes or meters contained in the product to be free from defects in material and workmanship for a period of ninety (90) days from date of purchase; PROVIDED, however, that this limited warranty is extended only to the original retall purchaser and is also subject to the conditions, exclusions, and limitations hereinafter set forth.
-
Page 15: Important Safety Instructions
The user should not attempt to service this equipment. All service work should be done by a qualified service technician. This product should be used only with a cart or stand that is recommended by Peavey Electronics. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. - Page 16 Features and specifications subject to change without notice Peavey Electronics Corporation 711 A Street / Meridian, MS 39301 / U.S.A. / (601 ) 483-5365 I Fax 486-l 278 01995 #I30302335 Printed in U.S.A. 9/95...
