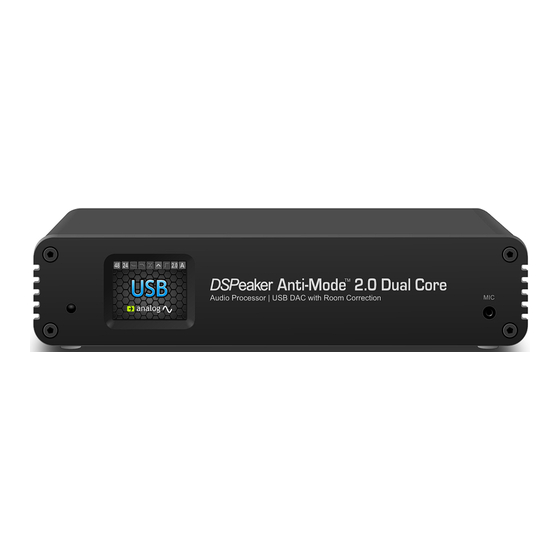

DSPeaker Anti-Mode 2.0 Owner's Manual

Audio processor/usb dac with room correction
Hide thumbs Also See for Anti-Mode 2.0:
Table of Contents

Advertisement

Quick Links

Anti-Mode 2.0 Dual Core
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for DSPeaker Anti-Mode 2.0

Summary of Contents for DSPeaker Anti-Mode 2.0

  • Page 1 Anti-Mode 2.0 Dual Core Owner's Manual...
  • Page 2 Recycling information The product you have purchased is marked according to the Waste Electrical and Electronic Equipment Directive (WEEE Directive). There are take-back systems in place that help to preserve nature and natural resources when products are disposed of appropriately. If you need to dispose of this product, use the take-back system that has dedicated collection facilities for electronic equipment.

  • Page 3: Table Of Contents

    2.0 D WNER ANUAL Table of Contents 1.Introduction......................4 1.1 What's included in the box..................4 2.Overview......................5 2.1 Front Panel......................5 2.2 Rear Panel......................5 2.3 Getting Started....................6 2.4 Typical Room Calibration..................7 3.Home Screen....................10 4.Settings Menu....................11 4.1 House Curve Tool....................12 4.2 Tilt Curve Tool....................

  • Page 4: Introduction

    Perfection in sound can only be achieved through the mastery in the art of room acoustics! We have worked hard to ensure that the Anti-Mode 2.0 Dual Core is not only powerful and versatile but also intuitive and easy to use. However, it is a good idea to read this manual in whole before operating the unit.

  • Page 5: Overview

    (5)Power supply input (12VDC or 9VAC) (6)USB connector (7)S/PDIF Toslink input (8)S/PDIF Toslink output (9)DSPeaker datalink connector *) see the warning below. IMPORTANT: Never connect both RCA and XLR inputs (1) and (3) at the same time! The analog INPUT connector types are meant to be exclusive alternatives to each other.

  • Page 6: Getting Started

    WNER ANUAL 2.3 Getting Started Anti-Mode 2.0 Dual Core can be utilized in many different kinds of configurations. Before powering the device, please connect all the inputs and at least one of the outputs that are relevant to your system.

  • Page 7: Typical Room Calibration

    2.0 D WNER ANUAL MAIN MENU 2.0 CALIBRATION Multi-point Advanced Typical Calibration 2.4 Typical Room Calibration ➢Press MENU on the remote controller. The main menu screen appears. ➢Use the arrow buttons to highlight Calibration menu item and press the OK button to select it.
  • Page 8 2.0 D WNER ANUAL ➢Make sure either analog or digital output is connected to powered speakers or subwoofers. If the analog output is used, a test tone should now be audible. ➢If needed, press the OUTPUT button on the remote to change to digital output. Please consider the warning below prior to doing so.
  • Page 9 2.0 D WNER ANUAL ➢You can cancel the calibration process at any time by pressing the BACK button. This will revert the room correction parameters back to their previous calibration state. (However, possible new speaker delay values from the distance detection step stay in effect.

  • Page 10: Home Screen

    2.0 D WNER ANUAL 3.Home Screen The default home screen view consists of three components. The currently active input is displayed at the center. ➢The active input can be switched by pressing the INPUT button on the remote. Similarly, the active output is shown at the bottom of the screen. ➢Press the OUTPUT (green-coded) button to switch between the digital and analog output modes.

  • Page 11: Settings Menu

    Display firmware version and CPU usage information. PC link: export the measurements to a computer via USB or perform system update. System update requires separate software which is currently www.dspeaker.com available for Windows only. Visit for more information. Rev. 0.93...

  • Page 12: House Curve Tool

    2.0 D WNER ANUAL PLEASE NOTE: Any changes made in the various EQ editors are generally not updated in real-time. In order to hear the difference in the sound output, accept the changes and close the corresponding editor by pressing OK on the remote controller. House Curve Tool The House curve tool provides a quick method of changing the target curve of the bass response.

  • Page 13: Tilt Curve Tool

    2.0 D WNER ANUAL EXAMPLE: Boosting the lower bass under 50Hz by about 3 dB How to do it step-by-step: ➢Open main menu by pressing the MENU button on the remote controller. ➢Navigate to the Settings menu using the arrow buttons and press OK to select it.

  • Page 14: Infrasonic Filter

    2.0 D WNER ANUAL EXAMPLE: Adding a -3dB treble tilt-down above 5 kHz Background: Some recordings seem too bright or 'toppy' in their tonal balance. To compensate this the high frequencies can be toned down using a subtle high frequency attenuation filter. How to do it step-by-step: ➢Open main menu by pressing the MENU button.

  • Page 15: High/Lowpass Filters

    ANUAL High/Lowpass filters The Anti-Mode 2.0 Dual Core features fully customizable highpass and lowpass filters. These filters can be used to control the pass-band of the speaker or subwoofer. For example, with a custom lowpass, it is easy to implement a more precise digital cross- over filter for a subwoofer.
  • Page 16 2.0 D WNER ANUAL more slots than the 6 visible ones, just scroll down with the DOWN button. Active filters are represented with green boxes in the filter list, inactive filters are grayed out. The filter name (such as EQ01 S) gives general information about the designed filter. ...
  • Page 17 2.0 D WNER ANUAL EXAMPLE: Adding a psycho-acoustic 3 kHz dip Background: The idea behind making a 3 kHz dip originates from the human auditory system and diffuse field characteristics. The human hearing is less sensitive to diffuse fields in the neighborhood of 3 kHz. Because of a flat microphone response, compared to the original listening situation for example in a concert hall, many recordings have too much energy around 3 kHz.

  • Page 18: Digital Headroom (Advanced)

    2.0 D WNER ANUAL Digital Headroom (Advanced) All internal digital processing is performed with 32- or 40-bit accuracy with the appropriate number of bits reserved for headroom. However, if emphasizing (raising) filters are used, some input signals could cause saturation / clipping at the output. The unit automatically calculates the best headroom setting from the gains of the active filters.

  • Page 19: Language Selection

    By selecting “PC Link”, you can export the measurements of the currently selected profile to a PC or Macintosh computer via USB. Anti-Mode 2.0 Dual Core will appear as a removable disk and you can copy the measurements as text files that can be imported to popular PC / MAC measurement programs.

  • Page 20: Using Sound Profiles

    ANUAL 5.Using Sound Profiles Anti-Mode 2.0 Dual Core supports up to four independent sound profiles. A sound profile includes everything that affects the sound: the room correction filters and all possible custom filters (highpass/lowpass filters, house curve etc.) Also all room measurements are stored in the profile.

  • Page 21: Advanced Calibration

    2.0 D WNER ANUAL 6.Advanced Calibration Advanced calibration gives the user more control over the calibration parameters. The procedure is similar to the typical calibration, but with some additional steps. Refer to ”Typical Calibration” section of this manual for an overview of the basic process. To perform the advanced calibration, choose the Advanced Calibration option at the Calibration menu.

  • Page 22: Multi-Point (Wide Area) Calibration

    “too early” compared to the other, whereas manual adjustment of the delays allows delaying both channels. This is of course unnecessary for any systems where all of the audio is going through Anti-Mode 2.0 Dual Core. ➢Press the OK button to proceed to the next dialog.

  • Page 23: Measurements

    2.0 D WNER ANUAL ➢You can add as many points as you want to the calibration, and the system automatically weights them by comparing them to the main calibration data. The maximum recommended number of additional points is 7, more points would not contribute much to the correction model.

  • Page 24: Audio Connections

    Consider the following guidelines when connecting Anti-Mode 2.0 Dual Core. ✔The Anti-Mode 2.0 Dual Core as a 2-channel pre-amplifier and DAC Connect your audio sources to the Anti-Mode 2.0 Dual Core's inputs. You can connect up to three sources using USB, Toslink (S/PDIF) and one of the analog inputs.

  • Page 25: Troubleshooting

    ✗”Clipping Detected”: this warning is displayed at the home screen in two cases. 1.”Clipping Detected” is shown when Anti-Mode 2.0 Dual Core detects that the analog input signal has reached the maximum input voltage level, causing the input to be clipped.
  • Page 26 WNER ANUAL Check the output settings of the device you have connected to the Anti-Mode 2.0 Dual Core analog inputs. If you can not reduce its output level, check that the input sensitivity is set to low in the ”Audio Settings” menu. If this does not help, you can try using the RCA inputs instead of XLR inputs.
  • Page 27 / after graphs are looking good. If the problems persists, contact DSPeaker support. It speeds up the troubleshooting process if you have a picture taken of the before / after graphs (with camera etc.) or exported the responses to a file using USB.

  • Page 28: Technical Specifications

    Firmware specifications are subject to change between firmware versions. • Digital Signal Processing: 40 bits, 2 channels • Anti-Mode 2.0 Multi-Rate (FIR & IIR) • House Curve, Linear-Phase Tilt, Parametric EQs, Adjustable Infrasonic Filter • USB and Toslink S/PDIF inputs 44.1 kHz / 48 kHz 24-bit •...
