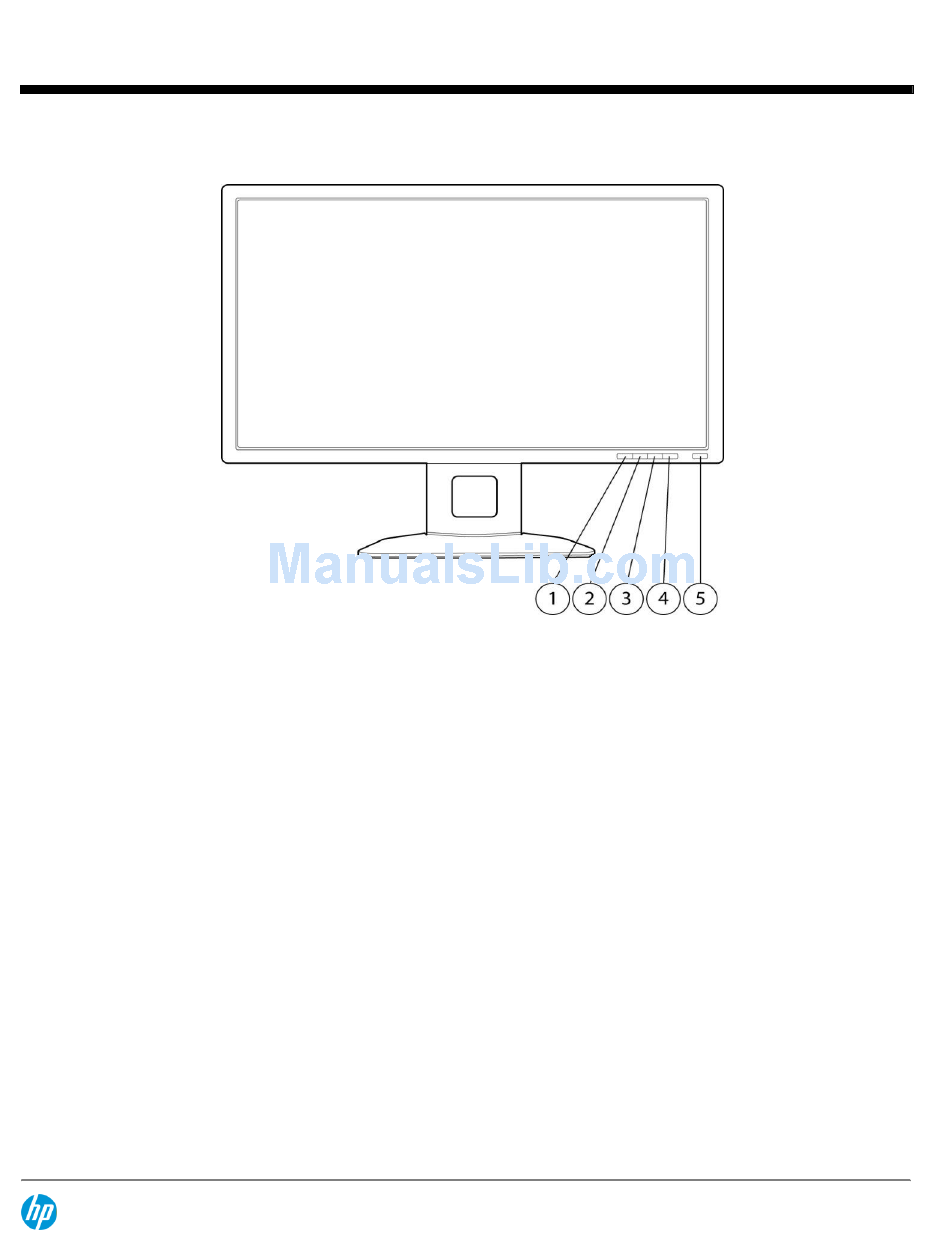

Overview
1. Menu
Opens, selects or exits the OSD menu.
2. Minus "-"
If the OSD menu is on, press to navigate
backward through the OSD menu and
decrease adjustment levels.
3. Plus"+"/Input
If the OSD menu is on, press to navigate
forward through the OSD menu and increase
adjustment levels.
If the OSD menu is inactive, press to activate
the source button that chooses the video
signal input (DisplayPort, HDMI, DVI or VGA).
DA - 14756 North America — Version 4 — January 16, 2014
4. OK/Auto
If the OSD menu is on, press to select the
highlighted menu item. If the OSD menu is
inactive, press to activate the auto
adjustment feature to optimize the screen
image.
5. Power/Power LED Turns the monitor on or off.
LED:
fully powered = white;
sleep mode = amber;
sleep timer mode = flashing amber.

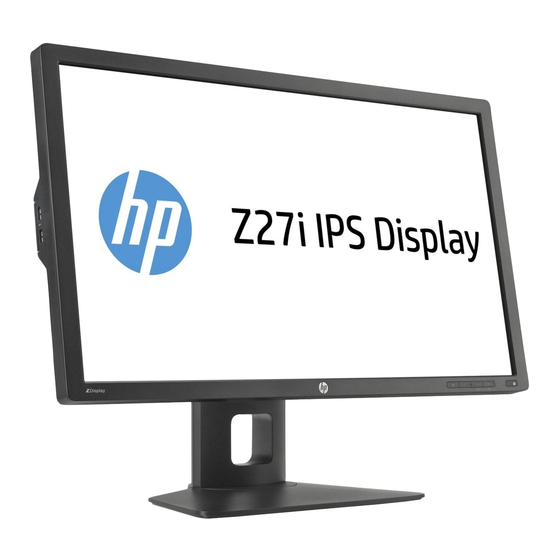

HP Z27i 27-inch IPS Display
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HP Z27i
Summary of Contents for HP Z27i
- Page 1 QuickSpecs HP Z27i 27-inch IPS Display Overview 1. Menu Opens, selects or exits the OSD menu. 4. OK/Auto If the OSD menu is on, press to select the highlighted menu item. If the OSD menu is inactive, press to activate the auto adjustment feature to optimize the screen image.
- Page 2 QuickSpecs HP Z27i 27-inch IPS Display Overview Use two HP Z27i 27-inch IPS Displays for a high productivity work solution. (Multi-monitor support depends on your PC capability.) Models: D7P92A4, D7P92A8, D7P92AS, D7P92AT DA - 14756 North America — Version 4 — January 16, 2014...
-
Page 3: Technical Specifications
Size vs. NTSC (CIE 1976) 101% Coverage of sRGB (CIE 100% 1976) *All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. ** With the use of FRC technology. User Controls Buttons or Switches Menu, Minus ("-"), Plus ("+") /Input, OK/Auto, Power... - Page 4 QuickSpecs HP Z27i 27-inch IPS Display Technical Specifications 1440 x 900 @ 60 Hz 1600 x 900 @ 60 Hz 1600 x 1200 @ 60 Hz 1680 x 1050 @ 60 Hz 1920 x 1080 @ 60 Hz 1920 x 1200 @ 60 Hz...
- Page 5 & declarations IT ECO declaration US ENERGY STAR® TCO 6.0 EPEAT® Gold where HP registers commercial display products. See http://www.epeat.net for registration status in your country US Federal Energy Management Program (FEMP) Energy Consumption...
-
Page 6: Additional Information
RoHS Directive on a worldwide basis. By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive). - Page 7 HP sales office. Recycling Products returned to HP will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers.
- Page 8 Simply mount an HP Thin Client to the Kit's VESA plate, slide it into place on to the product's the back of an HP Z24i, Z27i or Z30i IPS Display stand, and you're ready to go. QuickSpecs. HP Dual Output USB...
- Page 9 Low Halogen. 5. The HP Quick Release has been designed to support a maximum of up to 24 lbs (10.9 kg) for all devices mounted. Because mounting surfaces vary widely and the final mounting method and configuration may vary, mounting fasteners are not supplied (other than the VESA-compliant screws).
