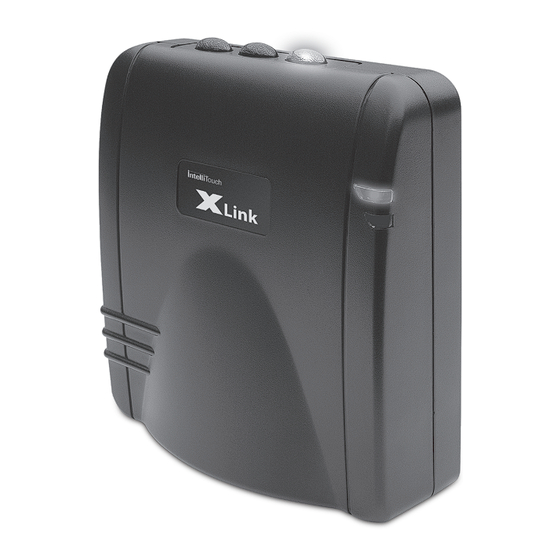

Xlink ITC-BT Owner's Manual

Cellular bluetooth gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

ITC-BT Cellular BluetoothGateway
Owner's Manual


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITC-BT and is the answer not in the manual?

Questions and answers

Related Manuals for Xlink ITC-BT

Summary of Contents for Xlink ITC-BT

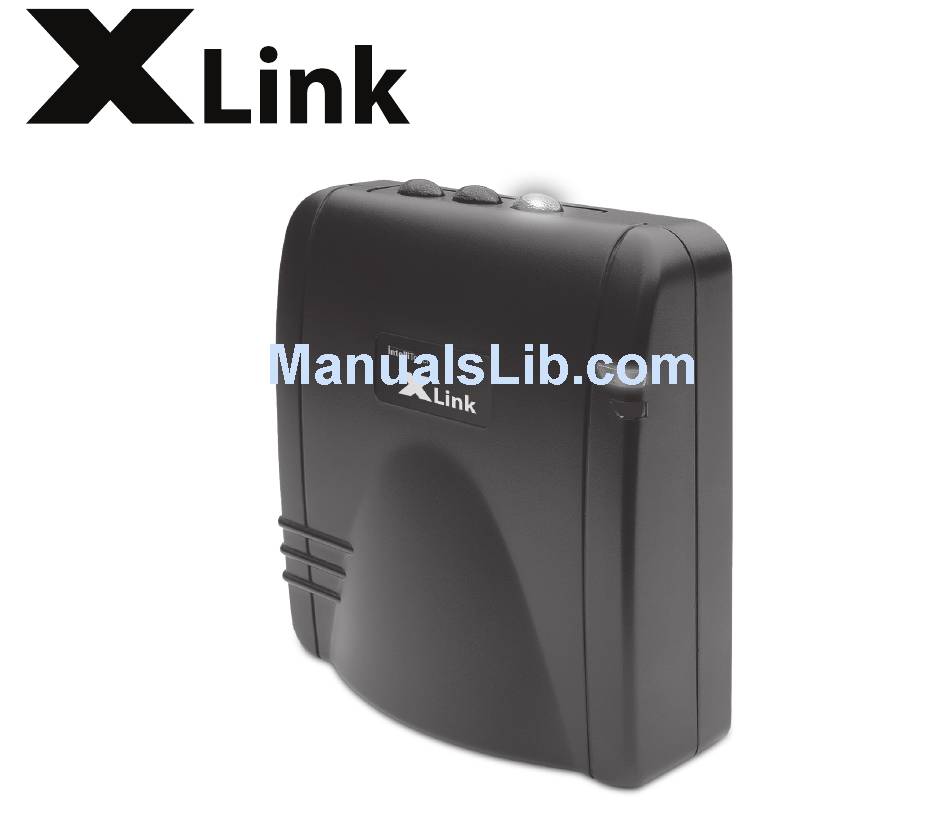

  • Page 1 ITC-BT Cellular BluetoothGateway Owner’s Manual...

  • Page 2: Table Of Contents

    Table of ConTenTs Introduction............................3 Package.Contents..........................3 XLink.Connections.Diagram......................4 Setup..............................5 Pairing.your.Bluetooth.Cell.Phone.to.the.XLink.............6 Automatic.Bluetooth.Connection..................7 Manual.Bluetooth.Connection....................8 Testing.the.Setup..........................8 Light.Indicators..........................9 Using.the.XLink..........................0 Placing.a.Call..........................0 Selecting.a.Line........................... Receiving.a.Call........................... Force.Call.Connection...................... Speed.Dialing.......................... Voice.Mail............................3 Caller.ID............................4 Call.Waiting. .

  • Page 3: Introduction

    InTroduC TIon Congratulations.on.your.purchase.of.the.XLink.ITC-BT.Cellular.Gateway..You.will.now. be.able.to.access.your.cell.phone.calls.from.any.standard.telephone.connected.to.the. XLink. XLink.ITC-BT.is.designed.to.work.with.your.standard.home.phone.independently.of. your.telephone.service. WARNING: •..Never.connect.the.XLink.to.an.active.telephone.line,.either.directly.. or.through.another.telephone. •..If.the.RED.Error.light.starts.flashing.then.you.have.connected.the.XLink.to.an. active.telephone.line..You.must.immediately.disconnect.the.telephone.cord. and.check.your.setup PaCk age ConTenTs Each.XLink.ITC-BT.gift.box.includes.the.following. •..XLink.ITC-BT.Unit •..9-Volt.DC.Power.Adapter •..Vertical.Stand •..Quick.Start.Guide •..Owner’s.Manual...

  • Page 4: Xlink.connections.diagram

    XlInk ConneC TIons dIagr am CELL.PHONE.#3.Button.&.Status.Light CELL.PHONE.#.Button.&.Status.Light CELL.PHONE.#.Button.&.Status.Light POWER.INDICATOR ERROR.LIGHT TELEPHONE.CORD.CONNECTION POWER.ADAPTER.CONNECTION USB.CONNECTION...

  • Page 5: Setup

    STAND ...Connect.stand.to.your.XLink.as.included.in. HOME.PHONE your.gift.box. ...Plug.a.standard.analog.corded.or.cordless. telephone.into.the.XLink.using.a.regular. telephone.cord. ...Plug.the.supplied.power.adapter.into.the. XLink.and.the.other.end.into.a.wall.power. outlet. 3...To.pair.your.bluetooth.cell.phone.refer.to. WALL.OUTLET “Pair.your.Bluetooth.cell.phone.to.the.XLink. HINTS: •..Place.your.cell.phone.where.you.have.the.best.reception.in.your.home.or. office. •..For.best.audio.quality.keep.your.cell.phone.within.0.feet.of.the.XLink.unit. •..Using.a.multi.handset.cordless.phone.gives.you.multiple.extensions. •..Certain.cordless.phones.that.operate.in.the..4.GHz.frequency.range.may. interfere.with.the.cell.phone.reception..Keep.as.much.distance.as.possible. between.the.XLink.and.these.types.of.cordless.phones. •..Some.wireless.networks,.such.as.80..and.Wi-Fi,.may.interfere.with. bluetooth.radio.signals..Keep.as.much.distance.as.possible.between.this.type.of. equipment,.the.XLink.and.your.cell.phones.

  • Page 6: Pairing.your.bluetooth.cell.phone.to.the.xlink

    PaIrInG your Blue TooTh Cell Phone To The XlInk Each.XLink.ITC-BT.can.be.paired.to.three.different.cell. phones,.one.for.each.line..To.pair.a.bluetooth.cell.phone.to. a.line.perform.the.following.steps: .. Press.and.hold.one.of.the.three.line.buttons.on.the. XLink.ITC-BT.until.it.flashes.rapidly.(keep.button. pressed.for.approximately.4.seconds). .. Put.your.cell.phone.into.the.mode.where.it.searches.for. bluetooth.devices.(similar.to.searching.for.a.bluetooth. car.kit)..This.may.be.found.in.your.cell.phone’s.menu.under.‘Tools’ , .‘Setup’ , . ‘Bluetooth’.and/or.‘.Connections’.menu..If.given.the.choice,.search.for.‘Handsfree’. devices.and.select.“Look.for.Devices”..Your.cell.phone.should.then.scan/search.for. Bluetooch.devices 3.. When.the.XLink.is.found,.XTech.Gateway.will.be.displayed.on.your.cell.phone’s.LCD.. Accept.this.device..In.order.to.accept,.your.cell.phone.may.ask.you.to.do.so.by.pressing. any.number.of.selections.including;.‘select’ , .‘bond’ , .‘pair’ , .‘yes’ , .‘ok’ , .etc.

  • Page 7: Automatic.bluetooth.connection

    HINT: •..Each.line.can.only.be.paired.to.ONE.cell.phone.at.a.time. •..(as.soon.as.pairing.is.started.for.a.line).Previous.pairing.. information.is.lost. •. A.line.can.be.paired.to.a.different.cell.phone.at.any.time.by.repeating.the. pairing.procedure. •. A.paired.line.can.be.“unpaired”.and.prepared.for.re-pairing.by.holding. down.the.line.button.until.the.button.flashes.rapidly. •. The.pairing.process.can.be.aborted.at.any.time.by.pressing.the.line.button.. The.previous.paired.cell.phone.will.be.disconnected. auTomaTIC Blue TooTh ConneC TIon Once.a.line.is.paired.to.a.cell.phone.it.will.automatically.try.to.connect..When.the.cell. phone.goes.out.of.range,.the.line.light.will.flash.slowly.to.indicate.it.is.not.connected.and. is.searching.for.the.cell.phone..When.the.cell.phone.comes.into.range.of.the.XLink.it.will. automatically.connect.to.the.XLink.and.the.line.light.will.turn.solid.blue.to.indicate.the. connection. If.you.are.on.a.call.and.walk.into.range,.the.XLink.ITC-BT.and.cell.phone.will. automatically.connect.and.route.the.call.to.an.extension.set..Simply.pick.up.an. extension.set.to.continue.the.call..If.the.call.is.not.automatically.connected.see.section. Force.Call.Connection. If.a.line.light.is.not.flashing.and.you.wish.to.place.the.line.into.automatic.connection.mode,. simply.press.the.line.button.once.

  • Page 8: Manual.bluetooth.connection

    Blue TooTh ConneC TIon Should.you.not.want.live.calls.to.be.transferred.automatically.or.may.want.to.force.the.cell. phone.to.disconnect.from.the.XLink. When.a.line.is.connected.(blue.light.remains.on).pressing.the.line.button.will.disconnect. that.line.and.the.light.will.turn.off.once.disconnected..Audio.will.be.transferred.to.the.cell. phone.and.you.can.continue.your.call.on.the.cell.phone. When.a.line.is.not.connected.and.not.searching.(blue.light.remains.off).pressing.the.line. button.will.put.the.line.into.searching.mode.(blue.light.flashes.slowly)..If.the.cell.phone. is.within.range.the.cell.phone.will.connect.with.the.XLink.and.the.blue.light.will.remain. solid. HINT: •..Some.cell.phones.will.prompt.you.when.you.come.within.range.of.the.XLink..You.can. then.decide.if.you.want.to.transfer.the.call.to.the.XLink. TesTIng The se TuP After.connecting.one.or.more.telephones.to.the.XLink,.the.setup.test.feature.can.be. used.to.ensure.proper.connections. ..Ensure.the.green.light.is.on.and.the.red.light.is.not.flashing. ..Simultaneously.press.and.hold.the.line..and.line..buttons.for.approximately.two. seconds. 3..All.telephones.connected.to.the.XLink.should.start.ringing.

  • Page 9: Light.indicators

    HINT: •..If.an.extension.telephone.does.not.ring,.check.that.it.is.powered.and.that.all. cables.are.properly.connected. NOTE: •..Some.older.analog.telephones.may.not.ring.properly.when.connected.to.the. XLink.ITC-BT...Avoid.these.phones. lIghT IndIC aTors BLUE Green Solid This.indicates.the.unit.is.powered.up.and. running.normally. reD Flashing Indicates.the.XLink.has.been.connected.to.an. active.telephone.line..Immediately.disconnect. any.telephone.line.connections.until.the.RED. light.turns.off. WARNING: •..When.the.XLink.ITC-BT.is.plugged.into.an.active.land.line.it.may.interfere. with.the.proper.operation.of.that.land.line.

  • Page 10: Using.the.xlink

    Blue Solid Indicates.the.selected.line.is.connected.to.cell.phone Blue Fast Flash Indicates.the.selected.line.is.in.pairing.mode..Use.your.cell.phone.to.search.and.pair.to. the.XLink. Blue uneven Flash Indicates.the.selected.line.is.connected.to.cell.phone.and.there.is.an.incoming.call.on. this.line. Blue Slow Flash Indicates.the.selected.line.is.paired.but.the.cell.phone.is.currently.out.of.range.and/or. temporarily.not.connected..XLink.is.actively.searching.for.this.cell.phone. Blue off Indicates.the.selected.line.is.not.paired.or.not.searching.for.a.cell.phone.(Manual. Connection.Mode)... usIng The XlInk To.use.the.XLink.connect.your.normal.analog.corded.or.cordless.telephone.into.the. connector.on.the.XLink.with.a.standard.telephone.cable..This.phone.is.now.your. extension.telephone. PlaCInG a C all To.place.a.call.on.any.telephone.connected.to.the.XLink,.simply.pick.up.the.handset.. and.dial.the.number..An.optional..#..digit.may.be.dialed.at.the.end.of.the.number.to.activate. dialing.immediately,.the.same.as.the.Send.button.on.the.cell.phone..Dialing.a..#..is.not. required..The.dialing.process.will.start.following.a.short.delay.after.the.last.digit.is.dialed.

  • Page 11: Selecting.a.line

    Anytime a rapid series of beeps is heard instead of normal dial tone, that specific line (or any line) is not available for outgoing calls. This is because the XLink has not been paired with a cell phone or the cell phone is out of range. reCeIvInG a C all When a cell phone that has been paired and is currently connected with the XLink rings, all telephones plugged into the XLink will also ring.

  • Page 12: Force.call.connection

    You can also tell which line is ringing by looking at the line buttons on top of the XLink. The blue light for a ringing line will flash with a unique cadence. ForCe C all ConneC TIon sometimes dial tone will be heard when an extension telephone is picked up to continue an active call that was transferred from your cell phone to the XLink.

  • Page 13: Voice.mail

    You can access your cell phone voice mail from extension telephone. Before this feature will work you may have to program your voice mail number into the XLink. 1. Pick up an extension telephone. Listen for dial tone. 2. OPTIONAL: select Line: 1 FLAsh or 2 FLAsh or 3 FLAsh 3.

  • Page 14: C Aller Id

    C aller ID Caller.ID.will.display.the.incoming.call.information.on.the.LCD.of.your.extension.sets.. For.this.feature.to.work,.both.the.cell.phone.and.your.extension.telephones.must. support.caller.ID. NOTE: •..This.feature.may.not.be.supported.by.all.cell.phones. •..Most.cell.phones.only.provide.the.caller.number.and.not.the.name. C all WaITInG The.XLink.will.generate.a.call.waiting.tone.to.alert.you.to.another.incoming.call.on.any. of.the.3.lines..When.you.hear.a.call.waiting.tone,.press.the..FLASH..(or..CALL.WAITING..or.. LINK...,.etc.).button.on.the.extension.telephone..This.will.connect.the.second.caller... Pressing.the..FLASH..key.will.then.toggle.through.all.active.calls. NOTE: •..This.feature.may.not.be.supported.by.all.cell.phones. voICe DIalInG If.your.cell.phone.supports.voice.dialing.then.the.XLink.may.be.able.to.access.this. feature..The.following.steps.may.allow.you.to.voice.dial.from.extension.telephones:. .. Pick.up.an.extension.telephone..Listen.for.dial.tone. .. OPTIONAL:.Select.Line:....FLASH..or....FLASH...or..3..FLASH...

  • Page 15: Computer.connectivity

    3.. Dial...#...# 4.. Say.name.or.follow.voice.prompts.from.cell.phone. NOTE: •..Not.all.cell.phones.support.this.feature.and.not.all.cell.phones.enable.the. XLink.to.access.this.feature. ComPuTer ConneC TIVIT Y The.XLink.has.a.USB.port.that.allows.the.XLink.to.communicate.with.a.computer. running.the.proper.software.(not.supplied)..Please.see.the.XLink.website.(www. xlinkbtgateway.com).to.upgrade.firmware.and.configure.your.XLink. TroubleshooTIng red light is flashing The.XLink.is.connected.to.an.active.telephone.line..Immediately.disconnect.the.XLink.. Even.if.you.have.discontinued.your.telephone.service.your.telephone.line.may.still.be. electrically.active..Either.plug.your.telephones.DIRECTLY.into.the.XLink.or.have.a.qualified. phone.service.technician.disconnect.the.telephone.line.connection.to.your.home. Cell phone does not pair to Xlink Hold.down.one.of.the.line.buttons.until.the.blue.light.flashes.rapidly..The.line.is.now. ready.to.be.paired.
  • Page 16 Cell phone is paired but will not connect The.line.that.the.cell.phone.is.paired.to.is.not.in.Auto.Connect.mode.(see.section. Automatic.Bluetooth.Connection)..Press.and.release.the.line.button.so.that.the.blue. light.flashes.slowly..The.line.is.now.searching.for.the.cell.phone. no dial tone on extension telephone Check.that.the.RED.light.on.the.XLink.is.not.flashing..Ensure.your.extension. telephone(s).are.properly.plugged.into.the.XLink..If.the.GREEN.light.is.not.on,.check. the.power.cord.is.connected.properly..See.section.Testing.the.Setup. error/busy tone on extension(s) No.cell.phones.are.currently.connected..Ensure.a.cell.phone.that.has.been.paired.(see. section.Pairing.your.Bluetooth.Cell.Phone.to.the.XLink).with.the.XLink.ITC-BT.is.within. range..Ensure.the.line.is.in.Auto.Connect.mode.(see.section.Automatic.Bluetooth. Connection). no caller Id shown on extension telephone Your.cell.phone.and.cellular.service.plan.must.have.caller.ID.enabled..Not.all.cell. phones.support.passing.the.caller.ID.information.to.accessories.such.as.the.XLink,. even.though.they.may.show.this.feature.on.the.cell.phone.screen. Caller Id does not show name Generally,.the.name.must.be.stored.in.the.cell.phone.book.for.this.to.work..Many.cell. phones.do.not.support.passing.the.caller.name.information.to.accessories.such.as.the.
  • Page 17 Voice dialing does not work Not.all.cell.phones.support.this.feature..Some.flip.cell.phones.require.that.the.flip. cover.be.opened.for.this.feature.to.work. speed dialing does not work Not.all.cell.phones.support.this.feature..Some.flip.cell.phones.require.that.the.flip. cover.be.opened.for.this.feature.to.work. Voice mail access not working Voice.Mail.access.dialed.the.wrong.number. For.this.feature.to.work.the.voice.mail.number.must.be.programmed.for.the.desired. line..See.section.on.Voice.Mail. how to check software version To.check.the.XLink.software.version,.connect.a.caller.ID.enabled.telephone.to.the. telephone.line.jack.on.the.back.of.the.unit..Simultaneously.press.and.hold.the..line.. and.line..buttons.for.approximately..seconds..The.phone.connected.to.the.unit.will. ring.and.the.phone’s.display.will.show.the.software.version.information..Pick.up.the. telephone.to.stop.the.ringing.

  • Page 18: Warranty

    Warr anT Y For.the.latest.service.information,.please.consult.our.website:. www.xlinkbtgateway.com IntelliTouch.Communications.(Intellitouch).warrants.this.product.against. manufacturing.defects.in.material.and.workmanship.under.normal.use.for.one.().year. from.date.of.purchase.from.IntelliTouch.and.its.authorized.franchisees.and.dealers... Except.as.provided.herein,.IntelliTouch.makes.no.express.warranties.and.any.implied. warranties,.including.those.of.merchantability.and.fitness.for.a.particular.purpose,. and.are.limited.in.duration.to.the.duration.of.the.written.limited.warranties.contained. herein..Except.as.provided.herein,.IntelliTouch.shall.have.no.liability.or.responsibility. to.customer.or.any.other.person.or.entity.with.respect.to.any.liability,.loss.or.damage. caused.directly.or.indirectly.by.use.or.performance.of.the.product.or.arising.out.of. any.breach.of.this.warranty,.including,.but.not.limited.to,.any.damages.resulting.from. inconvenience,.loss.of.time,.data,.property,.revenue,.or.profit.or.any.indirect,.special,. incidental,.or.consequential.damages,.even.if.IntelliTouch.has.been.advised.of.the. possibility.of.such.damages..Some.states.do.not.allow.the.limitations.on.how.long.an. implied.warranty.lasts.or.the.exclusion.of.incidental.or.consequential.damages,.so.the. above.limitations.or.exclusions.may.not.apply.to.you. In.the.event.of.a.product.defect.during.the.warranty.period,.return.the.product.and. your.sales.receipt.as.proof.of.purchase.date.to.IntelliTouch.will,.at.its.option,.unless. otherwise.provided.by.law:.(a).correct.the.defect.by.product.repair.without.charge.for. parts.and.labor;.(b).replace.the.product.with.one.of.the.same.or.similar.design;.or.(c). refund.the.purchase.price...All.replaced.parts.and.products,.and.products.on.which.a.

  • Page 19: Safety.and.regulations

    The.warranty.does.not.cover:.(a).damage.or.failure.caused.by.or.attributable.to.acts. of.God,.abuse,.accident,.misuse,.improper.installation.or.maintenance,.alteration,. lightning.or.other.incidence.of.excess.voltage.or.current:.(b).any.repairs.other.than. those.provided.by.an.IntelliTouch.authorized.service.facility;.(c).consumables.such. as.fuses.or.batteries;.(d).cosmetic.damage,.(e).transportation,.shipping.or.insurance. costs;.or.(f ).costs.of.product.removal,.installation,.set-up,.service.adjustment.or.re- installation. This.warranty.gives.you.specific.legal.rights,.and.you.may.also.have.other.rights,.which. vary.from.state.to.state. safe T Y and regul aTIons When.using.the.XLink,.follow.these.basic.safety.precautions.to.reduce.the.risk.of.fire,. electric.shock.and.personal.injury: .. Read.the.entire.manual.and.understand.all.instructions. .. Never.connect.this.unit.to.an.active.telephone.line..This.unit.is.not.designed.to. operate.on.the.public.telephone.network.and.should.never.be.connected..to.the. public.telephone.network. 3.. Unplug.this.unit.from.wall.outlets.before.cleaning..Do.not.clean.the.unit.with.liquid. or.aerosol.cleansers..Use.a.dry.or.slightly.damp.cloth.for.cleaning. 4.. Do.not.use.this.unit.near.water..For.example:.near.a.bathtub,.kitchen.sink,.
  • Page 20 bathroom.sink,.pool,.etc. 5.. Never.place.this.unit.near.radiators.or.near.a.place.where.proper.ventilation.is.not. guaranteed. 6.. Use.only.the.power.source.supplied.with.this.unit. 7.. Do.not.overload.wall.outlets.and.extension.cords.as.this.can.result.in.the.risk.of.fire. or.electric.shock. 8.. Do.not.disassemble.this.unit..Take.it.to.a.qualified.service.person.when.service. or.repair.is.required..Opening.or.removing.covers.may.expose.you.to.dangerous. voltages.or.other.risks. 9.. Do.not.use.this.unit.to.report.a.gas.leak.in.the.vicinity.of.this.unit. 0..Avoid.using.this.product.during.an.electrical.storm. ..Unplug.this.unit.from.the.wall.outlet.and.refer.servicing.to.qualified.service. personnel.under.the.following.conditions: a). When.the.power.supply.cord.or.plug.is.damaged.or.frayed. b). If.the.product.has.been.exposed.to.rain.or.water.or.other.liquid. c).. If.the.product.housing.has.been.damaged. d). If.the.product.exhibits.a.distinct.change.in.performance.

  • Page 21: Fcc.notices

    FCC noTICeS This.unit.has.been.tested.and.found.to.comply.with.the.limits.for.a.Class.B.digital. device.as.specified.in.Part.5.of.the.FCC.rules..These.limits.provide.reasonable. protection.against.radio.and.TV.interference.in.a.residential.area..However,.your. equipment.might.cause.TV.or.radio.interference.even.when.operating.properly..To. eliminate.interference,.try.one.or.more.of.the.following.corrective.measures: •. Reorient.or.relocate.the.radio.or.TV •. Increase.the.distance.between.the.equipment.and.the.radio.or.TV •. Use.outlets.on.different.electrical.circuits.for.the.equipment.and.. the.radio.or.TV Changes.or.modifications.not.expressly.approved.by.the.party.responsible.for. compliance.could.void.the.user’s.authority.to.operate.the.equipment. C allInG 911 Calling 911 using a cell phone works differently then calling 911 on a land line. In order for a call to 911 emergency services to be able to provide your exact location, E911 services must be deployed in your area and you must have a GPs enabled and activated call phone.

  • Page 22: Wall.mount.info

    Wall mounT Info This.unit.is.wall.mountable..Use.the.two.arrows.on.the.bottom.of.this.page.as.a.guide. to.position.two.screws.(not.included).into.the.wall..Then.slide.the.back.of.the.unit.onto. the.two.screws. .Inches ./.Inches ./.Inches...
  • Page 23 noTeS...
  • Page 24 San.Diego,.CA. For.Customer.service.contact.. your.point.of.sale.or.visit: www.xlinkbtgateway.com Or.call.us.at: (800).839.-.777 UG 08 XLINk ITC-BT...
