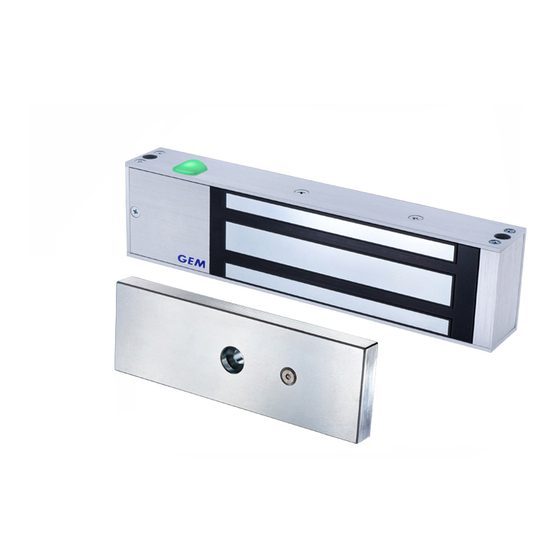

Gianni Industries 10020 Specification

10020BZ
10010
Features
High reliability
Holding force up to 1200 lbs
Anodized aluminum casing
MOV provides spike and surge protection
Dual voltage 12 or 24 VDC (selectable)10020BZ:12VDC
Anti-Residual magnetism function
Statement
The 10010 and 10020 series are a high quality and safety
range of standard fail-safe electromagnet locks that are
simply and work well in order to effectively secure doors .
These locks are recommended for applications which require
higher levels of access control and are suitable for fire doors
and emergency exit doors.
The 10010 and 10020 series are designed for single doors
and are suitable for outswing applications. Installation on
inswing door , narrow-style frames requires the use of
additional brackets . With the accessories provided , the locks
can be used on wooden , and even metal door.
Specification
Operating Voltage: 12/24 VDC
Current Draw: 500mA/12VDC, 250mA/24VDC
(at 20°C)
Operating Temperature: -10~55°C (14~131°F)
Humidity: 0~95% non-condensing.
Holding Force: Up to 1200 lbs (545 Kg)
Dimensions:
Magnet:(L) 267(265), (W) 68, (D) 40 mm
Armature Plate:(L) 185, (W) 61, (D) 16 mm
Mounting Plate:(L) 267(265), (W) 40, (D) 5 mm
Special Finishes for magnet and armature plate: Zinc plated
Epoxy Potting Compound: E87252 (S), UL94V-0
Net Weight : 4.8 Kg
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-10010 Ver. G Published on 2011.09.07
10010 series
Standard Electromagnetic Lock
Regular Installation
10020DS
10020
Anti-residual statement
Magnet
(Power On)
Our electromagnet locks feature Anti-Residual Magnetism
(ARM) which ensures the door can be opened without any
resistance from left over magnetism imparted to the armature
plate
Warranty
The product is warranted against defects in material and
workmanship while used in normal service for a period of 5
years from the date of sale to the original customer. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
GIANNI INDUSTRIES, INC.
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: inquiry@gianni.com.tw
Website: gianni.tw
Magnet
Armature
Armature
(Power Off)
Anti-residual statement
