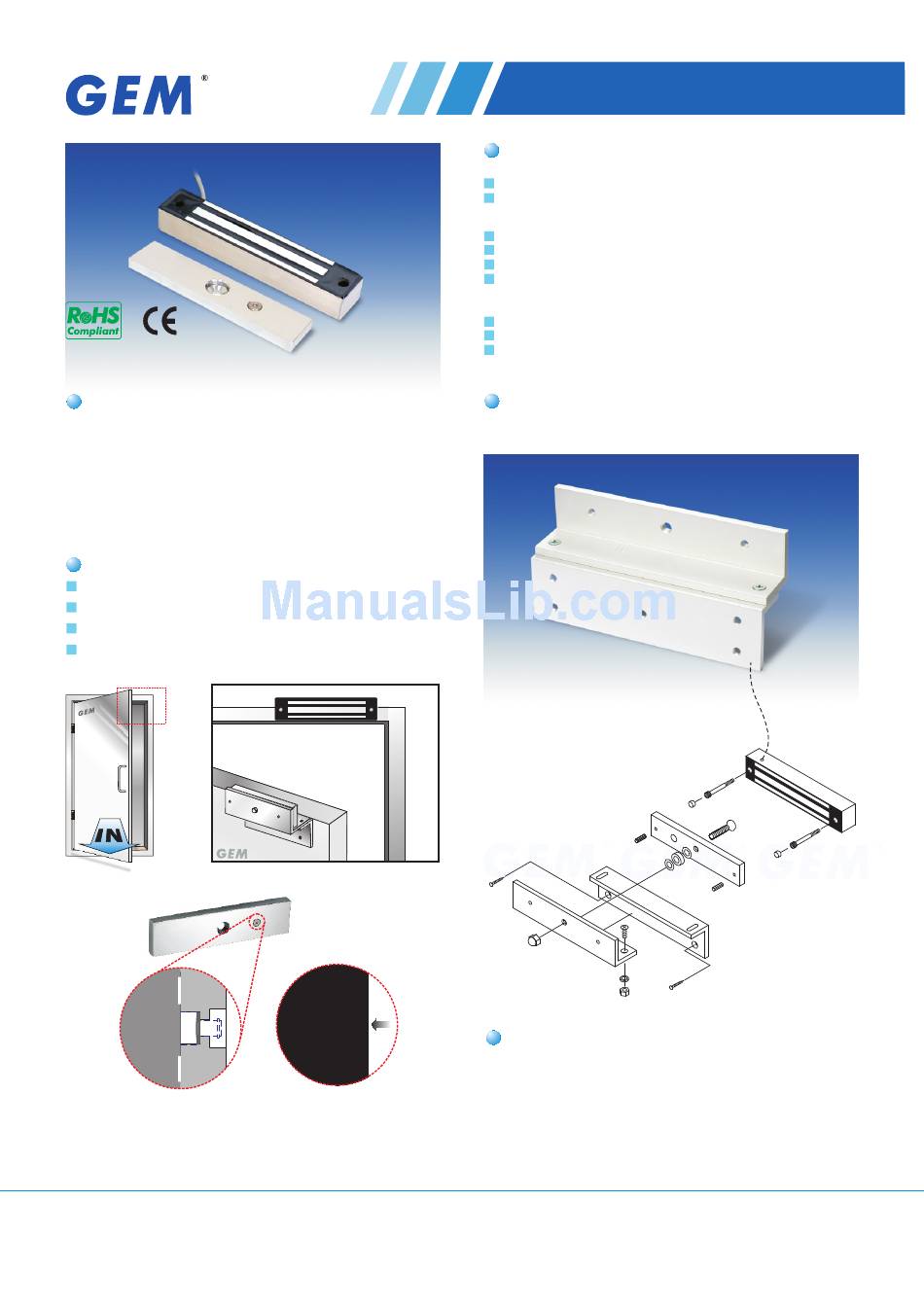

Gianni Industries 10003F Specification Sheet

Statement
10003F is designed for face mount on in-swing
doors(With Z-150 bracket). It is recommended to
be installed on small doors, drawers and cabinets
etc. With stainless steel housing, it is suitable for
o u t d o o r a p p l i c a t i o n s a n d s e v e r e w e a t h e r
conditions.
Features
Stainless steel casing
MOV provides spike and surge protection
Anti-residual magnetism function
For face mount on in-swing doors
Magnet
Armature
(Power On)
Anti-residual statement
Our electromagnet locks feature Anti-Residual Magnetism
(ARM) which ensures the door can be opened without any
resistance from left over magnetism imparted to the armature
plate
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-10003F Ver. F Published on 2011.08.25
Magnet
Armature
(Power Off)
10003F Micro Magnetic Lock
Surface Mount and Water Proof

Specifications

Operating Voltage: Single Voltage: 12 or 24VDC
Current Draw:
Single Voltage: 300mA/12VDC, 260mA/24VDC
(at temperature 20ºC)
Operating temperature: -10~55ºC (14~131º F)
Humidity: 0~95% non-condensing.
Holding force: Up to 300 lbs (136 Kg)
Dimensions:
Magnet:(L) 170, (W) 32, (D) 24 mm
Armature plate:(L) 152, (W) 32, (D) 10 mm
Zinc plated finish for magnet and armature plate
Epoxy potting compound: E87252 (S), UL94V-0
Net Weight: 1.5 Kg
Optional Brackets
With Z-bracket for in-swinging doors
Z-150
Warranty
The product is warranted against defects in material and
workmanship while used in normal service for a period of 5
years from the date of sale to the original client. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
