Husqvarna 4421-D Owner's Manual

2008 huv 4421 gasoline and diesel utility vehicles
Hide thumbs

Advertisement

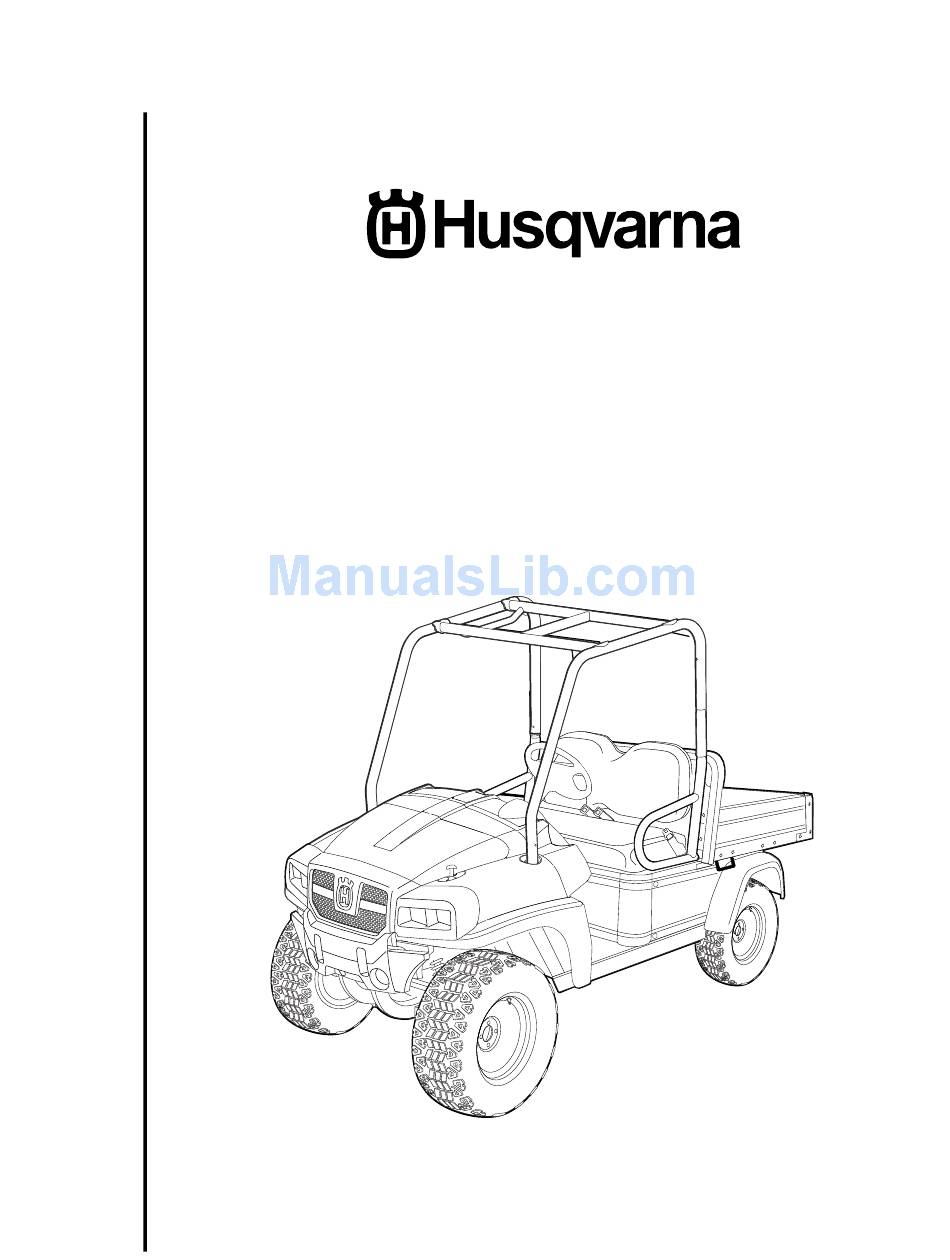

2008 HUV 4421 Owner's Manual
4421-G/GXP/GXL Gasoline and
4421-D/DXP/DXL Diesel
Utility Vehicles

Advertisement

loading

  Related Manuals for Husqvarna 4421-D

  Summary of Contents for Husqvarna 4421-D

  • Page 1 2008 HUV 4421 Owner’s Manual 4421-G/GXP/GXL Gasoline and 4421-D/DXP/DXL Diesel Utility Vehicles...
  • Page 3 Your authorized representative checked the vehicle before it was delivered to you and will provide you a copy of the completed vehicle warranty registration form. Husqvarna is not liable for errors in this manual or for incidental or consequential damages that result from the use of the material in this manual.
  • Page 4 We hope you will consider this owner’s manual a permanent part of your Husqvarna vehicle. If you sell the vehicle, please include the manual so that the next owner will have the important operating, safety, and maintenance information it contains.
  • Page 5: Table Of Contents

    TABLE OF CONTENTS Safety Decal and Feature Identification ........................5 Practice Safety ..............................10 Proposition 65 – State of California ........................10 Safety Details ..............................11 General Warnings............................... 12 General Information ............................14 Model Identification............................. 14 Controls and Indicators ............................15 Roll-Over Protective Structure and Seat Belts.......................
  • Page 6 Vehicle Specifications ............................56 Warranties................................59 Page 4 2008 HUV 4421 Owner’s Manual...
  • Page 7: Safety Decal And Feature Identification

    Safety Decal and Feature Identification SAFETY DECAL AND FEATURE IDENTIFICATION The following pages contain safety decal and feature identification information. For detailed information on specific features, read the appropriate section in this manual. 2008 HUV 4421 Owner’s Manual Page 5...
  • Page 8 Safety Decal and Feature Identification ALL HUV 4421 TWO PASSENGER MODELS Decal, Gasoline Fuel Warning (at fuel fill or on Decal, Diesel Fuel Warning (on frame, near fuel 101547601 102459201 frame, near fuel tank) tank) Decal, Winch Safety Warning (on vehicle body, Decal, Rotating/Hot Parts Warning (on frame near 102231601 102459501...
  • Page 9 Safety Decal and Feature Identification ALL HUV 4421 TWO PASSENGER MODELS Decal, Trailer Hitch Tongue Weight Notice (on 1011553 102884401 Decal, Rollover Warning (on instrument panel) trailer/receiver hitch) Decal, Crush Area Warning (behind seat, near 101609401 102961201 Decal, ROPS Warning (on ROPS) cargo bed) 102224001 Decal, Rotating Parts Warning (on frame)
  • Page 10 Safety Decal and Feature Identification ALL HUV 4421 FOUR PASSENGER MODELS Decal, Gasoline Fuel Warning (at fuel fill or on Decal, Ground Warning (on vehicle frame, near 101547601 102459101 frame, near fuel tank) battery) Decal, Diesel Fuel Warning (on frame, near fuel 102224001 Decal, Rotating Parts Warning (on frame) 102459201...
  • Page 11 Safety Decal and Feature Identification ALL HUV 4421 FOUR PASSENGER MODELS Decal, Trailer Hitch Tongue Weight Notice (on 1011553 102884401 Decal, Rollover Warning (on instrument panel) trailer/receiver hitch) Decal, Crush Area Warning (behind seat, near Decal, Falling Off Warning (behind and below front 101609401 102889201 cargo bed)
  • Page 12: Practice Safety

    Practice Safety PRACTICE SAFETY Figure 1 Practice Safety Safety signs like you see above may at first seem shocking, but their impact is mild compared with the reality of severe personal injury. Your safety and satisfaction are of the utmost importance to us. That is why before operating the vehicle, we urge you to review the information in this manual.
  • Page 13: Safety Details

    Safety Details SAFETY DETAILS WARNING • This owner’s manual should be read completely before attempting to drive or service the vehicle. Failure to follow the instructions in this manual could result in property damage, severe personal injury, or death. It is important to note that some vital statements throughout this manual and on the decals affixed to the vehicle are preceded by the words DANGER, WARNING, or CAUTION.
  • Page 14: General Warnings

    General Warnings (Viewed from driver side of vehicle) 1. Remove negative battery cable. 2. Remove positive battery cable. Connect battery cables in reverse order. Figure 2 Battery Cable Removal GENERAL WARNINGS The following safety statements must be heeded whenever the vehicle is being operated, repaired, or serviced. See Safety Decal and Feature Identification on page 5.
  • Page 15 General Warnings WARNING • Do not leave children unattended on vehicle. • Children requiring a child safety seat must not ride on the vehicle. Comply with state and local laws pertaining to child safety. • The driver and passenger must be restrained at all times with the seat belts provided to help prevent injury in the event of sudden braking, collision, or roll-over.
  • Page 16: General Information

    Figure 3 All-wheel Drive Warning GENERAL INFORMATION This manual includes operating procedures, maintenance, and regular servicing information for all gasoline and diesel HUV 4421-G and HUV 4421-D vehicles. All operating procedures, maintenance, and regular servicing are identical unless otherwise noted. MODEL IDENTIFICATION The serial number of each vehicle is printed on a bar code decal mounted on the frame above the brake pedal (Example: RC0601-123456) (Figure 4).
  • Page 17: Controls And Indicators

    Controls and Indicators Figure 4 Serial Number CONTROLS AND INDICATORS See General Warnings on page 12. WARNING • Before allowing anyone to drive the vehicle, make sure the driver is familiar with all controls and operating procedures. • Do not tamper with the high idle speed setting on the diesel vehicle. Doing so will void the warranty, as well as damage the engine and other components, and could result in property damage, personal injury, or death due to unsafe speeds.
  • Page 18 Controls and Indicators Figure 5 Instrument Panel – Gasoline Vehicles Figure 6 Instrument Panel – Diesel Vehicles Page 16 2008 HUV 4421 Owner’s Manual...
  • Page 19 Controls and Indicators KEY SWITCH – GASOLINE VEHICLES The key switch (7) is mounted on the instrument panel to the right of the steering column (Figure 5). It has three positions: OFF, ON, and START. To start the vehicle, place the Forward/Reverse handle in the NEUTRAL position and turn the key to the START position, and hold it there until the engine starts.
  • Page 20 Controls and Indicators BRAKE PEDAL The brake pedal (2) is located to the immediate left of the accelerator pedal (Figure 5 and Figure 6). To slow or stop the vehicle, press the brake pedal. PARK BRAKE The park brake pedal (3) is located to the left of the brake pedal (Figure 5 and Figure 6). To engage the park brake, first apply pressure to the brake pedal, then firmly press the park brake pedal until it latches into place.
  • Page 21 Controls and Indicators 12-VOLT ACCESSORY OUTLET The 12-volt accessory outlet (11) is located to the right of the key switch (Figure 5 and Figure 6). It provides a constant 12VDC with the key switch in the ON or OFF position. See following NOTE. NOTE: Extended use of this accessory outlet can cause the battery to become heavily discharged.
  • Page 22: Roll-Over Protective Structure And Seat Belts

    See following WARNING. WARNING • The ROPS must be properly installed before operating the vehicle. Husqvarna strongly urges that the vehicle’s occupants be properly restrained at all times with the seat belts provided. Pregnant woman: Consult your doctor for specific recommendations. The safety belt should be worn securely and as low as possible over the hips and not on the waist.
  • Page 23: Seat Latch And Adjustment

    Seat Latch and Adjustment WARNING • Do not operate the vehicle with the ROPS removed. Doing so could result in property damage, personal injury, or death. • Do not remove or modify any component of the ROPS structure. Doing so will result in voiding the ROPS certification and could weaken the ROPS, resulting in serious injury or death.
  • Page 24: Pre-Operation And Daily Safety Checklist

    Pre-Operation and Daily Safety Checklist WARNING • Do not adjust the driver-side seat while the vehicle is in motion. To adjust the passenger-side seat Remove the seat from the vehicle. Remove the four bolts and washers from the bottom of the seat mounting plate. Align the mounting plate holes with holes in the seat to achieve the desired seat position.
  • Page 25: Driving Instructions

    Driving Instructions PERFORMANCE INSPECTION After you have familiarized yourself with the vehicle controls and have read and understood the driving instructions, take the vehicle for a test drive. Use the following list, in addition to the Pre-Operation and Daily Safety Checklist, as a guide to inspect the vehicle daily for proper operation.
  • Page 26 Driving Instructions WARNING • Stop the vehicle before shifting the Forward/Reverse handle. Engine must be at idle before shifting the Forward/Reverse handle. Failure to do so may result in injury to inattentive passengers and (or) damage to the vehicle. • To help avoid being struck, do not stand in front of or behind the vehicle. •...
  • Page 27 Driving Instructions 8.1. Gasoline vehicles: Turn the key to the START position and hold it there until the engine starts. Activate the choke as necessary. If the engine does not start after 10-15 seconds, release the key and repeat the procedure.
  • Page 28: Bed Latch And Prop Rod

    Bed Latch and Prop Rod STOPPING THE VEHICLE To stop the vehicle, release the accelerator pedal and press the brake pedal until the vehicle comes to a complete stop. See following WARNING and CAUTION. WARNING • Driving through water may affect the brakes. After driving through water, check effectiveness of the brakes by gently pressing the brake pedal.
  • Page 29: Loading And Unloading Cargo

    Loading and Unloading Cargo Figure 9 Bed Latch Figure 10 Prop Rod LOADING AND UNLOADING CARGO WARNING • Firmly engage park brake before loading vehicle. • Do not allow riders in the cargo bed. • Reduce vehicle load and speed when driving up or down slopes or on uneven terrain. •...
  • Page 30: Vehicle Load Capacities

    Vehicle Load Capacities VEHICLE LOAD CAPACITIES Maximum Occupant Capacity The maximum occupant capacity is the maximum allowable weight for occupants (operator and passengers) to operate the vehicle safely. Gross Trailer Weight Gross trailer weight is the combination of the trailer weight and the trailer load weight. Maximum Payload Capacity The maximum payload capacity is the maximum amount of load that the vehicle can haul in the cargo bed and/or tow in a trailer.
  • Page 31: Towing With The Vehicle

    Towing with the Vehicle Figure 11 Vehicle Load Capacity – Two-Passenger Figure 12 Vehicle Load Capacity – Four-Passenger Vehicles Vehicles TOWING WITH THE VEHICLE WARNING • Do not tow a vehicle or trailer on public streets or highways. • Normal vehicle operating speed should be reduced when towing. •...
  • Page 32: Storage

    Storage WARNING • Avoid stopping on a hill when towing. If you must stop on a hill, avoid sudden starts, or rolling backwards and stopping suddenly. Failure to heed this warning could cause the vehicle to overturn, possibly resulting in severe personal injury. •...
  • Page 33 4.3. Disconnect the fuel vent line from the fuel tank vent nipple (Figure 33). 4.4. Plug the fuel tank vent nipple so that it is air tight. Husqvarna recommends using a slip-on vinyl cap. Remove both spark plugs, and pour 1/2 ounce (14.2 mL) of SAE 10 weight oil through each of the two spark plug holes.
  • Page 34: Maintenance

    Maintenance Disconnect the battery cables, negative (–) cable first. See WARNING “To avoid unintentionally starting...” in General Warnings on page 12. The battery should be clean and free of corrosion. Wash the battery top and terminals with a solution of baking soda and water (1 cup (237 mL) baking soda per 1 gallon (3.8 L) of water).
  • Page 35: Periodic Service Schedule

    Periodic Service Schedule WARNING • If any problems are found during scheduled inspection or service, do not operate vehicle until repairs are made. Failure to make necessary repairs could result in fire, property damage, severe personal injury, or death. • Do not wear loose clothing or jewelry such as rings, watches, chains, etc., when servicing the vehicle. •...
  • Page 36 Periodic Service Schedule PERIODIC SERVICE SCHEDULE REGULAR INTERVAL SERVICE See Pre-Operation and Daily Safety Pre-Operation and Daily Safety Checklist Checklist on page 22. Daily service by owner Performance Inspection See Performance Inspection on page 23. Check engine oil level; add if necessary. See Engine Oil Level Check on page 39.
  • Page 37 Periodic Service Schedule PERIODIC SERVICE SCHEDULE REGULAR INTERVAL SERVICE appropriate maintenance and service manual. Check for leaks around gaskets, fill plugs, etc. Kawasaki gasoline engines: Adjust valve clearance. See Kawasaki FH680D Service Manual. Gasoline vehicles: Inspect, clean, and gap spark plug; replace if necessary. See authorized dealer or trained technician for Engine service.
  • Page 38: Periodic Lubrication Schedule

    Periodic Lubrication Schedule PERIODIC LUBRICATION SCHEDULE PERIODIC LUBRICATION SCHEDULE LUBRICATION REGULAR INTERVAL SERVICE RECOMMENDED LUBRICANT POINTS Gasoline vehicle: Kawasaki engine- First change 10 hours Gasoline (Kawasaki engine) vehicles: 1 Diesel vehicle: First change qt. and 19 oz (1.5L) with filter 50 hours Change engine oil and oil filter Diesel vehicles: 3 qt.
  • Page 39 Periodic Lubrication Schedule Figure 14 Lubrication Points – Gasoline Vehicles Figure 15 Lubrication Points – Diesel Vehicles 2008 HUV 4421 Owner’s Manual Page 37...
  • Page 40: Brake Fluid Reservoir

    Brake Fluid Reservoir BRAKE FLUID RESERVOIR 1. Full Level 2. Safe Level 3. Low Level Figure 16 Brake Fluid and Coolant Access (diesel vehicle Figure 17 Brake Fluid Reservoir shown) The brake fluid reservoir (1) is located under the hood (Figure 16). Raise the hood to check the brake fluid level. During the brake fluid level inspection, also inspect the following: •...
  • Page 41: Engine Oil

    Engine Oil ENGINE OIL Even though the low oil warning light on the instrument panel should illuminate if the oil level becomes low, the engine oil level should be checked daily. The vehicle should be on a level surface when the oil is checked. Do not overfill the engine with oil.
  • Page 42 Engine Oil 1. Full Level 2. Safe Level 3. Low Level 1. Full Level 2. Safe Level 3. Low Level Figure 18 Engine Oil Level Check – Kawasaki Gasoline Figure 19 Engine Oil Level Check – Diesel Vehicles With Vehicles Passenger-side Dipstick ENGINE OIL AND FILTER CHANGE Engine oil and oil filter should be changed:...
  • Page 43 Engine Oil Use a socket or wrench to replace the oil drain plug (1) (Figure 20 or Figure 21). Turn the plug clockwise and tighten to 61 in-lb (6.9 N·m) for Kawasaki gas vehicles with plastic drain plugs, 14.5 ft-lb (20 N·m) for Kawasaki gas vehicles with metal drain plugs, or 31 ft-lb (42 Nm) for diesel vehicles.
  • Page 44 Engine Oil NOTE: An oil drip guard (1) can be used to prevent excess oil from dripping onto the engine base plate (Figure 23). Use an empty quart (one liter) container and cut the bottom off at an angle, then slide the open area of the container up and under the oil filter (2) before removal.
  • Page 45 Engine Oil Figure 25 Add Engine Oil – Gasoline Vehicles Figure 26 Add Engine Oil – Diesel Vehicles Engine Oil Filling Add engine oil; use a funnel or pour spout to direct the oil into the opening (Figure 25 or Figure 26). With filter change, the engine requires: –...
  • Page 46: Gearcase Lubrication

    Gearcase Lubrication OIL VISCOSITY Choose the viscosity according to the temperature as shown in the appropriate oil viscosity chart (Figure 27 or Figure 28). See following NOTE. NOTE: Use engine oil with API classification SJ for gasoline engines and CF for diesel engines. Using multi-grade oils (5W-20, 10W-30, and 10W-40) may increase oil consumption.
  • Page 47 Gearcase Lubrication Clean and install the drain plug (2) and washer before filling the front differential with new lubricant (Figure 29). Tighten the drain plug to 108 in-lb (12 N·m). Use a funnel when filling the front differential through the lubricant level indicator hole (1).
  • Page 48: Engine Coolant - Diesel Vehicles

    Engine Coolant – Diesel Vehicles Figure 31 Rear Differential Lubrication Level ENGINE COOLANT – DIESEL VEHICLES ENGINE COOLANT LEVEL CHECK The coolant reserve tank (2) is located under the hood on the passenger side (Figure 16). Raise the hood to check the coolant level before every operation.
  • Page 49: Air Intake System

    Remove the air filter cartridge (1). See following NOTE. NOTE: The air filter cartridge is specifically designed for this engine. It only fits into the canister one way. Use only the Husqvarna part (P/N 603 00 00-10) designed for this engine. Figure 32 Air Filter Cartridge Air Filter Installation Push the new air filter cartridge onto the nozzle inside the canister.
  • Page 50: Fueling Instructions

    Fueling Instructions FUELING INSTRUCTIONS See General Warnings on page 12. DANGER • Turn the key switch to the OFF position before fueling. • Do not pour fuel into the fuel tank when the engine is hot or while it is running. •...
  • Page 51 Fueling Instructions Biodiesel is an excellent medium for microbial growth and contamination. Microbial contamination can cause corrosion of the fuel system and prematurely plugged fuel filters. See following NOTE. NOTE: Use of biodiesel may result in premature failure of fuel system components. Kubota has documented problems such as plugged fuel filters and deteriorated fuel lines during testing of biodiesel.
  • Page 52: Battery

    Battery WARNING • Clean up spilled fuel. Keep sparks and flames away from the vehicle and service area. Failure to heed this warning could result in an explosion or fire, resulting in severe personal injury or death. Close the valve by rotating it counterclockwise until the valve is firmly sealed. To resupply the filter with fuel, turn the key switch to the ON position for 10 seconds.
  • Page 53 Battery DANGER – Eyes: Flush with water for 15 minutes. Call a physician immediately. • Tools, wires, and metal objects can cause sparks when shorted across a battery. WARNING • Wear safety glasses or approved eye protection when servicing the vehicle. •...
  • Page 54: Using A Booster Battery (Jump Starting)

    Using A Booster Battery (Jump Starting) WARNING • Wear safety glasses or approved eye protection when servicing the vehicle. Wear a full face shield and rubber gloves when working on or near batteries. Carefully check the electrolyte level and add distilled water if necessary. Do not fill the battery cells above the designated fill line.
  • Page 55: Cleaning The Vehicle

    Cleaning the Vehicle CAUTION • The alternator can be damaged if the following actions occur: – Engine is operated with battery cables disconnected. – Booster cables are connected wrong. Figure 38 Jump Starting CLEANING THE VEHICLE Each vehicle is equipped with hand wash-washable front and rear bodies. The vehicle has a powder-coated steel cargo bed (or optional aluminum flat bed).
  • Page 56: Accessories

    Accessories ACCESSORIES There is a complete line of accessory equipment available from our dealers/distributors. Care should be taken that these accessories are properly installed by trained technicians and that they are used in the manner for which they were designed. See following WARNING and CAUTION. WARNING •...
  • Page 57: Subsequent Owner Registration

    In the event a vehicle is bought as a used vehicle, we strongly urge the new owner to register the vehicle with Husqvarna. This will enable us to contact you if the need arises. Please send your name, address, and serial number of the vehicle to Husqvarna, 7349 Statesville Rd., Charlotte, NC 28269, Attention: Vehicle Registration.
  • Page 58: Vehicle Specifications

    Vehicle Specifications VEHICLE SPECIFICATIONS HUV 4421-G; HUV 4421-D; SPECIFICATIONS HUV 4421- HUV 4421- 4421- 4421-GXL POWER SOURCE GASOLINE DIESEL GASOLINE DIESEL Engine: (Kawasaki) 4-cycle OHV, 675 cc, 23.0 maximum HP @3600 RPM (per • • SAE J 1940/1349), twin-cylinder, air-cooled, with pressure lubrication system Engine: 4-cycle OHV, 719 cc, 20.0 maximum HP @3600 RPM (per SAE J...
  • Page 59 Vehicle Specifications HUV 4421-G; HUV 4421-D; SPECIFICATIONS HUV 4421- HUV 4421- 4421- 4421-GXL Overall width: 58.5 in. (148.5 cm) without mirror 63.6 in. (161.5 cm) with mirror *Overall height (with ROPS): with mud tires 82.3 in. (209 cm) 80.3 in. (203.8 cm)
  • Page 60 Vehicle Specifications HUV 4421-G; HUV 4421-D; SPECIFICATIONS HUV 4421- HUV 4421- 4421- 4421-GXL Rear differential: Mobil 424, Exxon Hydraul 560, or Esso Hydraul 56 lubricant 20 oz. (600 mL) Transmission: Mobil 424, Exxon Hydraul 560, or Esso Hydraul 56 lubricant 20 oz.
  • Page 61 Portable Refreshment Center, and all other original equipment options and accessories supplied by Husqvarna are warranted with respect to parts and labor against defects in material and workmanship for a period of one year or 1000 hours of operation, whichever first occurs, from the date of purchase.
  • Page 62 REPAIR OF THE DEFECTIVE VEHICLE OR COMPONENT THEREOF IS THE SOLE REMEDY OF THE PURCHASER. HUSQVARNA MAKES NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND, AND NO REPRESENTATIVE, EMPLOYEE, OR DEALER OF HUSQVARNA HAS THE AUTHORITY TO MAKE OR IMPLY ANY REPRESENTATION, PROMISE OR AGREEMENT, WHICH IN ANY WAY VARIES THE TERMS OF THIS WARRANTY.
  • Page 63 - As the vehicle engine owner, you are responsible for the performance of the required maintenance listed in your owner’s manual. Husqvarna recommends that you retain all receipts covering maintenance on your vehicle engine, but Husqvarna cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
  • Page 64 Husqvarna will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part. *Husqvarna, its authorized dealers, or a service agency approved by Husqvarna.
  • Page 65 5. NO CONSEQUENTIAL DAMAGES: In no event shall Husqvarna be liable for any incidental or consequential damages including, but not limited to, loss related to property other than the vehicle, loss of use, loss of time, inconvenience, or any other economic loss. This warranty is applicable only where the California or U.S.
  • Page 68 Publication Part Number 603 00 46-24 Edition Code 0707C0608B...
