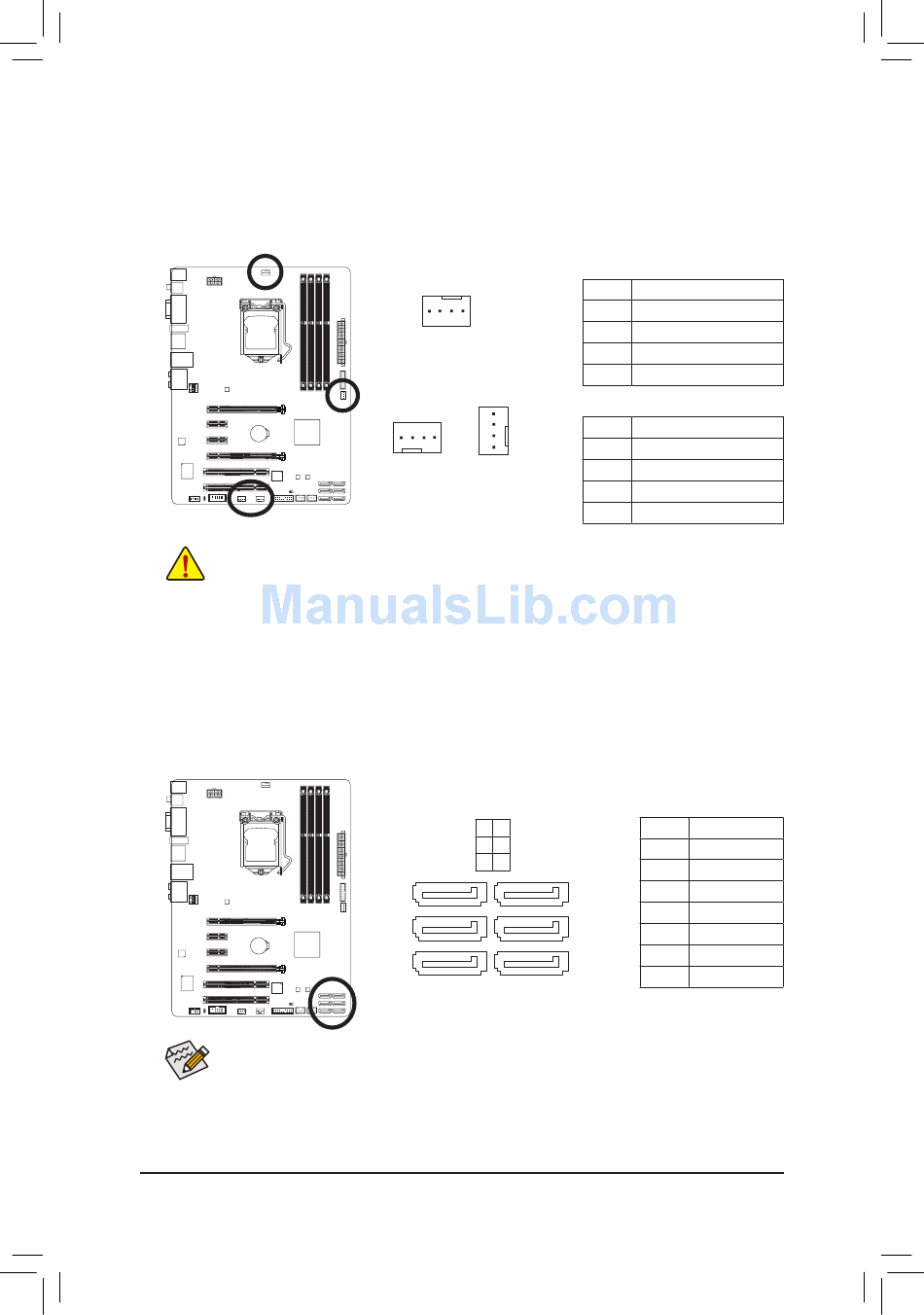

3/4) CPU_FAN/SYS_FAN1/SYS_FAN2/SYS_FAN3 (Fan Headers)
All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design.
When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is
the ground wire). The speed control function requires the use of a fan with fan speed control design. For
optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.
• Be sure to connect fan cables to the fan headers to prevent your CPU and system from overheat-
ing. Overheating may result in damage to the CPU or the system may hang.
• These fan headers are not configuration jumper blocks. Do not place a jumper cap on the headers.
5) SATA3 0/1/2/3/4/5 (SATA 6Gb/s Connectors)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s
standard. Each SATA connector supports a single SATA device. The Intel
RAID 5, and RAID 10. Refer to Chapter 3, "Configuring SATA Hard Drive(s)," for instructions on configuring a RAID
array.
• A RAID 0 or RAID 1 configuration requires at least two hard drives. If more than two hard drives
are to be used, the total number of hard drives must be an even number.
• A RAID 5 configuration requires at least three hard drives. (The total number of hard drives does
not have to be an even number.)
• A RAID 10 configuration requires four hard drives.
Hardware Installation
1
CPU_FAN
1
1
SYS_FAN1/2 SYS_FAN3
1 0
SATA3
3 2
5 4
1
1
1
- 24 -
CPU_FAN:
Pin No. Definition
1 GND
2 +12V
3 Sense
4 Speed Control
SYS_FAN1/2/3:
Pin No. Definition
1 GND
2 Speed Control
3 Sense
4 VCC
DEBUG DEBUG
PORT PORT
DEBUG DEBUG
PORT PORT
DEBUG DEBUG
PORT PORT
Z87 Chipset supports RAID 0, RAID 1,
®
Pin No. Definition
1 GND
2 TXP
3 TXN
7
4 GND
7
5 RXN
6 RXP
7
7 GND
