ENGLISH
Read this instruction booklet carefully before installing and
using the appliance. In this way, you will obtain the best possible
results and maximum operating safety.
Presentation

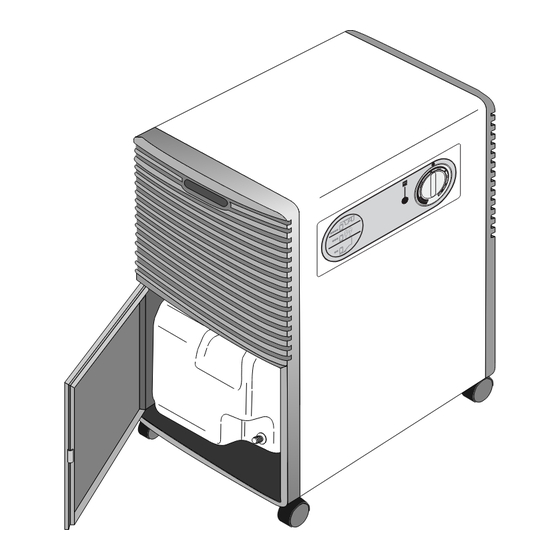

The Dehumidifier removes humidity from the air in the areas in which it is installed. The appliance
is compact and fitted with wheels and handles which facilitate its movement.
This appliance is recommended for all rooms in which excessive humidity is liable to build up, e.g.
kitchens, bathrooms, laundry rooms, cellars etc.
Experts have established that optimal atmospheric conditions, both for our physical health and the
preservation of furniture and other items, vary between 45% and 65% relative humidity. It is
therefore advisable to keep rooms within these values.
Electrical connection (U.K. only)
A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be
cut off from the mains lead, and an appropriate plug fitted, as below.
WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere
in the house as this could cause a shock hazard.
With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse.
If the plug is a moulded-on typer, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved
fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be based until a replacement fuse cover can be
obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base
of the plug.
B) If your appliance is not fitted with a plug, please follow the instructions provided below:
WARNING - THIS APPLIANCE MUST BE EARTHED
IMPORTANT
The wires in the mains lead are coloured in accordance
with the following code:
Green and yellow:
Earth
Blue:
Neutral
Brown:
Live

Technical characteristics

For this equipment's technical features, read the plate listing those features.
Dimensions (W x H x D)
10
As the colours of the wires in the mains lead may not
correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The green and yellow wire must be connected to the
terminal in the plug marked with the letter E or the earth
symbol
E
The blue wire must be connected to the terminal
marked with the letter N or coloured black.
L
N
The brown wire must be connected to the terminal
marked with the letter L or coloured red.
or coloured green or green and yellow.
400x560x300 mm
