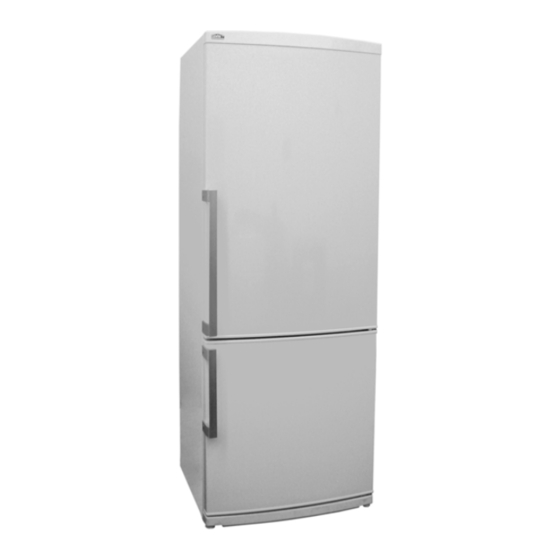

TWO-DOOR REFRIGERATOR
with BOTTOM FREEZER
Models FFBF240W
Thank you for purchasing our SUMMIT
product. This easy-to-use manual will
guide you in getting the best use of your
refrigerator.
Please record the model and serial
numbers, which are found on a label
inside the refrigerator.
IMPORTANT SAFEGUARDS
Staple your receipt to this manual. You will need it to obtain warranty service.
FFBF280W
User's Manual
_____________________________
Model number
_____________________________
Serial number
_____________________________
Date of purchase
FELIX STORCH, INC.
770 Garrison Avenue
Bronx, New York 10474
www.summitappliance.com
FFBF245SS
FFBF285SS
Advertisement
Table of Contents
Related Manuals for Summit FFBF240W
Summary of Contents for Summit FFBF240W
-
Page 1: Important Safeguards
TWO-DOOR REFRIGERATOR with BOTTOM FREEZER Models FFBF240W FFBF245SS FFBF280W FFBF285SS User's Manual Thank you for purchasing our SUMMIT _____________________________ product. This easy-to-use manual will Model number guide you in getting the best use of your _____________________________ refrigerator. Serial number... -
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS Read all of the instructions before using this appliance. If instructions are not followed, you may lose your right to free service during the warranty period. Please keep this manual in a safe place and pass it on to later users if applicable. - Page 3 14. This refrigerator should not be recessed or built into an enclosed cabinet. It is designed for freestanding installation only. See Installation instructions. 15. Do not operate your refrigerator in the presence of explosive fumes. 16. Do not allow children to play with the appliance, or to sit or stand on the appliance or on pull-out parts.
-
Page 4: Table Of Contents
Table of Contents Important Safeguards ................1 - 2 Parts and Features ..................4 Installation ....................5 - 8 Transporting your appliance ..............5 Setting up the appliance ................5 Location ................... 5 - 6 Electrical requirements ................6 Reversing the Door Swing ...............6 – 8 Before starting up the appliance ............8 Operation .................... -
Page 5: Parts And Features
Parts and Features 1. Front panel 10. Fast-freeze compartment 2. Interior light 11. Freezer fan 3. Thermostat knob 12. Freezer compartment 4. Movable shelves 13. Ventilation grille 5. Wine rack 14. Adjustable front feet 6. Defrost water drain channel 15. Adjustable door shelves 7. -
Page 6: Installation
Installation Transporting your appliance 1. The appliance should only be transported in the upright position. 2. The packaging as supplied must remain intact during transportation. 3. If the unit has been transported or carried in the horizontal position, it may only be plugged in after standing in the vertical position for 4 hours. -
Page 7: Electrical Requirements
The appliance should be located on a smooth surface. The two leveling legs at the front corners of the appliance can be adjusted as required. Leveling legs can be adjusted by turning them counter-clockwise to raise the refrigerator or clockwise to lower it. Correct adjustment of the feet avoids excessive vibration and noise. - Page 8 13. Reposition the plastic covers on top of the fresh food door on the opposite side. (11) 14. Unscrew and remove the middle hinge bushing from the fresh food door. (12) 15. Screw in and fix the new middle hinge bushing (supplied) to the other side. (13) 16.
-
Page 9: Before Starting Up The Appliance
20. Remove the plastic tap to the opposite side on the front bottom trim. (18) 21. Fit the front bottom trim to the bottom hinge and other feet. (19) 22. Rotate the top hinge 180. Unscrew the hinge pin and re-tighten it to the opposite side. -
Page 10: Refrigerator Compartment
The average temperature inside the refrigerator should be about 41F (5C). Choose the thermostat setting according to the desired temperature. You can stop operation of your appliance by adjusting the thermostat knob to the 0 position. Please note that there will be different temperatures in the cooling area. The coldest region is immediately above the vegetable crisper. -
Page 11: Freezer Compartment
Freezer compartment Freezing food: You can use the appliance for freezing fresh food as well as for storing pre- frozen food. Please refer to the recommendations given on the food package. Attention Do not freeze carbonated beverages, as the bottle may burst when the liquid is frozen. -
Page 12: Food Storage Information
Food Storage Information Fresh food When storing fresh food that is not prepackaged, be sure to wrap or store it in airtight and moisture-proof material unless otherwise noted. This will ensure proper shelf life and prevent the transfer of odors and tastes. ... -
Page 13: Examples Of Proper Food Storage
Examples of proper food storage White wine, beer and mineral water Chill before use. Bananas Do not store in refrigerator. Fish or organ meats Store in plastic bags only. Cheese Use airtight containers or plastic bags; for best results, take out of the refrigerator an hour before consumption. -
Page 14: Cleaning The Accessories
Cleaning the accessories Door shelves: Remove all food from the door shelves. Lift the cover of the shelf upwards and pull it off sideways. Remove the bottom of the door shelf by pushing it upwards. Water-collecting pan: Make sure that the pan at the back of the appliance is always clean. -
Page 15: If There Is A Power Failure
Replacing light bulb: If there is a power failure Try to avoid opening the doors during a power failure. Frozen food in the freezer compartment will not be affected if the power failure lasts shorter than the “Conservation Time from Failure (hours)” mentioned on the rating label. If the power failure lasts longer than this amount of time, then the food should be checked and either consumed immediately or cooked and then re-frozen. -
Page 16: Troubleshooting
Troubleshooting Not every malfunction is a case for our customer service. Very often, you can easily resolve the problem without requesting service. Before requesting service, please check the list below to see if the call can be avoided. Refrigerator does not operate ... -
Page 17: Limited Warranty
SUMMIT Appliances are manufactured to provide outstanding value, and your satisfaction is our goal on every product. All SUMMIT major appliances carry a one year limited warranty on both parts and labor. All refrigerators and freezers carry an additional four years on the compressor. Certain exclusions may apply. - Page 18 ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD: Summit is not responsible for the repair or replacement of any parts that Summit determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or act of God.
