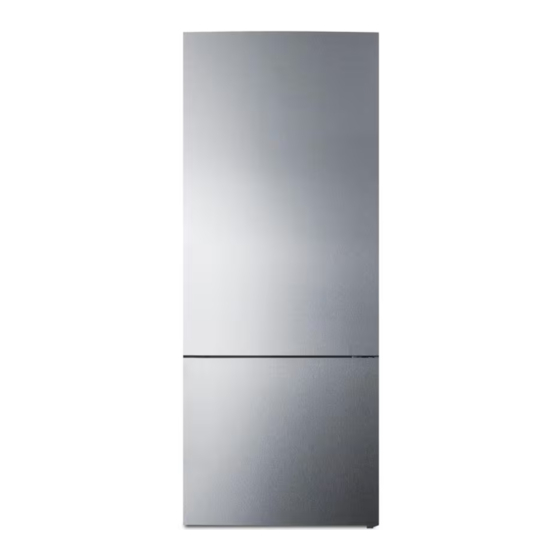

TWO-DOOR REFRIGERATOR WITH
BOTTOM FREEZER
Model: FFBF279SSX
User Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Write Model and Serial Numbers here:
Felix Storch, Inc.
An ISO 9001:2015 registered company
Model No.:
770 Garrison Ave
Bronx, New York 10474
Serial No.:
www.summitappliance.com
1
Advertisement
Table of Contents
Related Manuals for Summit FFBF279SSX
Summary of Contents for Summit FFBF279SSX
- Page 1 TWO-DOOR REFRIGERATOR WITH BOTTOM FREEZER Model: FFBF279SSX User Manual BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Write Model and Serial Numbers here: Felix Storch, Inc. An ISO 9001:2015 registered company Model No.: 770 Garrison Ave Bronx, New York 10474 Serial No.:...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Appliance Safety Important Safeguards Location of Parts Installing your Appliance 7-12 Locating your Appliance Leveling your Appliance Reversing the Door Swing 8-11 Accessories 11-12 Operating your Appliance 13-15 Control Panel Power °C and °F Refrigerator Compartment Temperature Freezer Compartment Temperature Super Cool Super Freeze... -
Page 3: Appliance Safety
APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure you and others. - Page 4 • Keep all packaging away from children to avoid risk of suffocation. • Protect children from being burned by touching the very hot compressor or at the rear bottom of appliance. • Do not place items on top of the appliance as this could cause injury should they fall off. •...
- Page 5 Avoid open flames and anything that creates a spark, Disconnect from the electrical power line, Air the room in which the appliance is located for several minutes, and Contact the Service Department for advice. • The more coolant there is in an appliance, the larger the room it should be installed in. In the event of a leakage, if the appliance is in a small room, there is the danger of combustible gases building up.
-
Page 6: Location Of Parts
LOCATION OF PARTS 1) Display panel 11) Lower freezer drawer 2) Cabinet 12) Adjustable feet 3) Air flow duct 13) Fridge door 4) Glass shelf 14) Upper rack 5) Crisper cover 15) Small rack 6) Fruit & Vegetable Crisper 16) Lower rack 7) Twistable ice tray 17) Fridge gasket 18) Freezer door... -
Page 7: Installing Your Appliance
INSTALLING YOUR APPLIANCE • For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. The surface should be strong enough to support a fully loaded refrigerator. •... -
Page 8: Reversing The Door Swing
Reversing the Door Swing CAUTION: When reversing the door, the appliance must not be connected to the power source. Ensure the appliance is not plugged in before reversing the door. The side at which the door opens can be changed from the right side (as supplied) to the left side, if desired. - Page 9 6. Loosen the self-tapping screw and remove the stop block and the door stopper. Install the replacement door stopper (left) provided (in the plastic bag) and left stop block to the left side, using the self-tapping screws. Keep the door stopper and right stop block for future use. 7.
- Page 10 10. Change the screw hole covers and screw on the middle cover plate from the left to the right (as shown below). 11. Carefully lay the refrigerator backward. Remove the adjustable feet (right). Remove three self- tapping screws from the lower hinge part (right). Loosen the lower hinge axis, then install it on the reverse hole site, and tighten it into position (change it into the left-hand part).
-
Page 11: Accessories
15. Carefully slot the upper door onto the middle hinge pin and hold the door in position. Move the upper door to an appropriate position, adjust the left upper hinge (provided in the plastic bag) and upper door, then fit the hinge pin into the hinge hole at the top and the door to secure the door in place. - Page 12 Freezer Chamber The freezer chamber is suitable for the longer-term storage of foods, which need to be frozen, such as meat and ice. CAUTION: Never close the freezer door while the drawer, installation bracket, or the ice tray are extended. This may damage the unit. Ensure that drink bottles are not left in the freezer for longer than necessary, as freezing liquid may cause the bottle to break.
-
Page 13: Operating Your Appliance
OPERATING YOUR APPLIANCE Control Panel We recommend that when you start your refrigerator for the first time, the temperature for the refrigerator is set to 39°F and the freezer to 0°F. If you want to change the temperature, follow the instructions below. -
Page 14: Freezer Compartment Temperature
Press the ZONE button until the Freezer icon appears. When the freezer is on, “Freezer” will be illuminated on the control panel. Press the TEMP button to select a temperature setting. If you have the temperature in Fahrenheit, the temperature settings will cycle from 7°F to -11°F. IT set in Celsius, the temperature settings will cycle from -14°C to -24°C, as shown below. -
Page 15: Open Door Alarm
Door Open Alarm If the fridge door is opened for longer than two minutes, the control panel will display “dr” and an alarm will sound 3x every minute for eight minutes. Close the door completely to turn off the alarm. Demo Mode •... -
Page 16: Cleaning And Care
CLEANING AND CARE CAUTION: The appliance must not be connected to the power source during cleaning as there is a danger of electrical shock. Before cleaning, turn the appliance off and unplug the unit. It is recommended the appliance (interior and exterior) should be cleaned regularly at least every two months. -
Page 17: Replacing The Led Light
Replacing the LED Light The LED light should only be replaced by a competent person. If the LED light is damaged, contact the customer service helpline for assistance. To replace the LED light, follow these steps: 1. Unplug the appliance. 2. -
Page 18: Troubleshooting
TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. Problem Possible Cause and Solution Check whether the power cord is plugged into the power outlet properly. Check whether the “Power”... -
Page 19: Disposal
DISPOSAL CAUTION: It is prohibited to dispose of this appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. Before disposal of the appliance •... -
Page 20: Limited Warranty
LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company.
