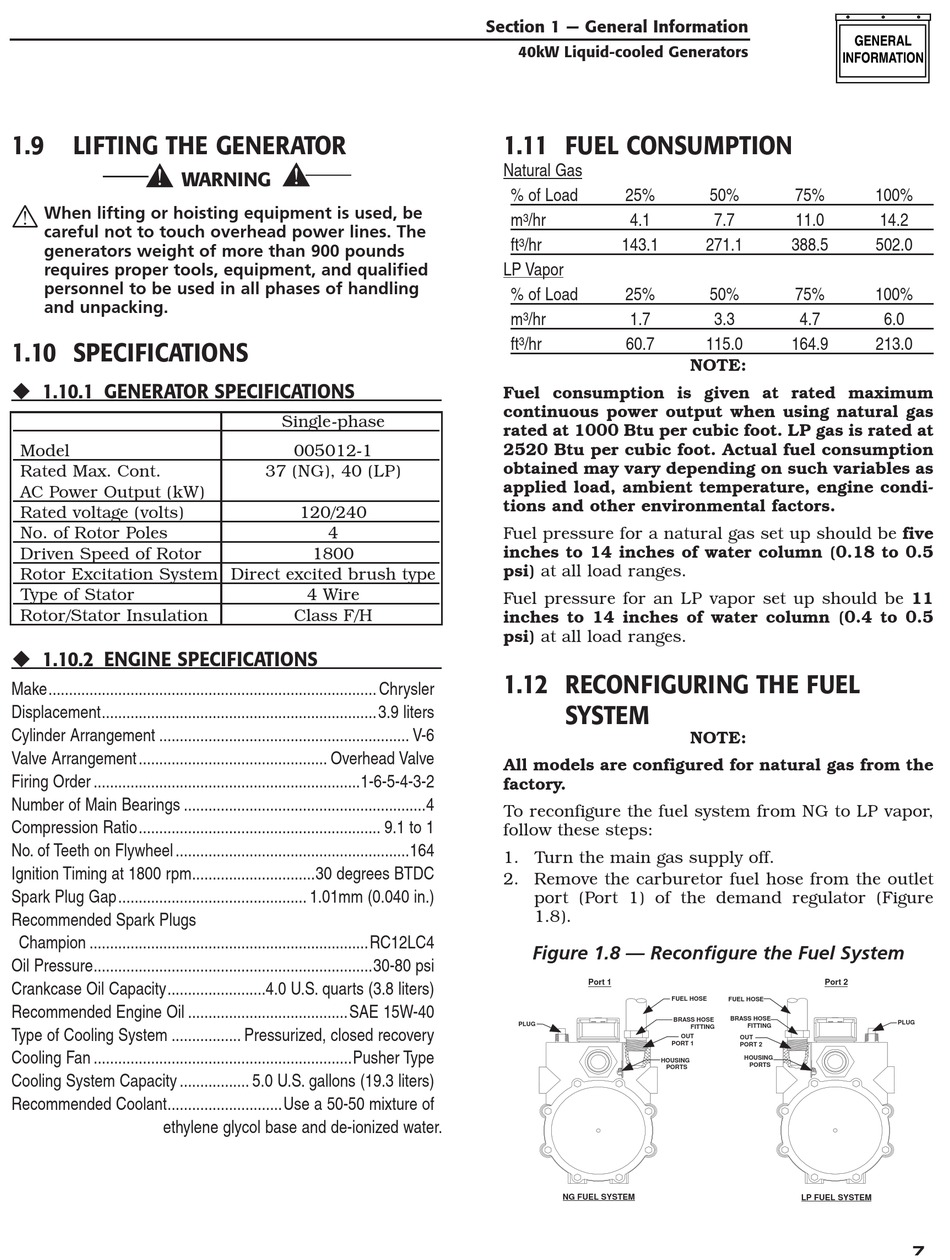

1.9

LIFTING THE GENERATOR


When lifting or hoisting equipment is used, be
careful not to touch overhead power lines. The
generators weight of more than 900 pounds
requires proper tools, equipment, and qualified
personnel to be used in all phases of handling
and unpacking.

1.10 SPECIFICATIONS

1.10.1 GENERATOR SPECIFICATIONS
Model
Rated Max. Cont.
AC Power Output (kW)
Rated voltage (volts)
No. of Rotor Poles
Driven Speed of Rotor
Rotor Excitation System Direct excited brush type
Type of Stator
Rotor/Stator Insulation

1.10.2 ENGINE SPECIFICATIONS

Make ................................................................................ Chrysler
Displacement ...................................................................3.9 liters
Cylinder Arrangement ............................................................. V-6
Valve Arrangement .............................................. Overhead Valve
Firing Order .................................................................1-6-5-4-3-2
Number of Main Bearings ...........................................................4
Compression Ratio ........................................................... 9.1 to 1
No. of Teeth on Flywheel .........................................................164
Ignition Timing at 1800 rpm ..............................30 degrees BTDC
Spark Plug Gap .............................................. 1.01mm (0.040 in.)
Recommended Spark Plugs
Champion ....................................................................RC12LC4
Oil Pressure ....................................................................30-80 psi
Crankcase Oil Capacity ........................4.0 U.S. quarts (3.8 liters)
Recommended Engine Oil .......................................SAE 15W-40
Type of Cooling System ................. Pressurized, closed recovery
Cooling Fan ...............................................................Pusher Type
Cooling System Capacity ................. 5.0 U.S. gallons (19.3 liters)
Recommended Coolant ............................ Use a 50-50 mixture of
ethylene glycol base and de-ionized water.
Single-phase
005012-1
37 (NG), 40 (LP)
120/240
4
1800
4 Wire
Class F/H
Section 1 — General Information
40kW Liquid-cooled Generators

1.11 FUEL CONSUMPTION

Natural Gas
% of Load 25%
m /hr 4.1
3
ft /hr 143.1
3
LP Vapor
% of Load 25%
m 3 /hr 1.7
ft 3 /hr 60.7
Fuel consumption is given at rated maximum
continuous power output when using natural gas
rated at 1000 Btu per cubic foot. LP gas is rated at
2520 Btu per cubic foot. Actual fuel consumption
obtained may vary depending on such variables as
applied load, ambient temperature, engine condi-
tions and other environmental factors.
Fuel pressure for a natural gas set up should be five
inches to 14 inches of water column (0.18 to 0.5
psi) at all load ranges.
Fuel pressure for an LP vapor set up should be 11
inches to 14 inches of water column (0.4 to 0.5
psi) at all load ranges.
1.12 RECONFIGURING THE FUEL
SYSTEM
All models are configured for natural gas from the
factory.
To reconfigure the fuel system from NG to LP vapor,
follow these steps:
1. Turn the main gas supply off.
2. Remove the carburetor fuel hose from the outlet
port (Port 1) of the demand regulator (Figure
1.8).
Figure 1.8 — Reconfigure the Fuel System
Port 1
PLUG
HOUSING
NG FUEL SYSTEM
50% 75%
7.7 11.0
271.1 388.5
50% 75%
3.3 4.7
115.0 164.9
NOTE:
NOTE:
Port 2
FUEL HOSE
FUEL HOSE
BRASS HOSE
BRASS HOSE
FITTING
FITTING
OUT
OUT
PORT 1
PORT 2
HOUSING
PORTS
PORTS
LP FUEL SYSTEM
100%
14.2
502.0
100%
6.0
213.0
PLUG
