Tripp Lite SR45UBMD Owner's Manual Addendum

SmartRack

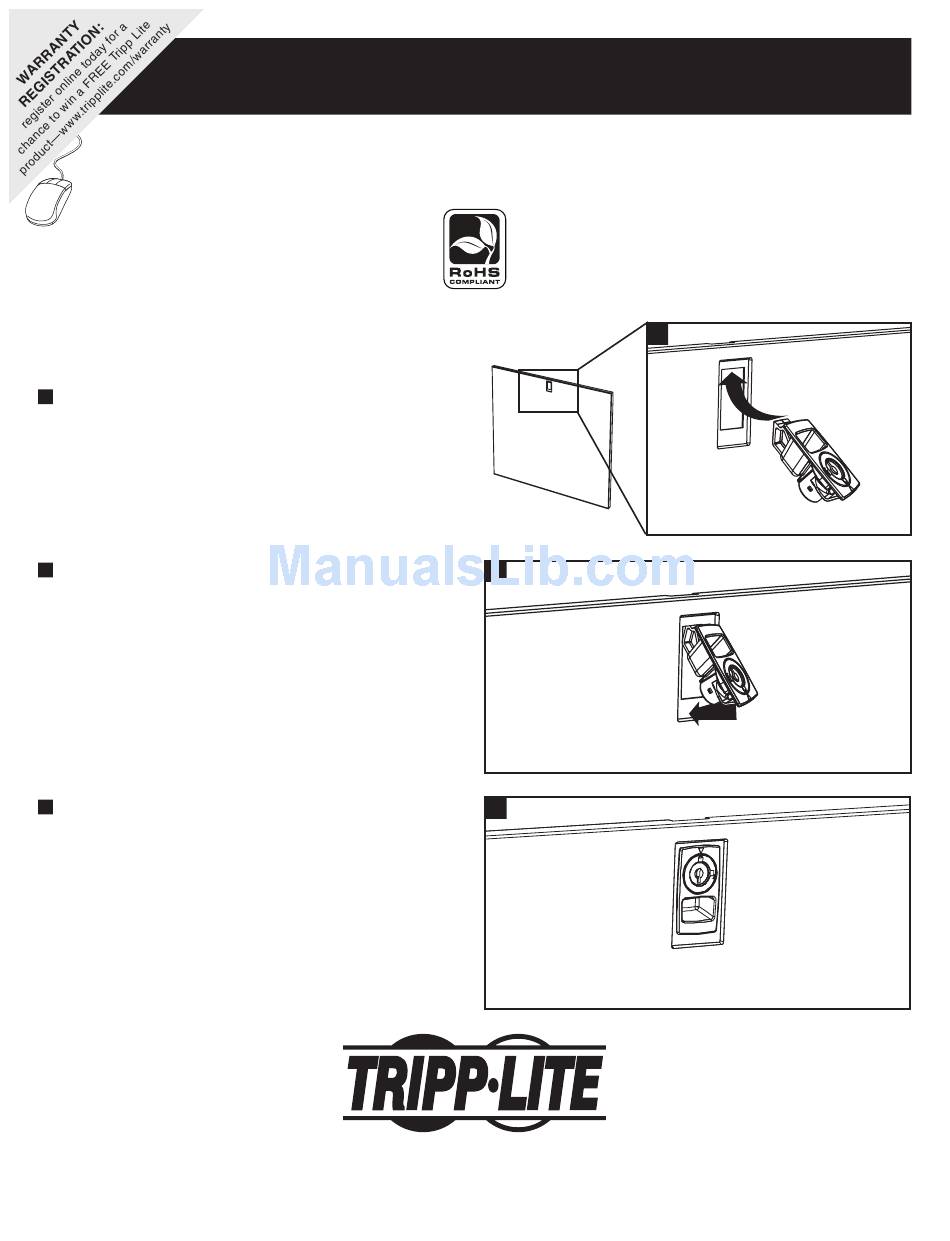

Important: Before installing the side panels, you must
install a latch (included) in each side panel.
Working from the outer surface of the side panel, insert
1
the upper portion of the latch into the side panel cutout as
shown.
Push the lower portion of the latch into the side panel
2
cutout as shown.
Snap the latch into place. The latch should be flush with
3
the outer surface of the side panel. Repeat the process for
each side panel.
Note: To install the side panels, follow the instructions in
the rack enclosure owner's manual.
Owner's Manual Addendum

Side Panel Latch Installation

™
