AM2CPU Board Specifications

AM2CPU Board Specifications AM2CPU Board Specifications AM2CPU Board Specifications AM2CPU Board Specifications
Platform: 7.8-in x 5.65-in (19.8 cm x 14.4 cm)
CPU: 940-Pin AM2 Socket Supporting AMD Athlon
Sempron
Supports AMD's Cool 'n' Quiet
FSB: Hyper Transport 1000 MHz
Memory: 4 x DDRII DIMM Slots: DDRII_1, DDRII_2, DDRII_3, and DDRII_4
Support DDRII800 / 667 / 533, Max. Total Memory Size 8GB
Dual Channel Memory Technology Support
NOTE
AM2CPU Board provides four 240-pin DDRII (Double Data Rate) DIMM slots, and supports Dual
Channel Memory Technology. For dual channel configuration, you always need to install identi-
cal (the same brand, speed, size and chip-type) DDRII DIMM pair in the slots of the same color.
In other words, you have to install identical DDRII DIMM pair in Dual Channel A (DDRII_1 and
DDRII_2; Yellow slots) or identical DDRII DIMM pair in Dual Channel B (DDRII_3 and DDRII_4;
Orange slots), so that Dual Channel Memory Technology can be activated. It also allows you to
install four DDRII DIMMs for dual channel configuration, and please install identical DDRII
DIMMs in all four slots. Please note that only the DRAM configuration according to the Allowed
DRAM Configurations Table below is workable.
that is not listed on
the Allowed DRAM Configurations Table.

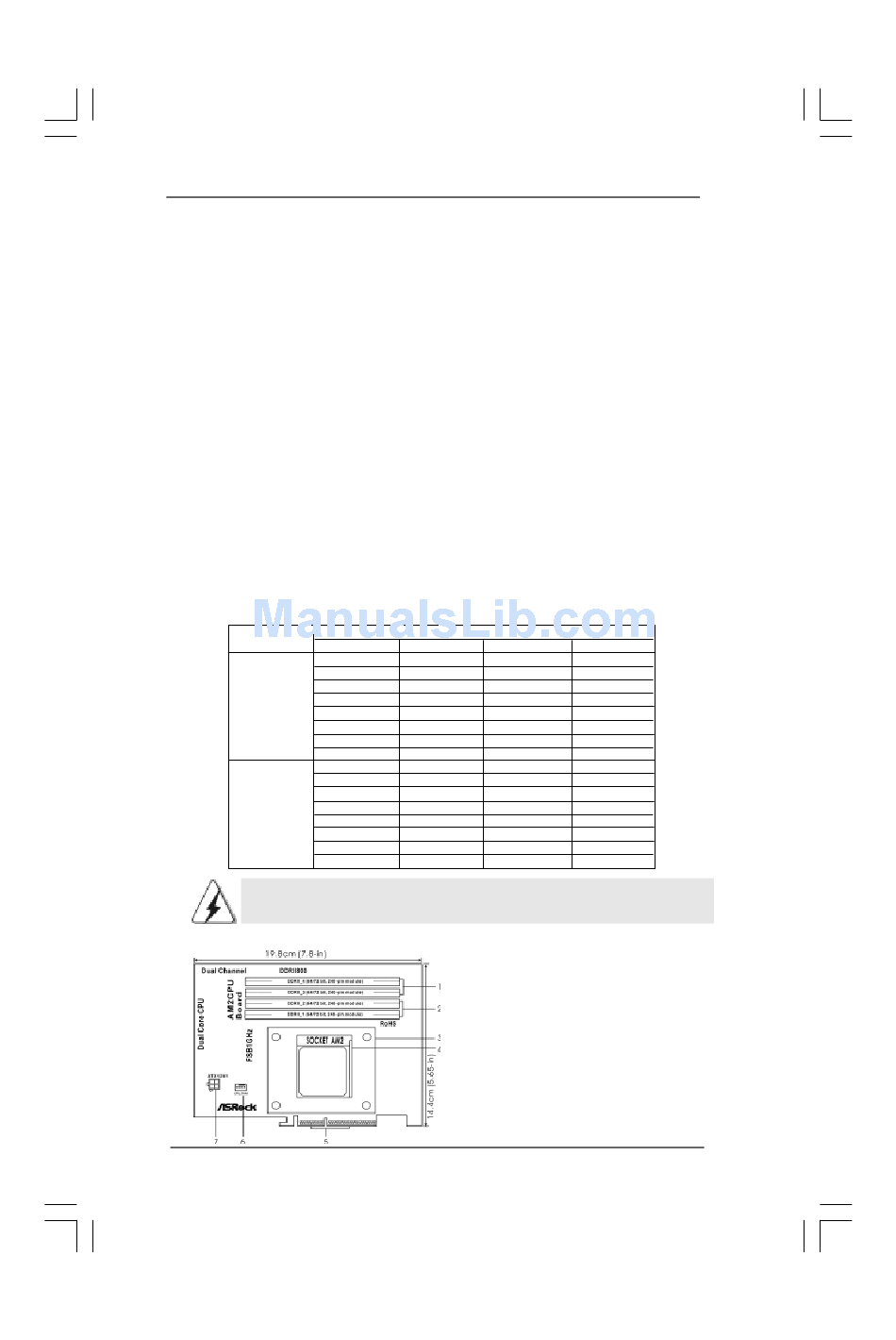

Allowed DRAM Configurations

Data Bus
DDRII_1 (Yellow) DDRII_2 (Yellow)
64 bit Single Side
(single channel) Double Side
Empty
Empty
Single Side
Single Side
Double Side
Double Side
128bit Single Side
(dual channel) Double Side
Empty
Empty
Single Side
Single Side
Double Side
Double Side
It is not allowed to install DDR DIMMs into DDRII slots; otherwise,
this motherboard and DIMMs may be damaged.
TM Processors
TM Technology
Do not make any DRAM configuration
DIMM Configuration
DDRII_3 (Orange) DDRII_4 (Orange)
N/A Empty
N/A Empty
N/A Single Side
N/A Double Side
N/A Single Side
N/A Double Side
N/A Single Side
N/A Double Side
Single Side Empty
Double Side Empty
Empty Single Side
Empty Double Side
Single Side Single Side
Single Side Double Side
Double Side Single Side
Double Side Double Side

AM2CPU Board Layout

AM2CPU Board Layout AM2CPU Board Layout AM2CPU Board Layout AM2CPU Board Layout
1 2 x 240-pin DDRII DIMM Slots
(DDRII_3-4, Dual Channel B, Orange Slots)
2 2 x 240-pin DDRII DIMM Slots
(DDRII_1-2, Dual Channel A, Yellow Slots)
3 CPU Heatsink Retention Module
4 940-Pin AM2 CPU Socket
5 Golden Finger
6 CPU Fan Connector (CPU_FAN1)
7 ATX 12V Power Connector (ATX12V1)
