Connecting the adapter to an in-flight power system

To use the power adapter with a 4-pin in-flight power receptacle, follow these
steps:
1. Remove the automobile power receptacle adapter from the large end of the
power cable to reveal the 4-pin airline connector (see Figure 2).

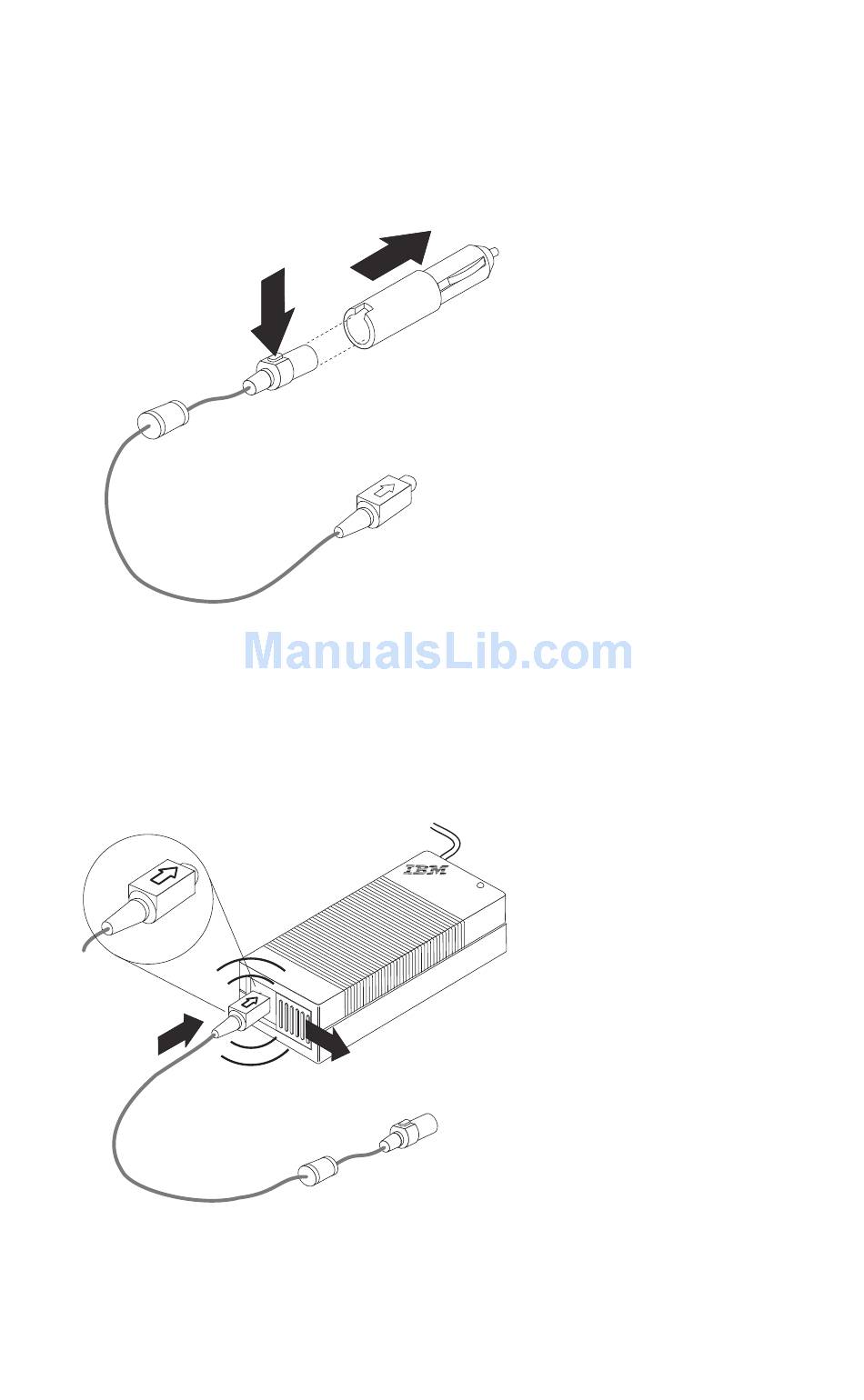

Figure 2. Removing the automobile power receptacle adapter
2. Slide the cover on the end of the adapter box to expose the DC power
connector. Plug the smaller end of the DC power cord here (see Figure 3).
The DC power cord is fully inserted when a click is heard.
2
Figure 3. Exposing the DC power connector
2
1
1
Installation and user's guide
3
