Fully automatic espresso maker
Hide thumbs Also See for CG6600:
Table of Contents

Advertisement

Kaffee-Espresso-Vollautomat
d
Fully Automatic Espresso Maker
g
Kaffe-espresso helautomat
s
Täysin automaattinen espressokahviasema
q
Zcela automatický automat na espresso
c
Automat do kawy espresso
o
Kávéautomata
h
Êîôåâàðêà-àâòîìàò
u
Operating instructions
Ðóêîâîäñòâî ïî ýêñïëóàòàöèè
CG 6600
Gebrauchsanweisung
Bruksanvisning
Käyttöohje
Návod k použití
Instrukcja obs³ugi
Használati útmutató

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CG6600 and is the answer not in the manual?

Questions and answers

Summary of Contents for AEG Electrolux CG6600

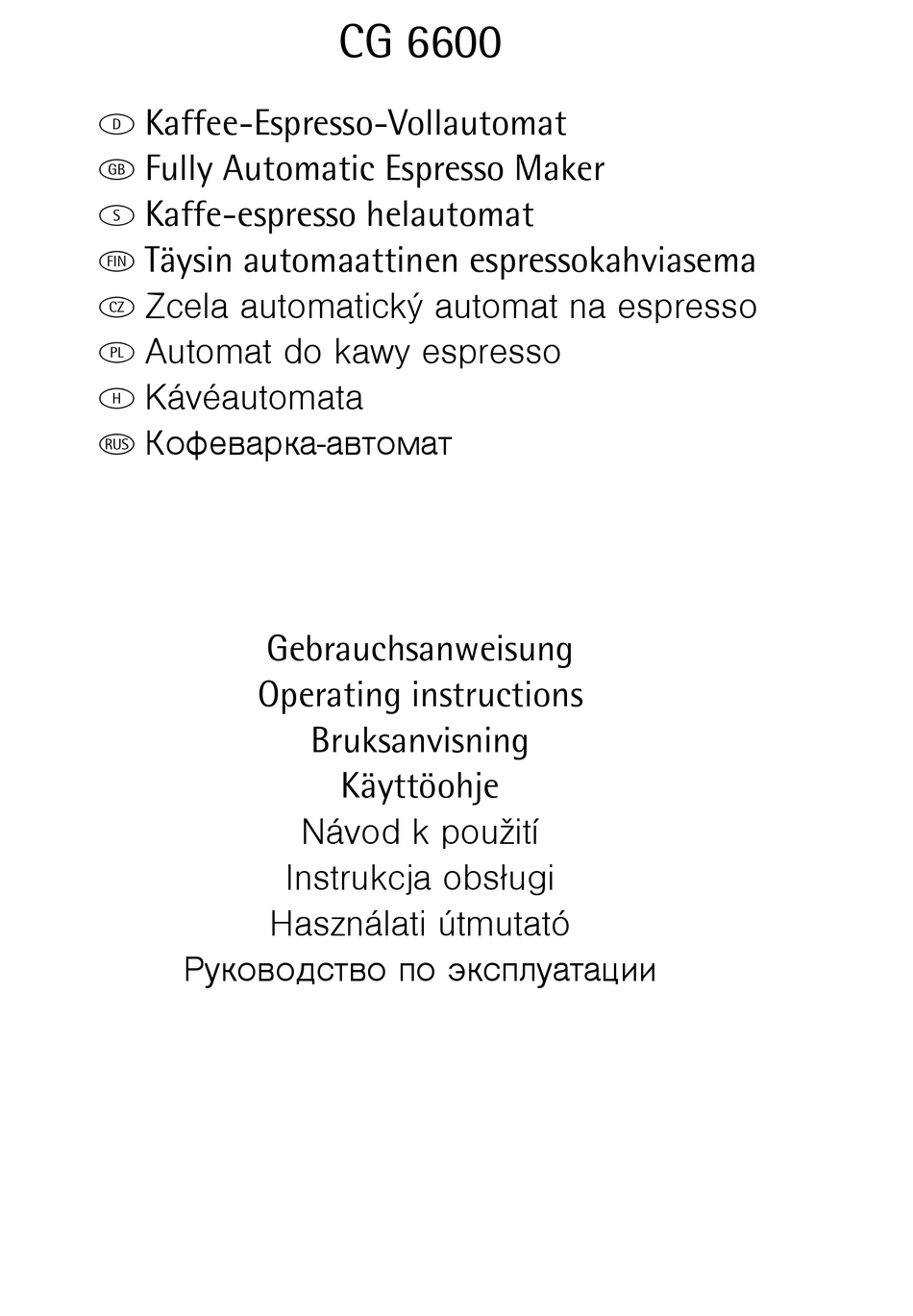

  • Page 1 CG 6600 Kaffee-Espresso-Vollautomat Fully Automatic Espresso Maker Kaffe-espresso helautomat Täysin automaattinen espressokahviasema Zcela automatický automat na espresso Automat do kawy espresso Kávéautomata Êîôåâàðêà-àâòîìàò Gebrauchsanweisung Operating instructions Bruksanvisning Käyttöohje Návod k použití Instrukcja obs³ugi Használati útmutató Ðóêîâîäñòâî ïî ýêñïëóàòàöèè...
  • Page 6 CLEAN...
  • Page 7 CLEAN...
  • Page 9: Table Of Contents

    Dear Customer Please read this user manual carefully, paying special attention to the safety notes! Keep the manual in a safe place for later reference, and pass it on to any new owner. Contents Key to picture 13 Menu settings 1.1 Front view (Figure 1) 13.1 Setting the language 1.2 Milk container (Figure 2)
  • Page 10: Key To Picture

    Key to picture Front view with open service door (Figure 3) Front view (Figure 1) O Service door (open) A Drip tray grill Waste coffee container (can be taken B Warming jug out) C Main switch (on back of appliance) Q Swing drawer D Height adjustable coffee dispenser R Brewing unit...
  • Page 11: Coffee And Espresso

    Coffee and Espresso Safety guidelines Your fully automated machine could The safety of this appliance complies not be easier tooperate, both for mak- with recognised technology regulati- ing coffee and taking care of it. ons and the Equipment Safety Act. The exquisit, individualtaste is attrib- Nevertheless, as a manufacturer we see uted to the...
  • Page 12 • Warning! Risk of scalding when hot Safety when cleaning and water nozzle or milk dispenser is acti- servicing vated! Escaping hot water or hot • Take note of cleaning and descaling steam can lead to scalding. Only use advice. the hot water nozzle or milk dis- •...
  • Page 13: Summary Of Menu Options

    • «RESET TO DEFAULT» menu Summary of menu options Reset the changed appliance settings Below you will find a summary of the to factory settings. menu options, which are used to change and save the appliance's fac- Menu mode tory settings, as well as to start pro- grammes and look up information.
  • Page 14: Filling With Water

    The coffee machine was tested at the Filling with water factory. Coffee was used to do this, so Before switching on, always make sure it is completely normal to find some that there is water in the water tank coffee in the mill mechanism. It is defi- and top up if necessary.
  • Page 15: Switching On The Appliance

    During the heating up stage (approx. The appliance now displays «TURNING OFF 120 seconds) the display shows «HEATING UP...» on the top line PLEASE WAIT...» and switches and on the bottom line a progress bar itself off. as a percentage 0 To fill the coffee bean container with 40%»...
  • Page 16: Making Coffee With Beans

    0 To go back to the coffee mode, press No or one pink field: Level 1, soft the "MENU" button (Figure 5) or wait up to 1.24 mmol/l, or about 120 seconds until the appliance up to 7° German hardness, or automatically jumps back to coffee bis 12.6°...
  • Page 17: Tips For Dispensing Hotter Coffee

    If no button is pressed for a few sec- When the display shows the message «FILL TANK !», you must fill the onds after setting the cup size or cof- fee strength, the appliance suggests tank, otherwise the appliance cannot the next step on its display: «PRESS make any coffee.
  • Page 18: Rinsing

    0 Turn the lid on the stainless steel jug water run into the cup (and then empty it). supplied to the removal position (Fig- ure 17) and remove the lid. Rinse the • Do not use cups that are too thick, jug and the lid.
  • Page 19: Makingcoffee With Ground Coffee

    The display shows a progress bar and a Makingcoffee with ground percentage coffee 40%» « which shows progress of the brewing You can use this function to brew cof- process. fee that is already ground, e.g. decaf- feinated coffee. When the progress bar is complete and the percentage has reached 100%, the Warning! Make sure that no ground appliance stops the brewing process...
  • Page 20: Making Cappuccino Or Hot Milk

    Only use ground coffee suitable for 0 Fill the container with sufficient milk fully automatic espresso machines. Do (Figure 24). Do not go over the MAX not put any coffee beans, any water line engraved on the container handle soluble, freeze dried instant powders or (comes to about 1000 ml).
  • Page 21: Frothing/Heating Up Milk

    0 Place a container under the milk dis- The top line of the display shows «CAPPUCCINO» and on the bottom penser pipe and press on the "CLEAN" line a progress bar and percentage are button on the milk container displayed, e.g. (Figure 30) for at least 5 seconds.
  • Page 22: Setting The Grind Level

    It is not recommended to pour off hot Menu settings water for longer than 2 minutes with- out a break. 13.1 Setting the language 0 You can stop hot water from dispens- You can choose between several langu- ing at any time. To do so, press the "hot ages.
  • Page 23: Setting The Switch-Off Time

    0 Confirm the menu option with the 0 If necessary, select another switch-off "OK" button (Figure 6). The display time with the scrolling buttons "<" or shows the current setting, e.g. ">" (Figure 6). «TEMPERATURE HIGH». 0 When the desired switch-off time is 0 If necessary, select another tempera- displayed, confirm it with the"OK"...
  • Page 24: Setting The Coffee Programme

    extra strong using the scrolling buttons 13.5 Setting the coffee programme "<" or ">" (Figure 6). (programming the filling 0 When the desired coffee strength is quantity) displayed, confirm it with the"OK" but- The appliance is preset to normal ton (Figure 6). This coffee strength is quantities at the factory.
  • Page 25: Setting The Cappuccino Programme

    0 To go back to the coffee mode, next If "OK" is not pressed, the appliance press the "MENU" button (Figure 5) automatically returns to the coffee twice or wait about 120 seconds until mode after about 120 seconds without the appliance automatically jumps saving the entries.
  • Page 26: Setting The Hot Water Programme (Programming Dispensing Quantity)

    13.7 Setting the hot water 13.8 Looking up the number of programme (programming coffees dispensed, number of dispensing quantity) jugs dispensed and number of descaling procedures (statistics) The appliance is preset to a normal quantity at the factory. You can The appliance allows the following change and save this quantity: values to be looked up:...
  • Page 27: Resetting The Appliance To Factory Settings (Reset)

    13.9 Resetting the appliance to Care and cleaning factory settings (Reset) Keep your appliance clean at all times This function resets previously changed to ensure that it works without values to the factory settings. problems and the coffee quality The following settings or saved data remains consistent.
  • Page 28: Emptying The Waste Coffee Container

    0 Check that the holes on the coffee dis- 0 Pull off the milk dispenser pipe penser are not blocked. You can clean (Figure 25) and the suction pipe off dried on coffee using a needle (Fig- (Figure 37). ure 34). 0 Carefully clean all the parts with hot water and detergent.
  • Page 29: Carrying Out The Descaling Programme

    to be emptied and the appliance tho- back out, otherwise the service door roughly cleaned, incl. the brewing unit. cannot be closed. Proceed as follows: Figure 43: The two red buttons are cor- rectly snapped out. 0 Switch the coffee machine off using the On/Off button (Figure 11) (do not Figure 44: The two red buttons are not pull the power lead out) and wait until...
  • Page 30 0 Before starting the descaling pro- and pauses to remove limescale depos- gramme, clean the brewing unit (see its from the inside of the coffee „Cleaning the brewing unit“ page 56). machine. 0 Press the "MENU" button (Figure5). The After about 45 minutes the water tank menu option «CHOOSE LAN- is empty and the top line of the display GUAGE»...
  • Page 31: Ordering Accessories

    «GROUND COFFEE TOO FINE shows a progress bar and percentage 100%». SET GRIND LEVEL « + PRESS HOT WATER KEY» After a few seconds the display just shows «FILL TANK !» • The coffee machine cannot make any coffee. 0 Empty the rinsing water out of the 0 Place a container underneath the hot container.
  • Page 32: Solvable Problems, Before Calling Customer Services

    «PLEASE DESCALE !» Coffee is not hot • Shows that the coffee machine is • The cups were not preheated. encrusted with limescale. 0 Preheat the cups by rinsing them out 0 The descaling programme described in with warm water or leaving them at Chapter „Carrying out the descaling least 20 minutes on the heated cup programme“...
  • Page 33 of the machine (see „Cleaning the described under „Cleaning the brewing brewing unit“ page 56) unit“ page 56. Repeat the process using a maximum of 2 level measuring The machine does not switch on spoons of ground coffee. when the button is pressed •...
  • Page 34: Technical Data

    Work under warranty cold part of the year. Frost damage can In case of necessary repair, including occur. replacing the power lead, please first call our AEG-Electrolux help line. Technical data Mains voltage: 220-240 V Power consumption: 1350 W...
  • Page 35 Electrolux Hausgeräte Vertriebs GmbH Muggenhofer Str. 135 D-90429 Nürnberg http://www.electrolux.de © Copyright by Electrolux 822 949 338 – 01 - 1006...
