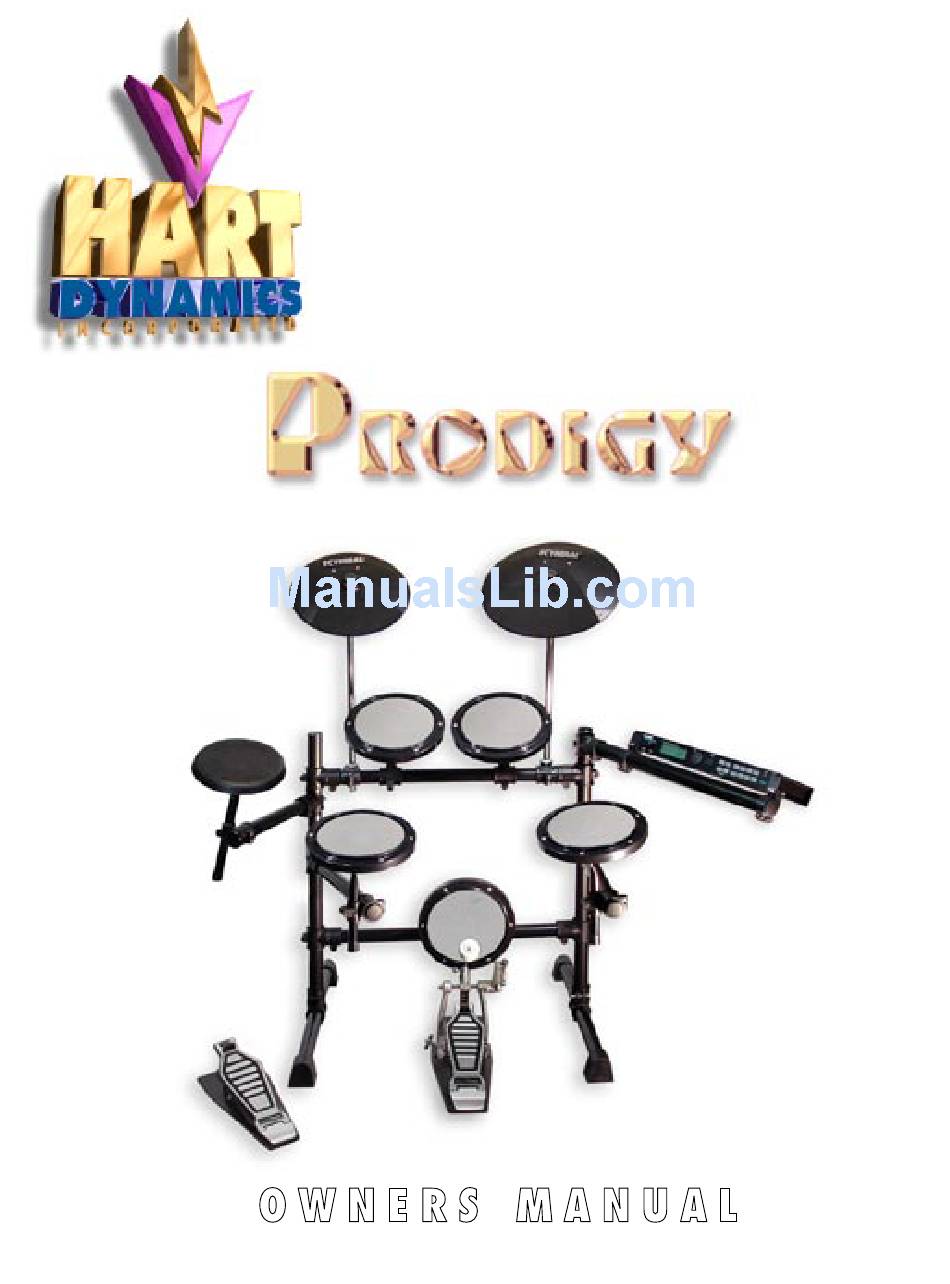

- Page 1 Electracoustic Percussion Products O W N E R S M A N U A L...
-
Page 2: Thank You
TECHNICAL QUESTIONS OR BELIEVE YOUR ARE MISSING COMPONENTS, PLEASE CHECK YOUR QUALITY CONTROL CHECK LIST (NEXT PAGE) AND REVIEW YOUR OWNERS DOCUMENTATION. IF YOU NEED ADDITIONAL HELP, PLEASE CALL HART DYNAMICS DIRECT AT (850) 654-1466 FOR PROMPT, EXPERT ASSISTANCE. THANK YOU... - Page 3 DESCRIPTION HW-UTCL R ANGLE TUBE CLAMP HW-URCL RACK TOM/CYMBAL CLAMP HW-CYBS CYMBAL ARM STRAIGHT PR-DRUM MT ARM PRODIGY TOM ARM PR-URT12" ULTILITE 12" RACK TUBE PR-URT16" ULTILITE 16" RACK TUBE PR-URT24" ULTILITE 24" RACK TUBE PR-URT26" ULTILITE 26” RACK TUBE PR-URT30"...
- Page 4 PRODIGY RACK SET-UP Rack Assembly 1. Slide clamps on to tubes. 2. Insert Tom arms, Cymbal arms and Bass Drum mount. 3. Install Drums, Cymbals, and Hi-Hat pad. 4. Attach Bass Drum pedal. 5. Position all instruments to desired location.
-
Page 5: Snare Pad
14” RIDE CYMBAL PAD FOOT 12” CRASH CYMBAL PAD SWITCH FOOT SWITCH HH PEDAL Prodigy drum set does not require trigger adjustment with the Alesis DM5. You may alter trigger settings to suit your playing style. ROLAND TD-3 INPUT HI-HAT PAD... - Page 6 Percussion Product. You have purchased one of the finest Instruments avail- able, and are assured of years of trouble free operation. We at Hart Dynamics, are dedicated to providing the finest products and services available, and continue to design our products with quality, playabili- ty, ease of set-up, and compatibility being our foremost concerns.
-
Page 7: Table Of Contents
Contents I n t r o d u c t i o n ............. . . 2 Drum Rack Set-up.............3 Installing Drums and Cymbals........4 Cable Installation............5... -
Page 8: Introduction
Introduction Your Hart Dynamics Electracoustic® Drum System is the result of years of research and development and represents the most comprehensive electronic drum system available. Easy enough to use for the beginning drummer with features that allow the most advanced user flexibility never before available. -
Page 9: Drum Rack Set-Up
Drum Rack Set-up Your PRODIGY Drumset comes with complete hardware and cables. We have provided the quick set-up sheet so you have pictures of the assem- bled rack and module mount recommendations for reference. NOTE: HW-UMMT/A (ALESIS) module mounts are shown in all rack set up pictures. -
Page 10: Installing Drums And Cymbals
We recommend using a protec- tive patch just as you would on an acoustic kick. Hart Dynamics does not guarantee drum heads. -
Page 11: Cable Installation
Cable Installation PRODIGY drumset is supplied with 10’ "Stereo" TRS cables for use with ALESIS D4 and DM5 modules. These Modules do not require TRS cables. PRODIGY sets are not compatable with dual trigger snare (rimshot), choke capability, and variable HH with Roland modules. The Snare pad, Prodigy Ecymbals, and Prodigy HH pedal will function properly and will play fine, but these advanced functions will not be accessable. -
Page 12: Crash/Splash Set-Up
Fig. 2a CORRECT MOUNTING NOTE: CABLE RELIEF... -
Page 13: Ready To Play
3. The Prodigy sets ship with self adhesive rubber pads which are replace- able as a wear and tear item. These pads allow the cymbals to be played very quietly. -
Page 14: Advanced User Tips And Tricks
Advanced User Tips and Tricks X-TALK/ REJECTION Once Vcurve and sensitivity/gain settings are programmed, plug in all inputs. Cross-talk (also referred to as rejection) keeps the vibra- tion created by hitting a specific trigger (drum/cymbal) from firing other triggers. Usually, the default (stock) settings are sufficient, but if false trig- gering should occur, you may adjust each trigger input accordingly. -
Page 15: Lifetime Guarantee
User alteration or modification of any HDI Electracoustic® Percussion Product may void guarantee. HDI reserves the right to evaluate and approve any product returned for repair or replacement and shipment must be properly packaged and shipped to Hart Dynamics for evaluation. No shipments will be accepted without a return authorization number (RA#) printed clearly on the package. HDI must be able to duplicate the problem with any product that is returned for service that user has determined is not functioning to factory specifications. - Page 16 HART DYNAMICS, INC. 500 INDUSTRIAL PARK ROAD BUILDING K4 DESTIN FLORIDA 32541 PHONE: 850.654.1455 FAX: 850.654.8505 www.hartdynamics.com Copyright © 2004 HDI...
