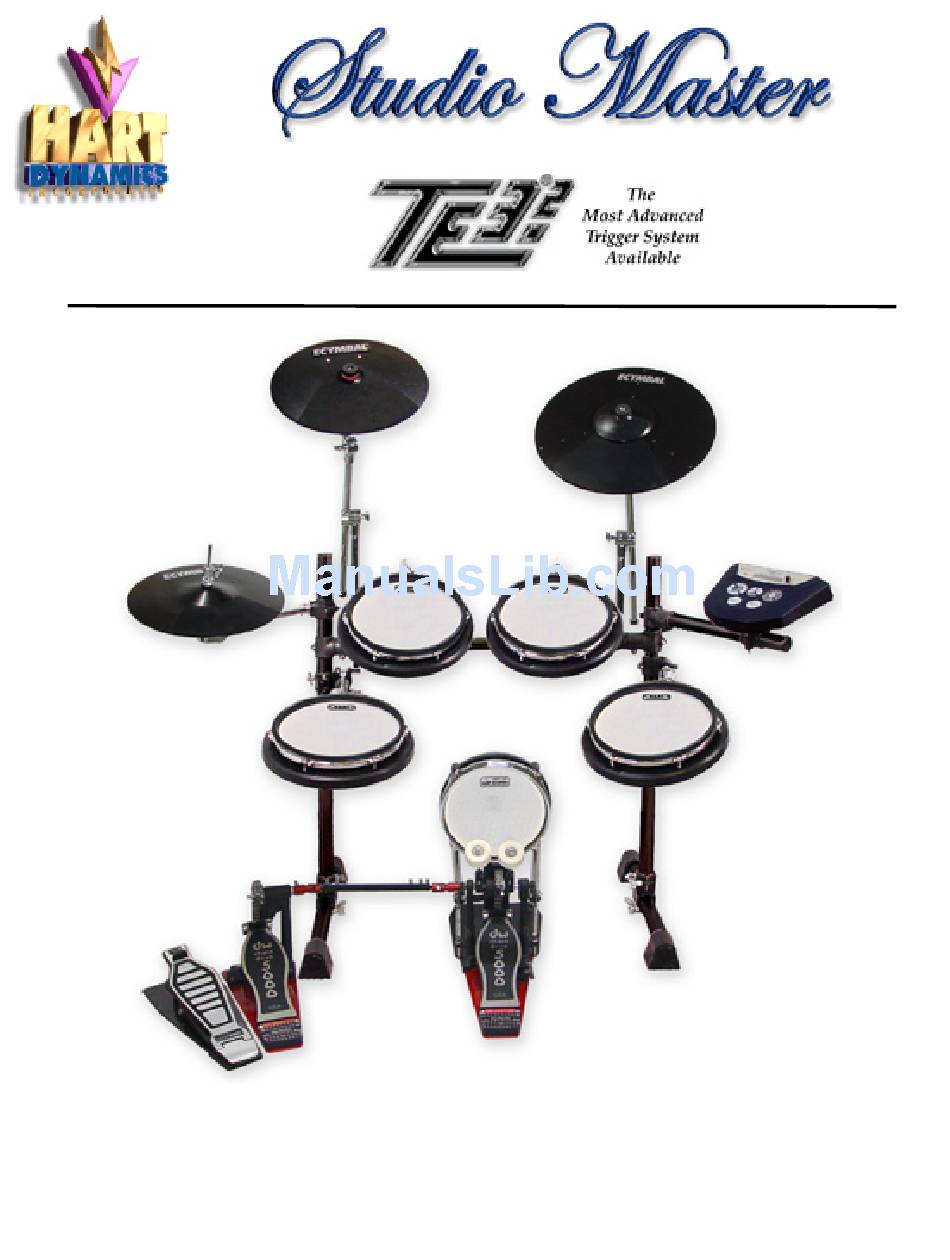

  • Page 1 Electracoustic Percussion Products OWNERS DOCUMENTATION Quality Control Checklist Quick Set-up Guide Cable Diagrams Module Settings Lifetime Guarantee...
  • Page 2 Percussion Product. You have purchased one of the finest Instruments avail- able, and are assured of years of trouble free operation. We at Hart Dynamics, are dedicated to providing the finest products and services available, and continue to design our products with quality, playabili- ty, ease of set-up, and compatibility being our foremost concerns.
  • Page 3 MISSING COMPONENTS, PLEASE CHECK YOUR QUALITY CONTROL CHECK LIST (NEXT PAGE) AND REVIEW YOUR OWNERS DOCUMENTATION. IF YOU NEED ADDITIONAL HELP, PLEASE VISIT OR WEBSITE: WWW.HARTDYNAMICS.COM/SUPPORT OR CALL HART DYNAMICS DIRECT AT (850) 654-1466 FOR PROMPT, EXPERT ASSISTANCE. THANK YOU...
  • Page 4 QUALITY CONTROL CHECKLIST STUDIO MASTER DRUMSET TE3.2 ������������� ��� ����� ����������� � ������� ������������������ � ������� ��������������������� � ������ ����������� � ������ ����� � ������ ������� � ������� ��������������������������������������� � ������� ����������� � ��������� ������������� � ��������� ������������������ � ������� �����������...

  • Page 5: Drum Rack Set-Up

    DRUM RACK SET-UP YELLOW Cymbal Spring is for RIDE CYMBAL. Felts and Wing Nut are includ- ed and may also be used for RIDE CYMBAL. RED Cymbal Spring(s) for CRASH CYMBAL(s). Although felts and Wing Nut are included for Crash Cymbals, we highly recommend using the springs for enhanced feel and to keep Crash...
  • Page 6 Introduction Your Hart Dynamics Electracoustic® Drum System is the result of years of research and develop- ment and represents the most comprehensive electronic drum system available. Easy enough to use for the beginning drummer with features that allow the most advanced user flexibility never before available.
  • Page 7 Hart Dynamics does not guarantee drum heads. Cable Installation Your Hart Dynamics Electracoustic® Drumset is supplied with 10’ stereo (TRS) cables. TRS cables are used for dual trigger instruments and cymbals with choke capability. TRS cables can always be used whenever a mono cable is required.
  • Page 8 IMPORTANT! It is VERY IMPORTANT that enough slack is provided for crash and splash cymbals which move up and down and that cable is not just hanging from the cymbal. This may cause jack failure, bend trig- ger housing, and cause intermittent triggering. When installing cable, bend cymbal to full extension and attach cable to stand.
  • Page 9 ������������������������������������������ This set-up is used for Hart Dynamics Studio �� ����� ���� Master, Studio Master 5.3, Custom A, MegaPro ��� ����� ���� and Hart Pro 5.3 Drumsets. With this configuration, the Ride and Bell triggers on the ride cymbal are plugged in to 2 separate inputs via the Y cable.
  • Page 11 ���������������������������������������� This set-up is used for ������ ��� ��� ��� ���� ����� Hart Dynamics Studio � � � ���� ����� Master, Studio Master 5.3, Custom A, Mega Pro and Hart Pro 5.3 Drumsets. With this configuration, the Ride and Bell triggers...
  • Page 13 ����������������������������������������� This set-up is used for ������ ��� ��� ��� ����� ���� Hart Dynamics Studio � � � ����� ���� ��������� Master, Studio Master 5.3, Custom A, Mega Pro and Hart Pro 5.3 Drumsets. With this configuration, the Ride and Bell triggers...
  • Page 15 ����� ���� ���� ������ �� ����� ���� �������� ��� ����������������������������������������� This set-up is used for Hart Dynamics Studio Master, Studio Master 5.3, Custom A, Mega Pro and Hart Pro 5.3 Drumsets. ������ �� ��� ��� ��� ����� ���� ���� �����...
  • Page 18 User alteration or modification of any HDI Electracoustic® Percussion Product may void guarantee. HDI reserves the right to evaluate and approve any product returned for repair or replacement and shipment must be properly packaged and shipped to Hart Dynamics for evaluation. No shipments will be accepted without a return authorization number (RA#) printed clearly on the package. HDI must be able to duplicate the problem with any product that is returned for service that user has determined is not functioning to factory specifications.
