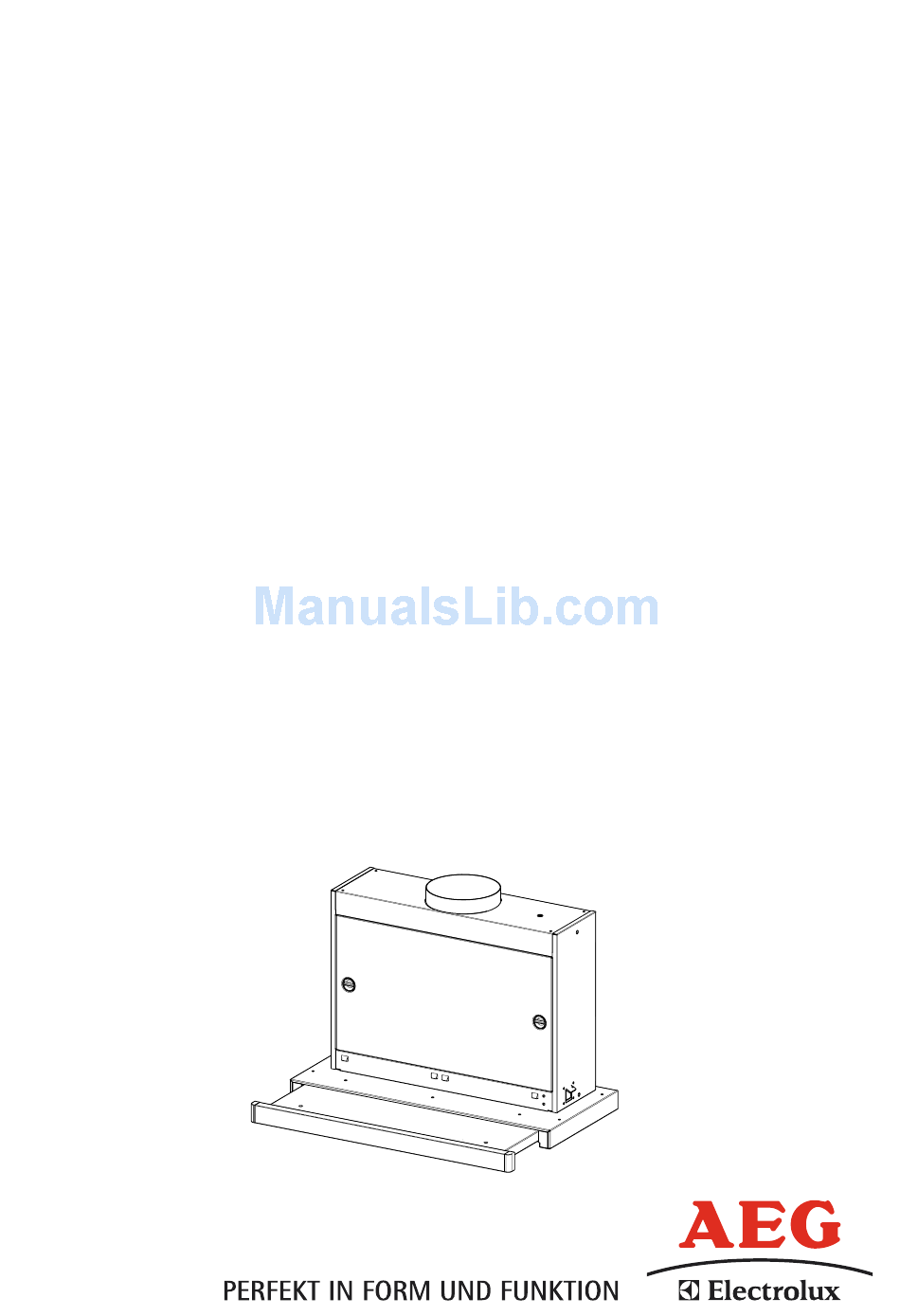

- Page 1 DF7190 DF7290 Einbau-Flachschirm-Dunstabzugshaube Built-In- Flat-Screen Fume Extractor Hood Hottes aspirantes encastrables à visière plate Cappa aspirante da incasso con schermo piatto estraibile Inbouw-wasemkappen met plat scherm Campana empotrable de aspiración de vahos con visiera plana Montage- und Gebrauchsanweisung Installation and Operating Instructions...
- Page 2 Bedienungsanleitung INHALTSVERZEICHNIS EMPFEHLUNGEN UND HINWEISE............................8 CHARAKTERISTIKEN ................................9 MONTAGE....................................10 BEDIENUNG ..................................12 WARTUNG ...................................13...
-
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. • The minimum safety distance between the cooker top and the extrac- tor hood is 650 mm. • Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood. -
Page 4: Characteristics
CHARACTERISTICS Dimensions Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Directional Air Outlet grille Flange ø 150 mm Flange ø 120 mm Adapting ring ø 120-125 mm Closing element Ref. Q.ty Installation Components Hood Body Fixing Brackets Screws 3,5 x 16 Screws 2,9 x 12,7 Screws 2,9 x 9,5... -
Page 5: Installation
INSTALLATION Drilling the Support surface and Fitting the Hood • The Hood can be fitted directly on the lower surface of the Wall Units (650 mm min. above the Cooker Top) using the snap- on Side Supports. • Make an opening on the lower surface of the Wall Unit, as indicated. -
Page 6: Electrical Connection
Connections DUCTING VERSION AIR EXHAUST SYSTEM When installing the hood in ducting version, a rigid or a flexible pipe with the diameter corresponding to the flange diameter is used in order to connect the hood to the air outlet piping. •... - Page 7 By pulling out the sliding panel it is possible to automatically activate all the hood functions. By simply closing the sliding panel all the functions are switched off. SWITCH FUNCTIONS Light Switches the lighting system on and off Motor Switches the extractor motor on and off 1.
-
Page 8: Lighting
MAINTENANCE Grease filters CLEANING METAL CASSETTE GREASE FILTERS • The filters must be cleaned every 2 months, or more frequently in case of particularly heavy use of the hood. Filters can be washed in a dishwasher. • Pull out the sliding suction panel. •... - Page 9 Bitte geben Sie unserem Kundendienst folgende Angaben bei einer Störung an: If your appliance has a fault, please contact our service engineer and state the following numbers: Veuillez donner les indications suivantes à notre service après-vente en cas de panne: Qualora constataste un difetto vi preghiamo di comunicare i seguenti dati al nostro servizio tecnico assistenza clienti: Geef onze klantenservice bij een storing de volgende gegevens op:...
