Summary of Contents for Electrolux DF 6160

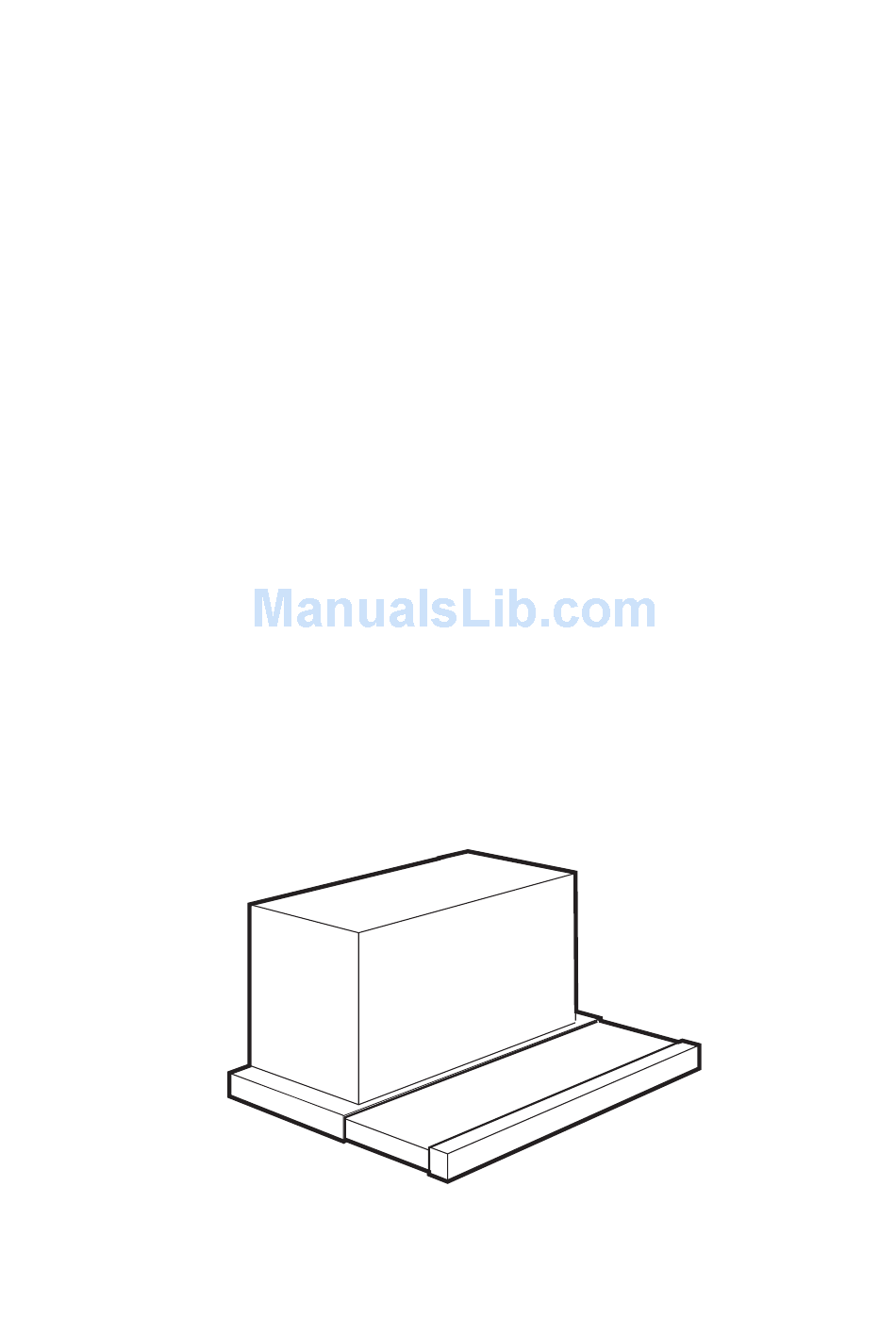

- Page 1 DF 6160 Cooker Hood Operating and Installation Instructions...
-
Page 2: Table Of Contents
Contents Safety warnings ................3 For the user ..................3 For the installer ................... 4 Description of the Appliance ............6 Extraction version ................6 Recirculation Version ................6 Control Panel ..................7 Maintenance and Care ..............8 Cleaning the hood ................8 Metal grease filter ................ -
Page 3: Safety Warnings
Safety warnings For the user • The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam. • Always cover lighted elements, to prevent excess heat from damaging the appliance. In the case of oil, gas and coal fired cookers it is essential to avoid open flames. -
Page 4: For The Installer
For the installer • When used as an extractor unit, the hood must be fitted with a 120mm diameter duct. • When installing the hood, make sure you respect the following minimum distance from the top edge of the cooking hob/ring surfaces: electric cookers 430 mm... - Page 5 - short and straight outlet ducting - keep bends in outlet ducting to a minimum - never install the ducts with an acute angle, they must always follow a gentle curve. - keep the duct as large as possible (preferably the same diameter as the outlet hole).
-
Page 6: Description Of The Appliance
Description of the Appliance • The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam. • The hood is supplied as an extractor unit and can also be used with a recirculation version by fitting a charcoal filter. Extraction version •... -
Page 7: Control Panel
Control Panel • The switches are mounted on the upper right side of the visor (Fig. 1 - E). The numbers and symbols have the following meanings (from left to right): = fan set 1 = fan set 2 = fan set 3 = fan set 4 = Light = Light OFF... -
Page 8: Maintenance And Care
Maintenance and Care • The hood must always be disconnected from the electricity supply before beginning any maintenance work. Cleaning the hood • Clean the outside of the hood using a damp cloth and a mild deter- gent. • Never use corrosive, abrasive or flammable cleaning products. •... -
Page 9: Charcoal Filter
Charcoal filter • The charcoal filter should only be used if you want to use the hood in the recirculation function. • To do this you will need an original charcoal filter (available from your local Service Centre). • Replacing the charcoal filter Type 150 This filter cannot be cleaned or reused. -
Page 10: Changing The Light Bulb
Warning • Failure to observe the instructions on cleaning the unit and changing the filters will cause a fire hazard. You are therefore strongly recommended to follow these instructions. • The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations. -
Page 11: Something Not Working
Something Not Working If your appliance fails to work properly please carry out the following checks. Symptom Solution The cooker hood Check that: The hood is connected to will not start... the electricity supply. Check that a fan speed has been selected The cooker hood Check that: The fan speed is set... -
Page 12: Technical Specifications
Technical Specifications Dimensions (in cm): Height 38,7 Width 59,9 Depth 27,5 (+ front panel) Maximum absorbed power (W): 200 Motor (W): Lighting (W): 2x40 Length of the cable (cm): Electrical connection (V): 220-240 Mounting accessories included 1 allen spanner (for TORX screws) 1 deflector 1 flange 1 reduction flange... -
Page 13: Installation
Installation Preparing the wall unit - Extractor version • The hood is supplied as an extractor unit. Before installing the hood, drill a hole in the roof of the wall unit (see Fig. 5). This hole is to allow passage of the outlet pipe and the power cable, and to facilitate servicing. - Page 14 Outlet hole - Only for model (extractor-filter version) • When used as an extractor unit, the hood must be fitted with a 120mm diameter hose. • The dimensions and position of the air outlet are given in figure 9. • Fix the flange supplied as kit onto the exit hole (bayonet fixture). •...
- Page 15 Spice rack • If a spice rack is to be incorporated in front of the hood, a minimum distance of 5 mm must be provided between the front edge of the fume extractor hood and the spice rack wall (this air gap being necessary for air circulation).
- Page 16 • If the cupboard is deeper than 300 mm, cover the gap between the hood and the wall with a finishing strip (special accessory). To install it, proceed as follows: Measure the wall distance and apply the covenng strip over the necessary width (wall distance plus 5 to 8 mm), kinking the covering strip at the appropriate notches and tearing off the surplus material (removing the protective foil).
- Page 17 Removing the hood from the wall unit If, for technical reasons (extraction version/recirculation version conversion) the extractor hood has to be removed from the wall unit, proceed as follows: • Fully withdraw the visor and remove the grease filter. • Loosen the 4 mounting screws of the hood (wall unit mounting). •...
- Page 18 Installing the front panel (see also “Special accessories”) • Remove first the rear then the front grease filters. • Remove the internal cover pressing both unlocking devices (press and pull). Fig. 16. Fig. 16 • Predrill the front panel as per template and fix it to the visor with 3 screws.
- Page 20 From the Electrolux Group. The world´s No.1 choice. The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
