Shindaiwa 65002 Owner's/Operator's Manual

Shindaiwa 65002 Owner's/Operator's Manual

Multipurpose pole pruner tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WARNING!
Always wear eye
protection when op-
erating this machine.
WARNING!
To minimize the
risk of injury, read
this manual and
familiarize yourself
with its contents.
X7502880503
09/11

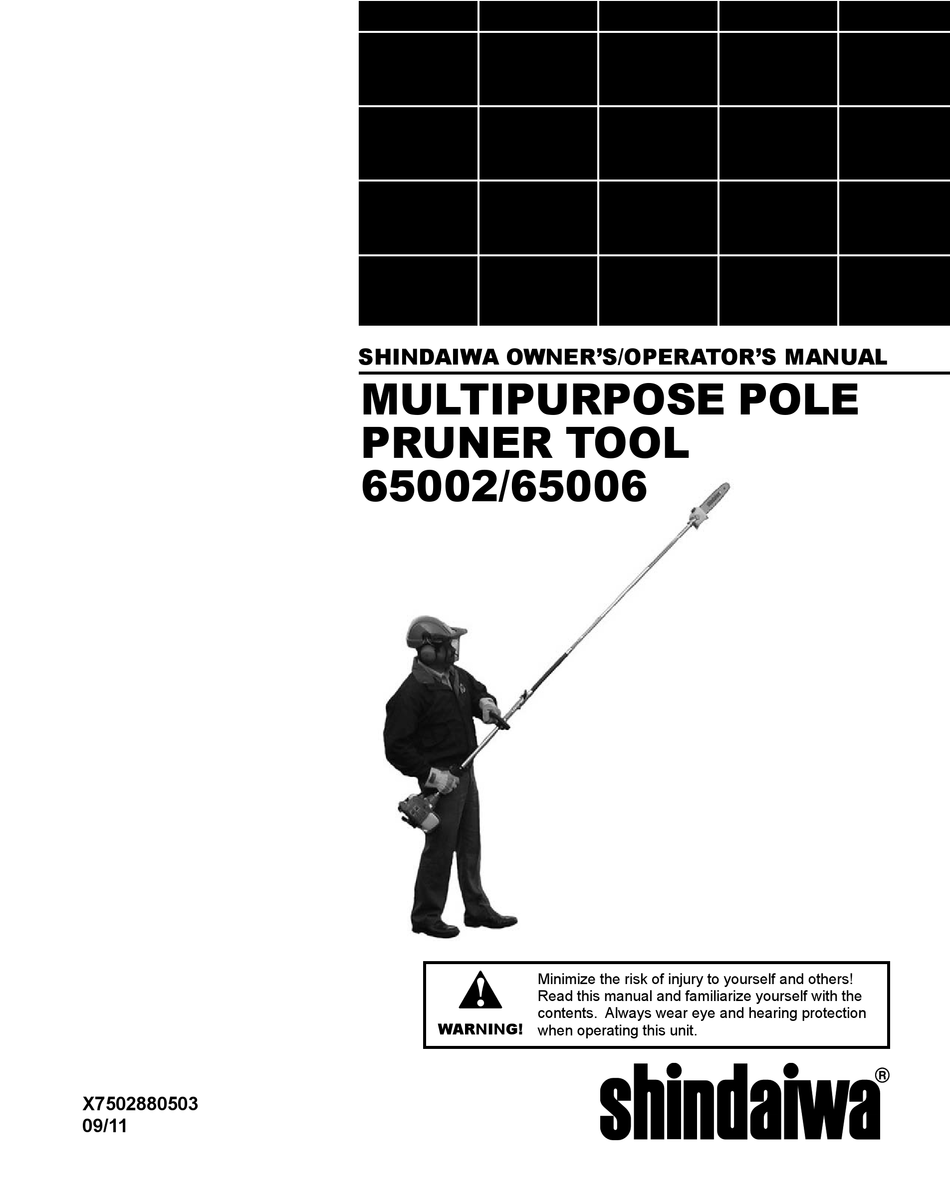

SHINDAIWA OWNER'S/OPERATOR'S MANUAL
SHINDAIWA OWNER'S/
MULTIPURPOSE POLE
OPERATOR'S MANUAL
MULTIPURPOSE POLE
PRUNER TOOL
PRUNER TOOL
65002/65006
Minimize the risk of injury to yourself and others!
Read this manual and familiarize yourself with the
contents. Always wear eye and hearing protection
WARNING!
when operating this unit.
