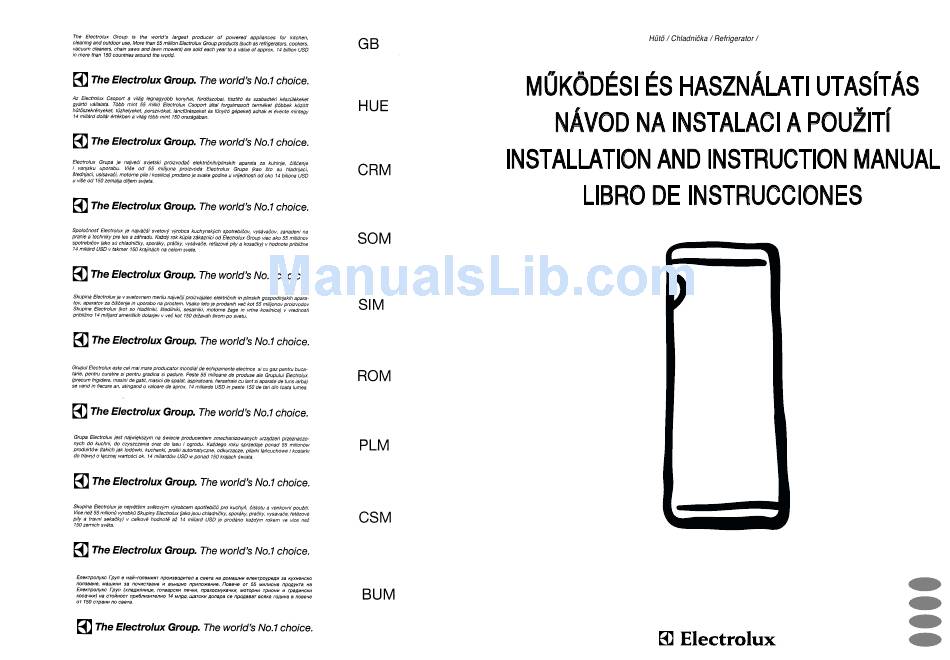

- Page 1 Frigorífico ERC 2521 2223 266-11...
-
Page 2: Changing The Opening Direction Of The Door
Changing the opening direction of the door Before carrying out any operations, remove the plug from the power socket. To change the opening direction of the door, proceed as follows: 1. Remove the ventilation grill (D). 2. Unscrew the bottom hinge (E). 3. -
Page 3: Electrical Connection
Electrical connection Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond to your domestic power supply. Voltage can vary by ±6% of the rated voltage. For operation with different voltages, a suitably sized auto-transformer must be used. -
Page 4: Installation
INSTALLATION Location The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. For safety reasons, minimum ventilation must be as shown in Fig. Appliance positioned under overhanging kitchen wall units (see Fig. A). D338 Appliance positioned without overhanging kitchen wall units (see Fig. -
Page 5: Customer Service And Spare Parts
If there are water drops on the bottom of the cabinet, check that the defrost water drain opening is not obstructed (see “Defrosting” section). TECHNICAL INFORMATION ERC 2521 Gross Fridge Capacity lt. Net Fridge Capacity lt. Dimensions (width*height*depth, cm) 140x60x62,5... - Page 6 Defrosting Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.
-
Page 7: Maintenance
Clean the condenser (black grill) and the compressor at the back of the appliance with a brush or a vacuum ERC 2521 cleaner. This operstion will improve the performance of the appliance and save electricity consumption. -
Page 8: Movable Shelves
Movable shelves The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired. D338 NP00 Positioning the door shelves To permit storage of food packages of various sizes, the door shelves can be placed at different heights. To make these adjustments proceed as follows: Gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required. -
Page 9: Operation
Control panel A. Pilot light (refrigerator) B. Thermostat knob (refrigerator) Cleaning the interior Before using the appliance for the first time, wash the interior and all internal accessories with luke- Do not use detergents or abrasive warm water and some neutral soap so as to remove powders, as these will damage the finish. -
Page 10: Environment Protection
• Do not place carbonated or fizzy drinks in the • There are working parts in this product which freezer as it creates pressure on the container, heat up. Always ensure that there is adequate which may cause it to explode, resulting in ventilation as a failure to do this will result in damage to the appliance. -
Page 11: General Safety
Z·ruËnÌ podmÌnky WARNINGS It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings.
