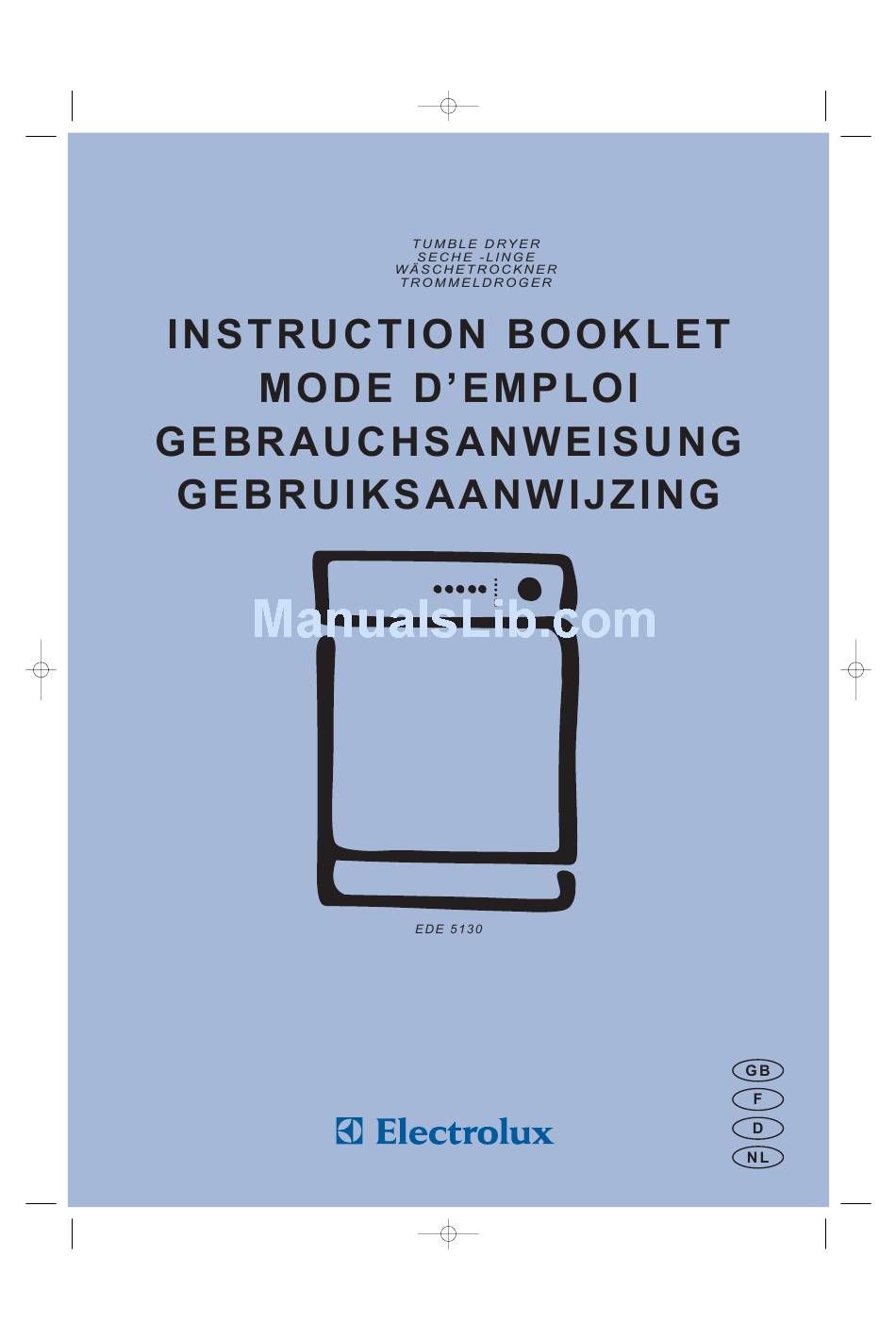

  • Page 1 125980951 gb.qxp 2005-02-18 08:53 Page 1 125 980 951...
  • Page 2: Dear Customer

    125980951 gb.qxp 2005-02-18 08:53 Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages After unpacking the machine please check it is not damaged.
  • Page 3: Table Of Contents

    125980951 gb.qxp 2005-02-18 08:53 Page 3 Contents Important safety information Maintenance and Cleaning ....4 ....13 External cleaning ..........13 Disposal ............5 Cleaning the door..........13 Cleaning the filters ..........13 Tips for environmental protection Something not working? ....14 Description of the appliance ....6 Installation ............7 Unpacking ............7...
  • Page 4: Important Safety Information

    125980951 gb.qxp 2005-02-18 08:53 Page 4 Important safety information These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance. Installation General safety • Any electrical work required to install this appliance •...
  • Page 5: Disposal

    125980951 gb.qxp 2005-02-18 08:53 Page 5 Disposal • Packaging materials Old appliance • The materials marked with the symbol The symbol on the product or on its packaging recyclable. indicates that this product may not be treated as This means that they can be recycled by disposing of household waste.
  • Page 6: Description Of The Appliance

    125980951 gb.qxp 2005-02-18 08:53 Page 6 Description of the appliance 01 Control panel 02 Fluff filters 03 Rating Plate 04 Adjustable feet 05 Side vent outlets 06 Ring nut 07 Rear vent outlet...
  • Page 7: Installation

    125980951 gb.qxp 2005-02-18 08:53 Page 7 Installation Warning! The feet must never be removed. Do not restrict the floor clearance through deep- Unpacking pile carpets, strips of wood or similar. This might cause heat build-up which would interfere with Slide out the polythene bag with the the operation of the appliance.
  • Page 8: Electrical Connection

    125980951 gb.qxp 2005-02-18 08:53 Page 8 Once connected to the dryer, run the vent hose to Electrical connection the desired outlet point, ensuring that the run’s This machine is designed to operate on a 220-230 V, overall length is less than 2 m, and that it contains no single-phase, 50 Hz supply.
  • Page 9: Use

    125980951 gb.qxp 2005-02-18 08:53 Page 9 The control panel 1 Programme chart 6 Start button - “START This will help you to select the correct programme for After selecting the drying time press this button to drying. start the programme. If the door is opened during drying or during a power cut, this button has to be depressed again after 2 Mains-ON light...
  • Page 10: Drying Times

    125980951 gb.qxp 2005-02-18 08:53 Page 10 Drying Times Cotton Selector dial: up to 150 minutes Degree of spin given Quantity Drying times Degree of drying required mins 065 - 90 800/1000 035 - 55 Iron dry 055 - 75 1200/1400 025 - 45 075 - 100 800/1000...
  • Page 11: Operating Sequence

    125980951 gb.qxp 2005-02-18 08:53 Page 11 After each use Operating sequence • Switch the appliance off by releasing the ON/OFF Before starting up for the first time it is advisable lo load a few moist cloths into the dryer and to let it run button “AAN/UIT”:.
  • Page 12: Useful Hints

    125980951 gb.qxp 2005-02-18 08:54 Page 12 • Avoid drying dark clothes with light coloured fluffy Useful hints items such as towels as they could attract the fluff. • Try to load to the maximum capacity of the • The laundry must be thoroughly spun before machine as small loads are uneconomical.
  • Page 13: Maintenance And Cleaning

    125980951 gb.qxp 2005-02-18 08:54 Page 13 Maintenance and Cleaning You must disconnect the appliance from the If necessary the filters can be cleaned under running electricity supply, before you can carry out any water using a brush. In this case remove the filter in cleaning or maintenance work.
  • Page 14: Something Not Working

    125980951 gb.qxp 2005-02-18 08:54 Page 14 Something not working? Before contacting your local Electrolux Service Centre, please make the following checks: Problem Possible cause • The door is open. • The dryer does not work: • The plug is not fitted into the wall socket. •...
