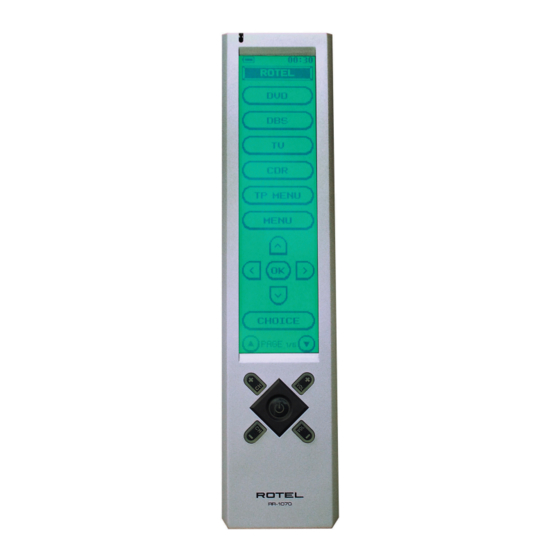

Rotel RR-1070 Owner's Manual

Touch screen universal learning remote control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
English
1

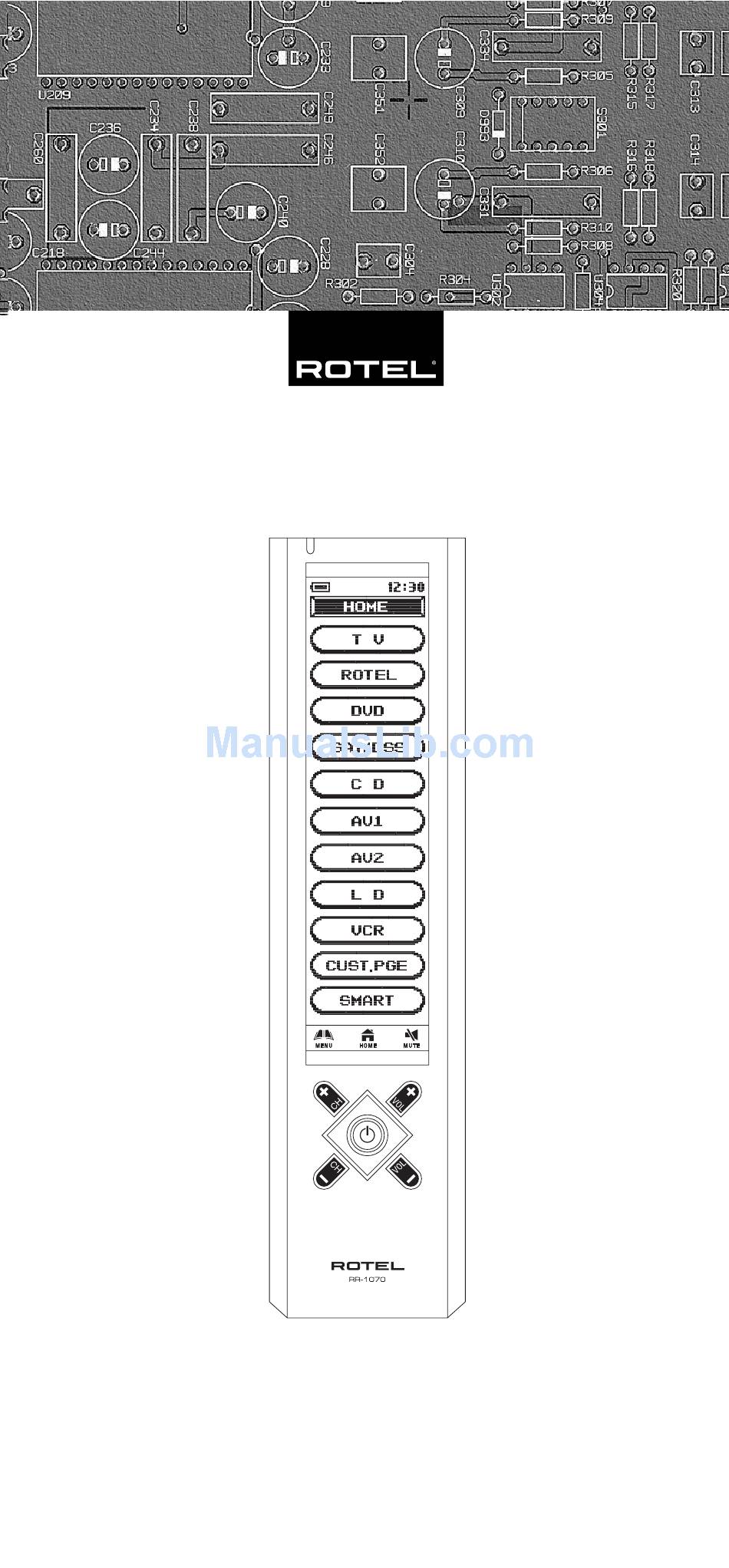

Owner's Manual
RR-1070
Touch Screen Universal Learning Remote Control

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RR-1070 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rotel RR-1070

Summary of Contents for Rotel RR-1070

  • Page 1 English Owner’s Manual RR-1070 Touch Screen Universal Learning Remote Control...

  • Page 2: Table Of Contents

    RR-1070 Contents Introduction ..............3 Key Features ..............3 Optional Features ............3 Getting to Know the RR-1070 ........4 Battery Installation and Charging ......... 5 Getting Started ............. 6 From the HOME page Touch Screen Calibration ..........6 Hot Keys ..............7 Hard Keys ..............

  • Page 3: Introduction

    English Introduction Congratulations and thank you for selecting the RR-1070 Touch Screen Universal Remote. The RR-1070 is a state-of-the-art electronic device that will replace up to ten remote controls. It is pre-programmed to control a wide range of audio/video devices. It can also learn the command signals of any other remote control.

  • Page 4: Getting To Know The Rr-1070

    RR-1070 Getting to Know the RR-1070 The RR-1070 has three type of control keys – soft keys, short cut keys and hard keys. Since most of the keys discussed in this manual are soft keys these will simply be called “keys”. When short cut keys or hard keys are discussed they will always be specified.

  • Page 5: Battery Installation And Charging

    English Battery Installation and Charging Supplied with the RR-1070 are four AAA NiMH rechargeable batteries, a special charging connector and a power adapter. Before using the remote the batteries should be charged for at least 10 hours. There is a battery charge symbol in the upper left corner of the touch screen.

  • Page 6: Getting Started

    RR-1070 Getting Started The RR-1070 has three type of keys - Hard Keys, Hot Keys and Soft Keys. Each type is described in a following section. Since most keys being re- ferred to in the manual are soft keys, they will simply be referred to as “keys”.

  • Page 7: Hot Keys

    – A mute control that is preprogrammed for most compo- nents. This key can also be reprogrammed by learning a new control code from another remote. Hard Keys There are 5 hard keys on the RR-1070 for the most commonly accessed functions. • Power ON/OFF •...

  • Page 8: Configuration And Set Up

    Brand Name Select one of the preprogramming control code sets by selecting a brand name. • Turn on the device you want the RR-1070 to control before you start this setup procedure. • Touch the hot key to go to the Main Menu page.

  • Page 9: Enter Code

    Select a preprogramming control code set by entering the control code set number. Refer to the enclosed code list to see if the device you wanted to control is listed. • Turn on the device you want the RR-1070 to control before you start this setup procedure. • Touch the hot key to go to the Main Menu page.

  • Page 10: Auto Search

    RR-1070 Auto Search Select a preprogramming code by searching through the library. • Turn on the device you want the RR-1070 to control before starting this setup procedure. • Touch the hot key to go to the Main Menu page.

  • Page 11: Dual Signal Learning

    • Touch one of the device keys,. (e.g. TV), to select the kind of device you want to program. • Touch or press the key on the RR-1070 you want to reprogram. The Learning page appears. • Point the original remote at the front of the RR-1070. Press and hold the key on the original remote until the key naming page shows on the RR-1070.

  • Page 12: Advanced Set Up

    RR-1070 Advanced Set Up Editing Key Labels The letter and symbols shown on most of the soft keys can be changed. During the editing process you will go to the Device Name or Key Name editing pages. In this page the top window is the editing box.

  • Page 13: Moving A Key

    English • If you selected KEY NAME you go to the Key Name device selec- tion page. Touch one of the devices. You will go to the first page for that device. • If necessary use to go to other pages for that device. Touch the key you want to change.

  • Page 14: Rearranging Home Screen Device List

    RR-1070 • Touch the key you want the first key to exchange positions with. If necessary use to go to other pages for that device. Re- member the keys must be the same type and size. • The second Move Key confirmation page appears showing the two keys chosen to exchange positions.

  • Page 15: Preference Settings

    Volume/Mute Control Punch Through The Punch Through feature lets you control the volume and muting of the TV or ROTEL AMP devices even when the RR-1070 is in another device mode. For example, you can make the RR-1070 volume and mute controls affect the TV when the DVD device mode is selected.

  • Page 16: Remote Setting

    • Touch OK to accept the day displayed. Or touch BACK to cancel the process and return to the previous page. Beep Sound The RR-1070 can emit a short beep tone when a key is touched or pressed. This feature can be turned on or off. • Touch the hot key to go to the Main Menu.

  • Page 17: Password

    English Password If you want to prevent others from changing the settings of the RR-1070 you can enable the Password System. Once the Password System is en- abled the password must be entered before you can access any of the sub- menus on the Main Menu page.

  • Page 18: Clear Learning

    RR-1070 Clear Learning Touch this key to delete learned IR commands and restore the factory original commands. If there was no command in the original configuration this step leaves the key with no IR command programmed. • From the Reset Default menu touch CLEAR LEARNING. The Clear Learning page is displayed.

  • Page 19: Device Rename

    English • Or touch the hot key to stop the process and return to the corresponding page. • If you touch ONE DEVICE a device selection page is shown. Touch to select a device. A “Clear all Renamed keys in this device?” mes- sage is displayed.

  • Page 20: Move Device

    RR-1070 • If you touch ONE DEVICE a device selection page is shown. Touch to select a device. A “Clear all Moved keys in this device?” message is displayed. • Touch YES to confirm. A “Restore is completed!” message is dis- played.

  • Page 21: All To Default

    Smart Key Programming The Smart Key feature of the RR-1070 allows to send a series of com- mands to one or more devices. For example you might want to create a Smart Key that turns on the TV set, selects channel 5, turns on the surround processor, and selects the TV input.

  • Page 22: Program A New Smart Key Command

    Before you program a Smart Key be sure that all of the control commands you want to use are preprogramming or have been learned by the RR-1070. The Smart Key feature simply allows you to record a sequence of indi- vidual RR-1070 commands and play them back when you touch the Smart Key.

  • Page 23: Deleting A Smart Key

    Cloning the RR-1070 Commands Once you have an RR-1070 programed as you want, you can copy all of the commands for a single device or for all the devices to another RR-1070. NOTE: The process can only be done with two RR-1070 remotes.

  • Page 24: Copy One Device

    • All user settings except Clock and Password will be sent out via IR linking. PC Link The PC link enables you to connect the RR-1070 to a PC via a USB port to upload and download commands. The PC-to-remote data upload/down- load function requires the RR-1070 docking package which is available from the Rotel distributor for an additional cost.

  • Page 25: Troubleshooting And Common Questions

    A: Carefully follow the instructions in the Restore Factory Settings section. Q: What is Smart Key? A: The Smart Key feature of the RR-1070 enables you to program a se- ries of commands, with or without necessary time delays. When you touch a programmed Smart Key the RR-1070 sends a chain of IR sig- nals automatically.
  • Page 26 RR-1070 Q: What is Cloning? A: The Cloning feature enables you to transfer data from one RR-1070 to another. This can only be done between two RR-1070 units. See the Cloning the RR-1070 Commands section. Q: What is PC Link? A : The PC Link feature enables you to upload and download remote set- ting data to and from your Personal Computer.

  • Page 27: Specifications

    Preprogrammed with code library of Televisions (TVs), Video Cassette Recorders (VCRs), Satellite/Digital Satellite Receivers (SAT/DSS), Cable Converters (CTVs), Laser Disc Players (LDs), Compact Disc Players (CDs), Digital Video Disc Players (DVDs) and Rotel Tuner/Amplifier (ROTEL) Memory Capacity: 240 learned commands Memory Retention After Battery Removal:...

  • Page 28: Control Codes

    RR-1070 Control Codes Akai 0331 Osaki 0271 Alba 0431 Panasonic 0191, 0251 Amstrad 0481 Penny 0161, 0351, 0361, Anam 0251 0521, 0531 0361 Philco 0361, 0581, 0591, Bauer 0441 0601 Candle 0351, 0361 Philips 0401 Centurion 0411 Pioneer 0511, 0551...
  • Page 29 English Control Codes Akai 0262 Samsung 0212, 0312 Audio Dynamics 0202 Sanky 0472, 0512 Blaupunkt 0412 Sansui 0292, 0542 Candle 0342 Sanyo 0242 Citizen 0342 0282 Curtis Mathes 0342 Scott 0342 0202 Sears 0302, 0342, 0592 Dynatech 0342, 0472 0602 Emerson 0072, 0122, 0132, Sharp...
  • Page 30 RR-1070 Control Codes SAT/DSS/CBL 0253, 0373 1053 Akiba 0963 ITT/Nokia 1163 Alba 0963 Jerrold 0253, 0433, 0593, Allsat 0923 0603, 0613, 0803 Alpha star 0773 0823 Amstrad 1143 1033 Ansonic 0953 1023 Antronix 0133 Kathrein 0923 Archer 0133, 0283 Luxor...
  • Page 31 English Control Codes RCA Digital Satellite System 0393, 0403 Realistic 0133 Regency/Eastern 0683 0923 Runco 0383 Saba 1033, 1113 Sabre 0963 Sagem 0963, 1183 Salora 1053 Samsung 0273 Schneider 0983, 1113 Scientific atlanta 0363, 0563, 0573 0583 Sedea 0863, 0873, 0883 Signal 0273 0893...
  • Page 32 RR-1070 Control Codes Acoustic Research 1346 0306, 0956, 1016 0076 ,0116 Nikko 0596, 1056 Adcom 0256 ,0306 ,1066 Onkyo 0206, 0506, 0546, 0316 0856, 1206 Aiwa 0346 ,0996 ,1086, Optimus 0276, 0296, 0606, 1106 0646, 0896, 0906, Akai 0226, 0536, 0586...
  • Page 33 English Control Codes Tangberg 1246 Teac 0286, 0386, 0436, 0576, 0846, 0886, 1406 Technics 0106, 0656, 1146 Techwood 1376 Telefunken 0556 Thomson 0556 Toshiba 0086, 0736 Vector Research 0116, 1186 Victor 0366 Wards 0226 Yamaha 0056, 0066, 0136, 0466, 0596, 0626, 1116...
  • Page 34 RR-1070 Control Codes Akai 0068 Aiwa 0177 Denon 0167 Denon 0208 Disco Vision 0037 Finlux 0278 Goldstar 0278 Funai 0177 Hitachi 0037 Grundig 0288 Kenwood 0107, 0127 Hanseatic 0278 Magnavox 0047 Harman/Kardon 0318 Hitachi 0308, 0338, 0378 Marantz 0047 Mitsubishi...
  • Page 35 English Control Codes Rotel (Amp/Tuner) RA-02 0005 RA-1060 0005 RA-1062 0005 RA-1070 0015 RA-972 0005 RC-1070 0005 RC-1090 0015 RSDX-02 (EUR) 0025 RSDX-02 (US) 0035 RSP-1066 0065 RSP-1098 0065 RSX-1055 0045 RSX-1065 0045 RX-1050 0055...
  • Page 36 RR-1070 The Rotel Co. Ltd. 10-10 Shinsen-Cho Shibuya-Ku Tokyo 150-0045 Japan Phone: +81 3-5458-5325 Fax: +81 3-5458-5310 Rotel of America 54 Concord Street North Reading, MA 01864-2699 Phone: +1 978-664-3820 Fax: +1 978-664-4109 Rotel Europe Dale Road Worthing, West Sussex BN11 2BH...
