Rotel RR-1090 Owner's Manual

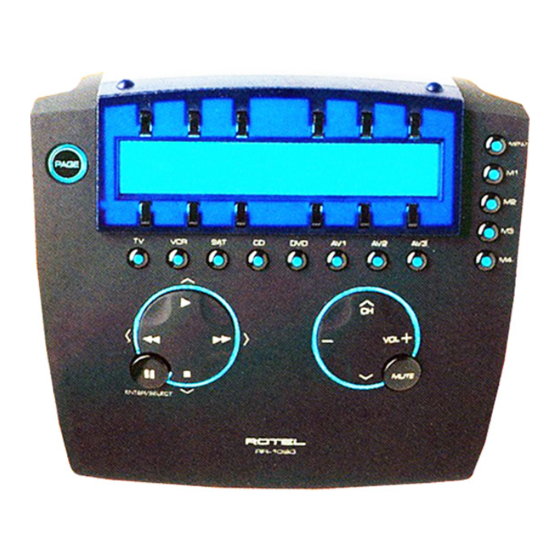

Rotel universal remote control owner's manual
Hide thumbs Also See for RR-1090:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Owner's Manual
MENU
POWER
CD
TUNER
PHONO
TAPE1
TAPE2
AV1
PAGE
M1
OFF
AV1
AV2
AV3
AV4
AV5
M2
M3
TV
VCR
SAT
CD
DVD
AV1
AV2
AV3
M4
CH
VOL
MUTE
ENTER/SELECT
RR-1090
Universal Remote Control

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RR-1090 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rotel RR-1090

Summary of Contents for Rotel RR-1090

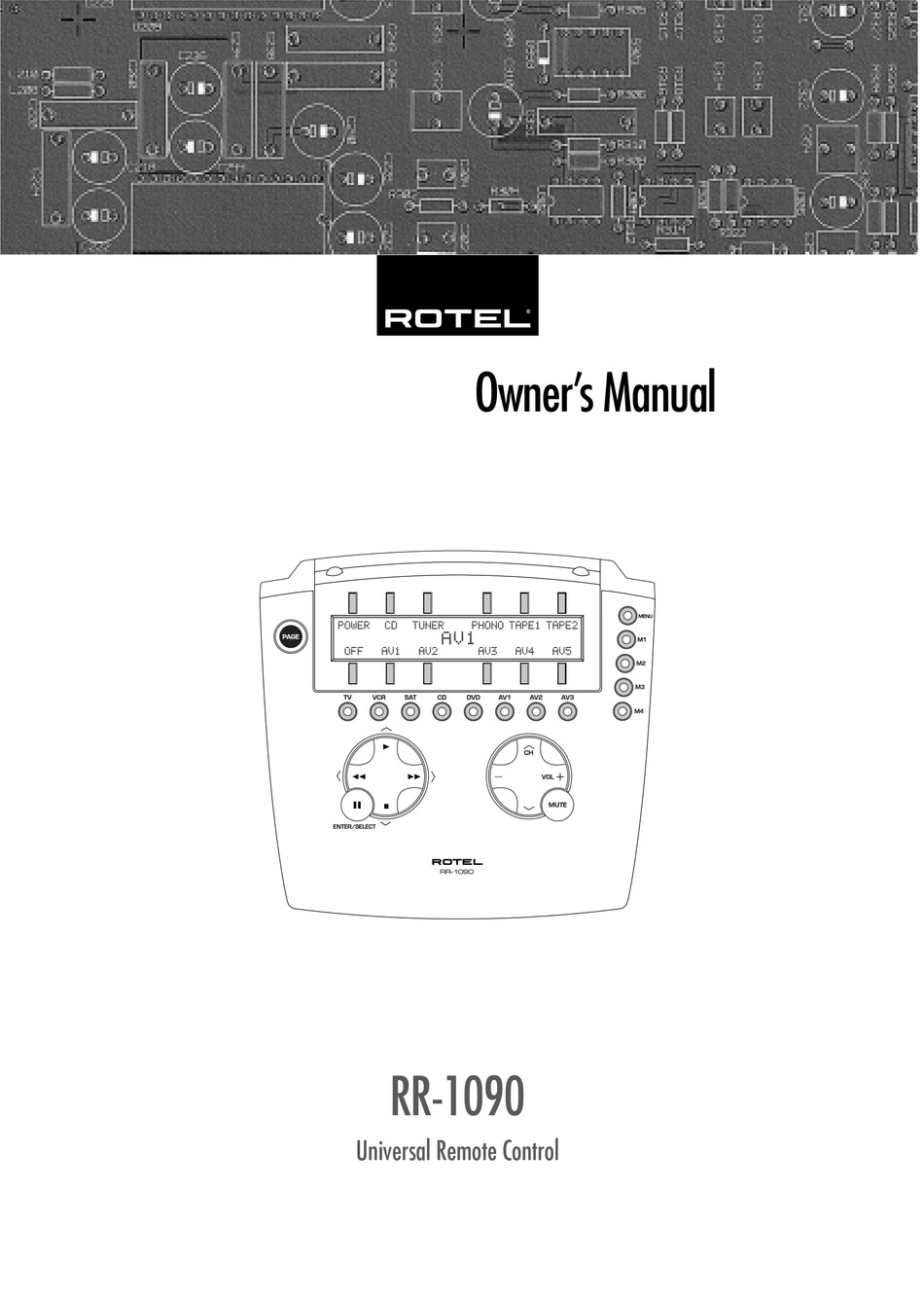

  • Page 1 Owner’s Manual MENU POWER TUNER PHONO TAPE1 TAPE2 PAGE MUTE ENTER/SELECT RR-1090 Universal Remote Control...

  • Page 2: Layout

    RR-1090 1. Layout MENU POWER TUNER PHONO TAPE1 TAPE2 PAGE MUTE ENTER/SELECT POWER...
  • Page 3 English...

  • Page 4: Learning

    RR-1090 2. Learning POWER TUNER PHONO TAPE1 PAGE ENTER/SELECT 3. Sample Device Pages MENU TAPE2 MUTE POWER TUNER PHONO TAPE1 PAGE PAGE MENU CENTR SUBWF REAR SUR+ BACK ENTER FORWD SHIFT ZONE PAGE PRSET PSCAN AUTUN DSPLY FILTR FRQDT TAPE2...

  • Page 5: Pc-Link Software

    English 4. PC-Link Software...

  • Page 6: Table Of Contents

    LCD Display PAGE Button MACRO Buttons Menu Button Power Button Serial Connector Operating the RR-1090 ... 9 Activating the RR-1090 Sending IR Commands Sending Macro Commands Programming Command Codes ... 9 4-Digit Code Programming Search Code by Brand Name...

  • Page 7: Introduction

    RR-1090 includes command sets for hundreds of au- dio/video components plus it can learn additional commands from your existing remotes. Operation of the RR-1090 is simple and intuitive using just a few buttons and a large LCD menu display. Key Features •...

  • Page 8: Device Buttons

    DEVICE button. Menu Command Keys and LCD Display At the top of the RR-1090 is a group of 12 rectan- gular buttons surrounding an LCD display. These MENU COMMAND keys provide additional func- tions shown by menu labels appearing in the dis- play adjacent to each button.

  • Page 9: Operating The Rr-1090

    CD player or the remote control for your TV set and send com- mands to operate the desired component. Here’s how: 1. Press any button on the RR-1090 to activate the remote (if necessary). 2. Press a DEVICE button mand set for the desired component.

  • Page 10: 4-Digit Code Programming

    The prompt “press POWER key to test” appears in the display 7. Press the POWER button on the right side of the RR-1090 to test the first available code for your brand. The 4-digit code being tested is shown in the display.

  • Page 11: Learning Commands

    Step 5. When a code is successfully learned, the RR-1090 will prompt you to edit the label it has as- signed to the command. Select NO to keep the current label. Select YES to edit the label and enter the desired letters (using the M3 or M4 buttons to move to the next page of letters).

  • Page 12: Custom Device Page

    RR-1090 5. Enter the new label for the MENU COMMAND keys corresponding to the letters in the display (using the M3 or M4 but- tons to move to the next page of letters). Labels can be up to 5 characters long. After entering the label, press the MENU button to store it.

  • Page 13: Volume Punch-Through

    6. Press the MENU button to return to the main menu. RESET Function You can return the RR-1090 to its original factory programming at anytime by using the RESET func- tion. : Using the RESET function erases all learned NOTE commands, labels, and configuration settings.

  • Page 14: Custom Labels

    SENDING prompt appearing in the display. At the completion of the transfer procedure a con- firmation will appear on the sending RR-1090: • If the data transfer is successful, “FINISH SENDING” appears. • If the data transfer fails, “SENDING ER- ROR”...

  • Page 15: Auto-Arrange Command Names

    5. Select one of three backlighting modes from the LCD display. Beep Sound The RR-1090 has a keytone feature that beeps to confirm each button press. This feature can be en- abled (default) or disabled. To configure the beep sound: 1.

  • Page 16: Pc-Link Software

    PC-Link Software The Windows ® 95/98 PC-LINK software provided with the RR-1090 remote can be used to work with complete configuration files for the RR-1090 remote. These configuration files contain a complete set of options, command sets, macros, and custom labels to fully customize a RR-1090 remote.

  • Page 17: Uploading And Downloading Configuration Files

    The PC-LINK software can be used to see the cur- rent settings of an open configuration file and modify many of them. The modified configuration file can then be saved to a disk or downloaded to a RR-1090. Here are the available options in the PC-LINK soft- ware: To select a DEVICE to be viewed or modi- fied, chose the device from the DEVICE menu.
  • Page 18 RR-1090 To delete a KEY, click the desired key in the main screen and select DELETE KEY from the EDIT menu. Click YES or NO to confirm. To rearrange the KEYS for the current de- vice, select ARRANGE KEY from the EDIT. You can...

  • Page 19: 4-Digit Codes

    4-Digit Codes A/V Device Codes ROTEL 0005, 0015, 0025, 0035 YAMAHA 0045, 0055, 0065 TV Device Codes AKAI 0331 ALBA 0431 AMSTRAD 0481 ANAM 0251 0361 BAUER 0441 CANDLE 0351, 0361 CENTURION 0411 CITIZEN 0351, 0361 COLORTYME 0361 CONCERTO 0351...

  • Page 20: Vcr Device Codes

    RR-1090 VCR Device Codes AKAI 0262 AUDIO DYNAMICS 0202 BLAUPUNKT 0412 CANDLE 0342 CITIZEN 0342 CURTIS MATHES 0342 0202 DYNATECH 0342, 0472 EMERSON 0072, 0122, 0132, 0142, 0152, 0162, 0172, 0182, 0192, 0212, 0342 GOLDSTAR 0082 GOODMANS 0402 HITACHI 0102, 0562, 0572, 0582,...

  • Page 21: Dvd Device Codes

    0356, 0986, 1096 PROTON 0266, 1236 QUASAR 0106 0256, 0966, 1166 REALISTIC 0256, 0276, 0286, 0376, 0606, 0896 REVOX 1226 ROTEL 0006, 0016, 0026, 0036, 0046, 0266 SABA TELECOMMANDER 0556 0266 SAMSUNG 1336 SANSUI 0266, 0676, 1026, 1076, 1156 SANYO...

  • Page 22: Sat/Dss Device Codes

    RR-1090 SHARP 0147 SONY 0067, 0077, 0137 VICTOR 0117 YAMAHA 0027, 0087 SAT/DSS Device Codes 0253, 0373 ALPHA STAR 0773 ANTORONIX 0133 ARCHER 0133, 0283 0073 CABLETIME 0163 CANAL + 0863 CLYDE CABLEVISION 0193 COLOUR VOICE 0303, 0343 COMTRONICS 0213, 0273...
  • Page 23 English...
  • Page 24 082 OM-RR-1090 English 101100 The Rotel Co. Ltd. 10-10 Shinsen-Cho Shibuya-Ku Tokyo 150-0045 Japan Phone: +81 3-5458-5325 Fax: +81 3-5458-5310 Rotel of America 54 Concord Street North Reading, MA 01864-2699 Phone: +1 978-664-3820 Fax: +1 978-664-4109 Rotel Europe Meadow Road...
