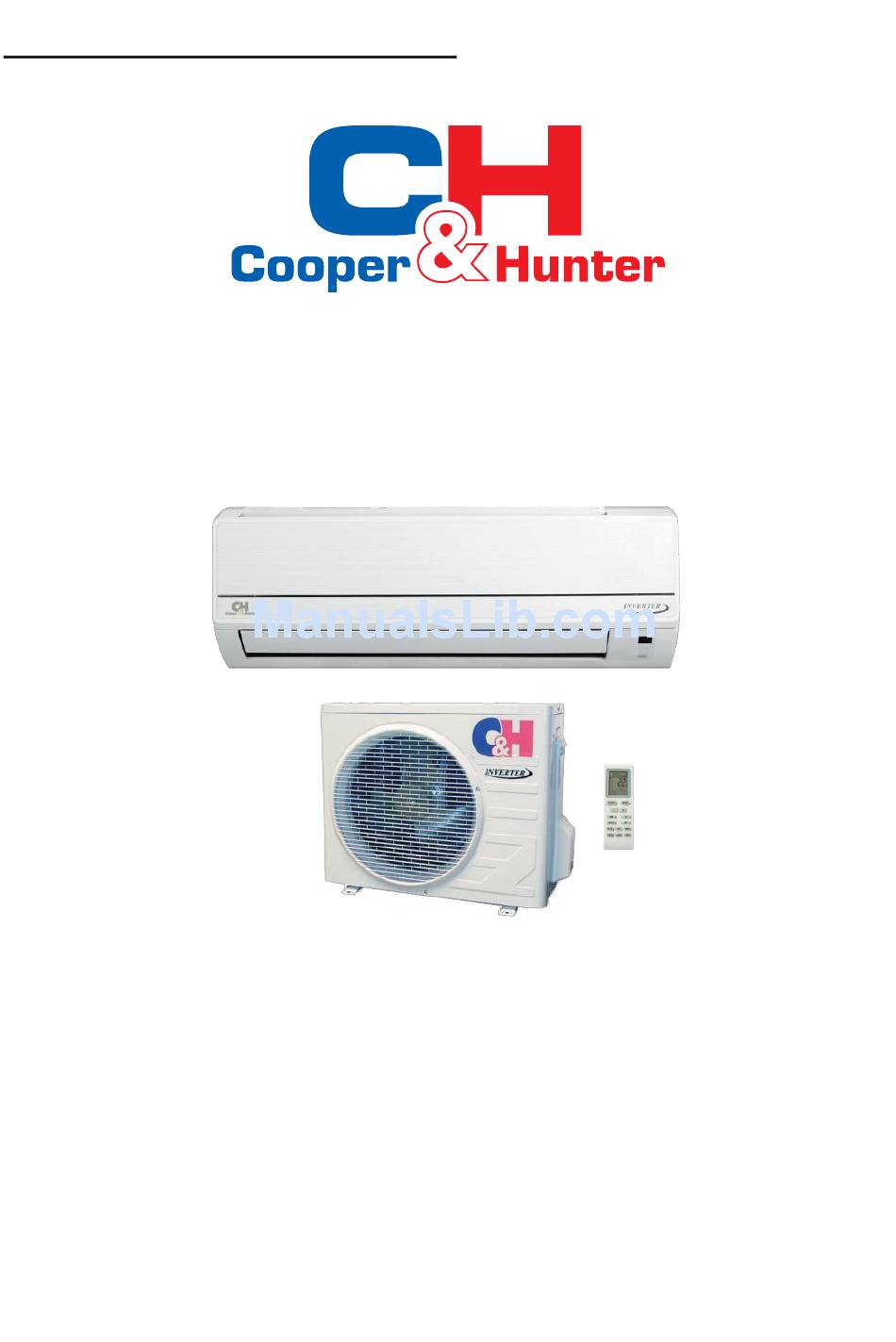

- Page 1 O W N E R ' S M A N U A L C & H A IR C O N D I T I O N E R S Split Air Conditioner INVERTER SERIES MODELS: CH-S09FTXG CH-S12FTXG СH-S18FTXG CH-S24FTXG Thank you for selecting С&H air conditioners.
-
Page 2: Table Of Contents
CONTENTS Operation and maintenance ■ Notices for operation ...............1 ■ Notices for use ................3 ■ Names and functions of each part ..........5 ■ Operation of wireless remote control ..........6 ■ Clean and care ................11 ■ Troubleshooting ................13 This symbol stands for the items This symbol stands for the items should be forbidden. -
Page 3: Operation And Maintenance
Operation and maintenance-notices for operation ★ ★ ★ Be sure to pull out the power Select the most appropriate tem- Earth: The ground be connected! perature. plug when not using the air co- nditioner for a long time. Keep room coo- er than outside about 5 degree. - Page 4 Notices for operation ★ ★ If the supply cord is damaged, it must be replaced The airflow direction can be adjusted appropriately. by the manufacturer or its service agent or a similarly qualified person in order to avoid a At operating, adjust the vertical airflow direction by hazard.
-
Page 5: Notices For Use
Notices for use Working principle and special functions for cooling Principle: Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that indoor ambient temperature decreased, its cooling capacity will increase or decrease by outdoor ambient temperature. Anti-freezing function: If the unit is running in COOL mode and in low temperature, there will be frost formed on the heat exchanger, when indoor heat exchanger temperature decreased below 0 ℃... -
Page 6: Working Temperature Range
Notices for use Working temperature range Indoor sideDB/WB( Outdoor sideDB/WB( Maximum cooling 32/23 48/- 21/15 Minimum cooling 10/- Maximum heating 27/--- 24/18 Minimum heating 20/--- -15/- The operating temperature range (outdoor temperature) for cooling unit is 10℃~48℃； for cooling and heating unit is -15℃ ~ 48℃. -
Page 7: Names And Functions Of Each Part
Names and functions of each part Indoor unit Air in ⑴ ⑶ ⑺ ⑹ ⑷ ⑸ Air out The pattern in displayer： ⑵ ：Cool ：Dry Wireless ：Fan (1)Power cable remote control ：Heat (2)Remote control ：Run (3)Front panel ：Set temp (4)Filter (5) Guide louver Outdoor unit (6)Wall pipe... -
Page 8: Operation Of Wireless Remote Control
Operation of wireless remote control Names and functions of wireless remote control Note: Be sure that there are no obstructions between receiver and remote controller; Don't drop or throw the remote control; Don't let any liquid in the remote control and put the remote control directly under the sunlight or any place where is very hot. -
Page 9: Names And Functions Of Wireless Remote Control
Operation of wireless remote control Names and functions of wireless remote control Notice: This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model dosen't have, if press the corresponding button on the remote controller that the unit will keep the original running status. - Page 10 Operation of wireless remote control Names and functions of wireless remote control Notice: This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model dosen't have, if press the corresponding button on the remote controller that the unit will keep the original running status.
- Page 11 Operation of wireless remote control Guide for operation- General operation 1. After powered on, press ON/OFF button, the unit will start to run.(Note: When it is powered off, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode, or press COOL or HEAT mode to enter into the corresponding operation directly.
- Page 12 Operation of wireless remote control ★ About lock Press +and - buttons simultaneously to lock or unlock the keyboard. If the remote controller is locked, the icon will be displayed on it, in which case, press any button, the mark will flicker for three times.
-
Page 13: Clean And Care
Clean and care Caution Turn power off and pull out the power plug before cleaning air conditioner, or it may cause electric ● shock. Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause an ●... - Page 14 Clean and care Check before use ① Be sure that nothing obstructs the air outlet and intake vents. ② Check that whether ground wire is properly connected or not. ③ Check that whether the batteries of air conditioner are changed or not. ④...
-
Page 15: Troubleshooting
Troubleshooting CAUTION Don't attempt to repair the air conditioner by yourself, it can cause an electric shock or fire. Please check the following items before asking for repair, it can save your time and money. Phenomenon Troubleshooting Not operate immediately when the air ●... - Page 16 Troubleshooting Phenomenon Troubleshooting ● Has the power been shut down? The unit can not run. ● Is power plug loosed? ● Is the circuit protection device tripped off or not? ● Is voltage higher or lower? (Tested by professionals) Breaking off ●...
