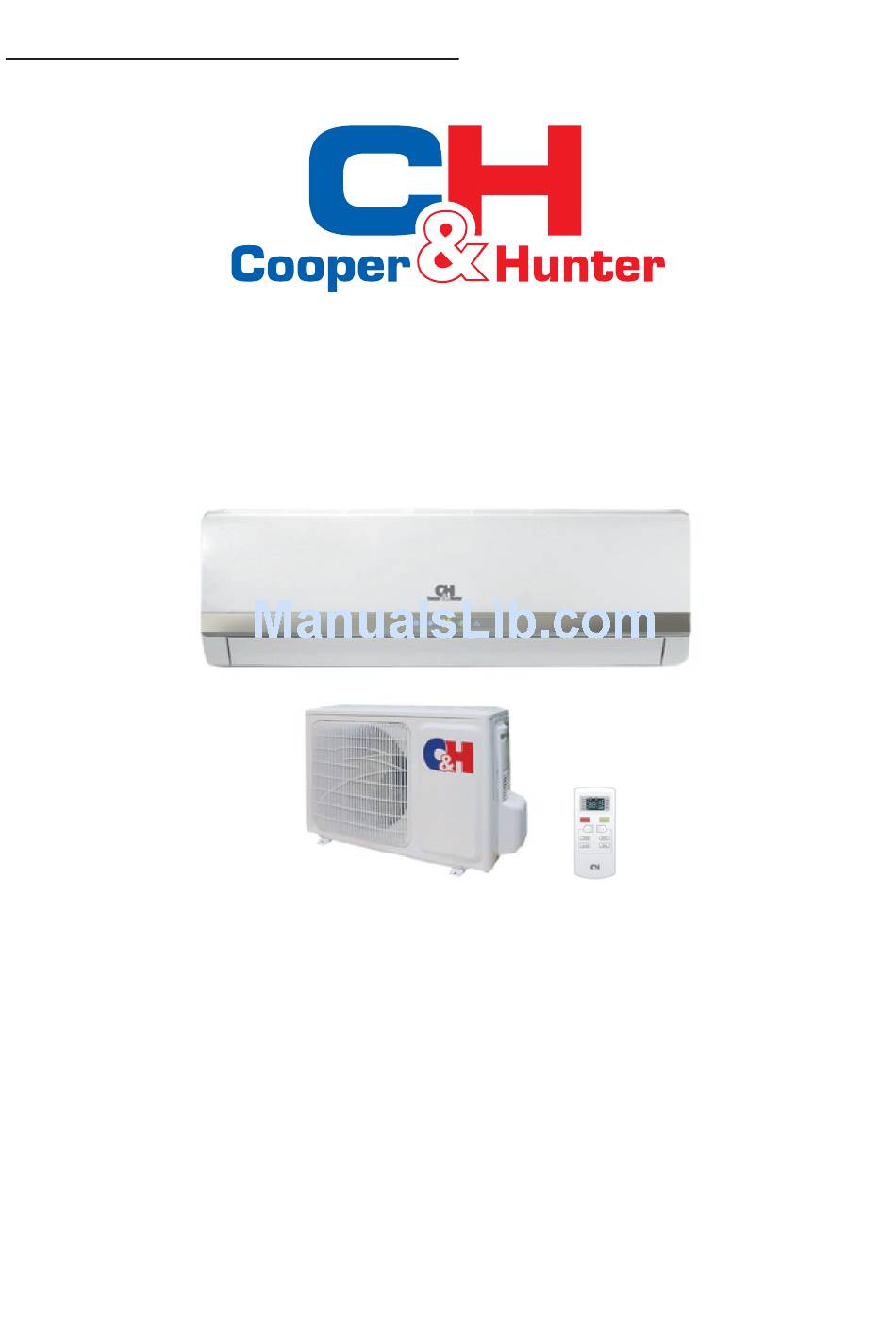

O W N E R ' S M A N U A L
M A N U A L
C & H A IR C O N D I T I O N E R S
Thank you for selecting С&H air conditioners. Please read this manual
Thank you for selecting С&H air conditioners. Please read this manual
carefully before operation and keep it for further reference.
carefully before operation and keep it for further reference.

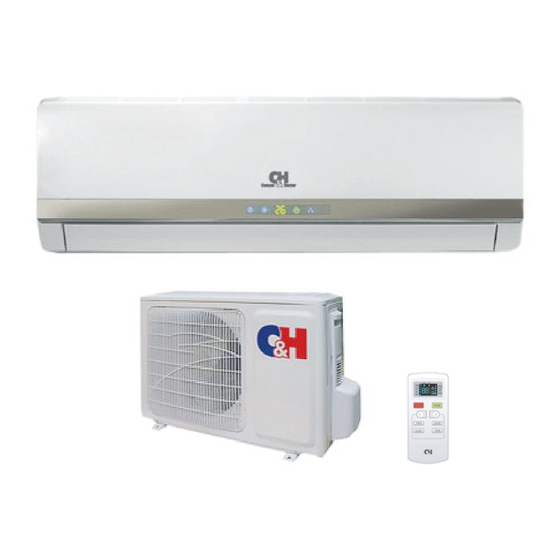

Split Air Conditioner
COZY SERIES
MODELS:
CH-S07LH/R2
CH-S09LH/R2
CH-S12LH/R2
СH-S18LH/R2
CH-S24LH/R2
Advertisement
Table of Contents
Related Manuals for C&H COZY SERIES
Summary of Contents for C&H COZY SERIES
- Page 1 O W N E R ' S M A N U A L M A N U A L C & H A IR C O N D I T I O N E R S Split Air Conditioner COZY SERIES MODELS: CH-S07LH/R2 CH-S09LH/R2 CH-S12LH/R2 СH-S18LH/R2...
-
Page 2: Table Of Contents
CONTENTS Operation and maintenance ■ Notices for operation ...............1 ■ Notices for use ................3 ■ Names and functions of each part ..........5 ■ Operation of wireless remote control ..........6 ■ Clean and care ................10 ■ Troubleshooting ................12 This symbol stands for the items This symbol stands for the items should be forbidden. -
Page 3: Operation And Maintenance
Operation and maintenance-notices for operation ★ ★ ★ Earth: The ground Select the most appropriate Be sure to pull out the power temperature. be connected! plug when not using the air conditioner for a long time. Keep room cool- er than outside about 5 degree. - Page 4 Notices for operation ★ ★ If the supply cord is damaged, it must be replaced The airflow direction can be adjusted appropriately. by the manufacturer or its service agent or a similarly qualified person in order to avoid a At operating, adjust the vertical airflow direction by hazard.
-
Page 5: Notices For Use
Notices for use Working principle and special functions for cooling Principle: Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that indoor ambient temperature decreased, its cooling capacity will increase or decrease by outdoor ambient temperature. Anti-freezing function: If the unit is running in COOL mode and in low temperature, there will be frost formed on the heat exchanger, when indoor heat exchanger temperature decreased below 0 ℃... -
Page 6: Working Temperature Range
Notices for use Gentle Breeze In the following situation, the indoor unit may blow gentle breeze, and the guide louver rotate to a certain position: 1. In “Heat” mode, the unit turned on, the compressor doesn’t arrive the starting condition. 2. -
Page 7: Names And Functions Of Each Part
Names and functions of each part Indoor unit Air in ⑴ ⑶ ⑺ ⑹ ⑷ ⑸ Air out The pattern in displayer： ⑵ ：Cool ：Dry (1)Power cable Wireless ：Heat (2)Remote control remote control ：Run (3)Front panel ：Set temp. (4)Filter (5) Guide louver (6)Wall pipe Outdoor unit (7)Bind tape... -
Page 8: Operation Of Wireless Remote Control
Operation of wireless remote control Names and functions of wireless remote control Note: Be sure that there are no obstructions between receiver and remote controller; Don't drop or throw the remote control; Don't let any liquid in the remote control and put the remote control directly under the sunlight or any place where is very hot. -
Page 9: Timer Button
Operation of wireless remote control Names and functions of wireless remote control Notice: This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model dosen't have, if press the corresponding button on the remote controller that the unit will keep the original running status. - Page 10 Operation of wireless remote control Guide for operation- General operation 1. After powered on, press ON/OFF button, the unit will start to run.(Note: When it is powered on, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode. 3.
- Page 11 Operation of wireless remote control Changing batteries and notices Slightly to press the place to take out the back cover of wireless remote control.(As shown in figure) Take out the old batteries. (As show in figure) Insert two new AAA1.5V dry batteries, and pay attention to the polarity. (As show in figure) Attach the back cover of wireless remote control.
-
Page 12: Clean And Care
Clean and care Caution Disconnect the power supply before cleaning air conditioner, or it may cause electric shock. Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause an electric shock. Volatile liquid (e.g. thinner or gasoline) will damage the air conditioner. (So wipe the units with a dry soft cloth, or a cloth slightly moistened with water or cleanser.) Clean the front panel ℃... - Page 13 Clean and care Check before use ① Be sure that nothing obstructs the air outlet and intake vents. ② Check that whether ground wire is properly connected or not. ③ Check that whether the batteries of air conditioner are changed or not. ④...
-
Page 14: Troubleshooting
Troubleshooting CAUTION Don't attempt to repair the air conditioner by yourself, it can cause an electric shock or fire. Please check the following items before asking for repair, it can save your time and money. Phenomenon Troubleshooting Not operate immediately when the air ●... - Page 15 Troubleshooting Phenomenon Troubleshooting ● Has the power been shut down? The unit can not run. ● Is power plug loosed? ● Is the circuit protection device tripped off or not? ● Is voltage higher or lower? (Tested by professionals) Breaking off ●...
- Page 16 Troubleshooting Phenomenon Troubleshooting ● Indoor unit cannot deliver air. In HEAT mode, when the temperature of indoor heat exchanger is very low, that will stop deliver air in order to prevent cool air. (Within 2min) ● In HEAT mode, when the outdoor temperature is low or high humidity, there are much frost be formed on the outdoor heat exchanger, that the unit will automatically defrost, indoor unit stop...
