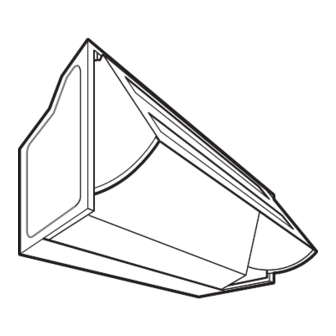

CHDE 3160
Cooker hood
Operating and Installation Instructions

Advertisement

Table of Contents
loading

Related Manuals for AEG CHDE 3160

Summary of Contents for AEG CHDE 3160

  • Page 1 CHDE 3160 Cooker hood Operating and Installation Instructions...

  • Page 2: Table Of Contents

    Contents Safety warnings For the User For the Installer Description of the Appliance Extractor version Filter Version Control Panel Maintenance and care Cleaning the hood Metal grease filter Removing the metal grease filter Charcoal filter Changing the light bulb What to do if Service and Spare Parts Guarantee Conditions Technical Specifications...

  • Page 3: Safety Warnings

    Safety warnings For the User • The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam. • Always cover lighted elements, to prevent excess heat from damaging the appliance. In the case of oil, gas and coal fired cookers it is essential to avoid open flames.
  • Page 4 • When the unit is used in its extractor version, a sufficiently large ventilation hole must be provided, with dimensions that are approximately the same as the outlet hole. • National and regional building regulations impose a number of restrictions on using hoods and fuel-burning appliances connected to a chimney, such as coal or oil room-heaters and gas fires, in the same room.

  • Page 5: Description Of The Appliance

    Description of the Appliance • The hood is supplied as an extractor unit and can also be used with a filtering function by fitting one charcoal filter. • You will need an original AEG charcoal filter for this function (Available from your local AEG Service Force Centre). Extractor version •...

  • Page 6: Filter Version

    Filter Version • The air is filtered through a charcoal filter and returned to the kitchen. • You will need an original AEG charcoal filter for the filtering function. (Available from your local AEG Service Force Centre). • Remove the grease filters, first pull the handles upwards, then extract the filter outwards.

  • Page 7: Control Panel

    Control Panel • Best results are obtained by using a low speed for normal conditions and a high speed when odours are more concentrated. Turn the hood on a few minutes before you start cooking, you will then get an under pressure in the kitchen. The hood should be left on after cooking for about 15 minutes or until all the odours have disappeared.

  • Page 8: Maintenance And Care

    Maintenance and care • The hood must always be disconnected from the electricity supply before beginning any maintenance work. Cleaning the hood • Clean the outside of the hood using a damp cloth and a mild deter- gent. • Never use corrosive, abrasive or flammable cleaning products. •...

  • Page 9: Charcoal Filter

    Dishwasher Place grease filters in dishwasher. Select the most powerful washing programme and highest temperature, at least 65°C. Repeat the process. Refit the grease filters when they are dry. When washing the metal grease filter in the dishwasher a slight discolouration of the filter can occur, this does not have any impact on its performance.

  • Page 10: Changing The Light Bulb

    Warning • Failure to observe the instructions on cleaning the unit and changing the filters will cause a fire hazard. You are therefore strongly recommended to follow these instructions. • The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

  • Page 11: What To Do If

    What to do if If your appliance fails to work properly please carry out the following checks. Symptom Solution The cooker hood will not start... Check that: The hood is connected to the electricity supply. Check that the fan speed control is set to 1, 2 or 3.

  • Page 12: Service And Spare Parts

    Service and spare parts In the event of your appliance requiring service, or if you wish to purchase spare parts, contact your local AEG Service Force Centre by telephoning 08705 929 929 Your call will be automatically routed to the Service Centre covering your post code area.

  • Page 13: Guarantee Conditions

    Guarantee conditions Guarantee Conditions AEG offer the following guarantee to the first purchaser of this appliance. 1. The guarantee is valid for 12 months commencing when the appliance is handed over to the first retail purchaser, which must be verified by purchase invoice or similar documentation.The guarantee does not cover commercial use.
  • Page 14 Before you move please contact your nearest Customer Care Centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

  • Page 15: Technical Specifications

    Technical Specifications Dimensions: (in cm): Height Width 59,9 Depth Maximum absorbed power: 200 W Motor absorption: 120 W Lighting: 2 x 40 W Length of the cable: 150 cm Mounting accessories included 1 Flange Ø 100 mm 1 Flange Ø 120 mm 2 Hooks 2 rails 1 Deflector...

  • Page 16: Installing The Hood Between Cupboards With Hanging Rails

    Installing the hood between cupboards with hanging rails • Remove the grease filters. Fig. 6. • Take off the visor G. Fig. 13. • Mount the two hanging rails directly underneath the edge of the cupboard using three screws 4,5 x 16 mm in each rail. Distance from first hole to front edge of the cupboards sides must be 153 mm.

  • Page 17: Installing The Hood To The Wall

    Installing the hood to the wall It is possible to fix the hood in position, if necessary, by only attaching it to the rear wall. Proceed as follows: • Drill four Ø 8mm holes on the wall as indicated. Fig. 10. 509,5 Fig.

  • Page 18: Fixing A Furniture Door To The Visor

    • Fix the base spacer M to the wall with the two screws R 5x45 provided using either the long or the short arm, depending on the depht of the side cupboards. Do not tighten the screws fully. Fig. 11. •...
  • Page 19 Fig. 13 • Draw a line with a pencil on the middle of the internal side of the furnituture door. Fig. 14. Fig. 14 • Fit the visor upon the internal side of the furniture door so that the line previously marked on it, is visible through the two triangles holes located on the mid upper and lower side of the visor, having care to respect the distance from the visor to the higher edge of the furniture door as for the reason mentioned above in Fig.
  • Page 20 AEG Hausgeräte GmbH Postfach 1036 D-90327 Nürnberg http://www.aeg.hausgeraete.de © Copyright by AEG LI1W1B Ed. 04/02...
