Summary of Contents for Electrolux ERB 3425

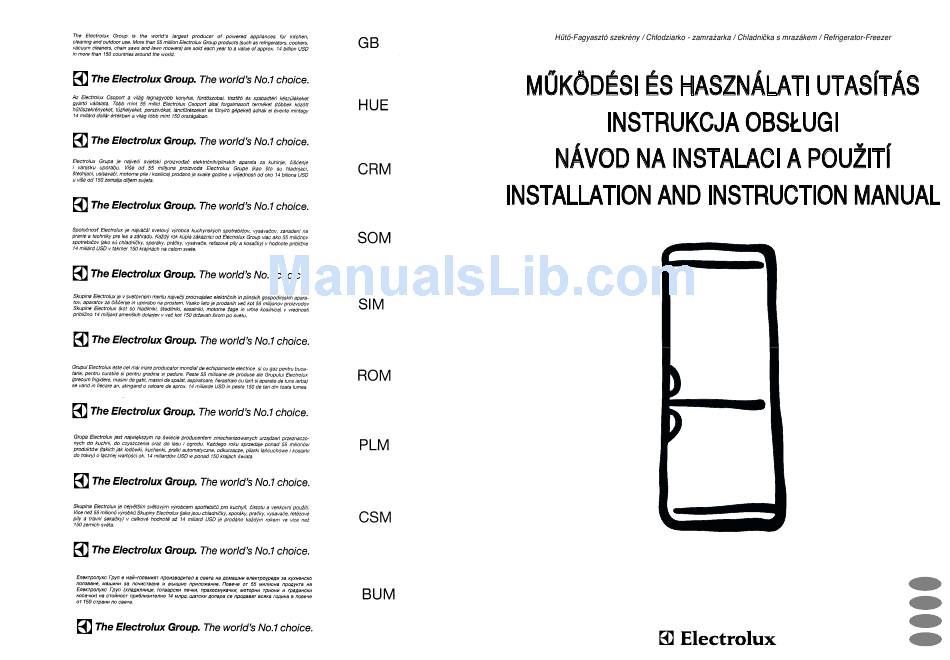

- Page 1 ERB 3425 2222 185-66...
- Page 2 Újrahasznosított papírra nyomtatva...
- Page 3 TARTALOMJEGYZÉK...
-
Page 4: Door Reversibility
Door reversibility Before carrying out any operations, remove the plug from the power socket. To change the opening direction of the door, proceed as follows: ALARM SUPER 1. pull off the ventilation grille (D) which is clipped into place; 2. remove the bottom hinge (E) by unscrewing its fixing screws;... -
Page 5: Rear Spacers
Rear spacers In the bag with the documentation, there are two spacers which must be fitted in the two top corners. Slacken the screws and insert the spacer under the screw head, then re-tighten the screws. D594 Electrical connection Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond to your domestic power supply. -
Page 6: Technical Information
TECHNICAL INFORMATION Modell ERB 3425 Gross Fridge Capacity lt. Net Fridge Capacity lt. Gross Freezer Capacity lt. Net Freezer Capacity lt. Dimensions (width*height*depth, cm) 200x60x62,5 Tension (V/Hz) 220-240/50 Energy Consumption (kWh/24h) 0,729 Freezing Capacity (kg/24h) Temperature increase time h Noise (dB/A) -
Page 7: Customer Service And Spare Parts
Noisiness Hereunder you will find some normal causes of noise that do not jeopardise normal functioning of the product. Brrrr Noise due to the adjustment of the unit’s structure Possible noise sources that are Compressor motor noise easy to eliminate: The appliance is not well levelled: Simply adjust the levelling foot. - Page 8 Defrosting Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.
-
Page 9: Maintenance
MAINTENANCE Periods of non-operation Unplug the appliance before carrying out When the appliance is not in use for long periods, any maintenance operation. take the following precautions: Warning remove the plug from the wall socket; This appliance contains hydrocarbons in its cooling unit;... -
Page 10: Hints For Refrigeration
HINTS Hints for refrigeration Hints for storage of frozen food Useful hints: To obtain the best performance from this appliance, you should: Meat (all types): wrap in polythene bags and place on the glass shelf above the vegetable drawer. • be sure that frozen foodstuffs are transferred For safety, store in this way only one or two days from the foodstore to the freezer in the shortest... -
Page 11: Bottle Holder
Bottle holder Place the bottles (with the opening facing front) in the pre-positioned shelf. If the shelf is positioned horizontally, place only closed bottles. This bottle holder shelf can be tilted in order to store previously opened bottles. To obtain this result, pull the shelf up so it can rotate upwards and be placed on the next higher level. -
Page 12: Use Of The Fridge
USE OF THE FRIDGE Important Operation If the ambient temperature is high or the ERB 3425 appliance is fully loaded, and the appliance is Insert the power supply plug into the nearest wall set to the lowest temperatures, it may run... -
Page 13: Storage Of Frozen Food
Storage of frozen food When first starting-up or after a period out of use, before putting the products in the compartment press the quick-freezing switch at least 12 hours before. If large quantities of food are to be stored, remove all drawers and baskets from appliance and place food on cooling shelves. -
Page 14: Use Of The Freezer
Cleaning the interior Do not use detergents or abrasive Before using the appliance for the first time, wash powders, as these will damage the finish. the interior and all internal accessories with luke- warm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly. -
Page 15: Environment Protection
• Do not place carbonated or fizzy drinks in the • There are working parts in this product which freezer as it creates pressure on the container, heat up. Always ensure that there is adequate which may cause it to explode, resulting in ventilation as a failure to do this will result in component failure and possible food loss. -
Page 16: General Safety
WARNINGS It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings.
