Electrolux EHS6610K Installation And Operating Instructions Manual

Ceramic glass hob
Hide thumbs

Advertisement

Quick Links

x
Download this manual
19
Installation Instructions
19
Technical Data
Table of Contents
G
Installation and Operating g
Monterings- og brugsanvisning
319 637 000-A-141002-04
C
e
r
a
m
l
a
s
k
e
r
a
Instructions
i
c
g
l
a
s
m
i
s
k
-
k
brugsanvisning
EHS6610K
s
h
o
b
o
g
e
z
o
n
e
g
k

Advertisement

loading

  Also See for Electrolux EHS6610K

Electrolux EHS6610K Installation And Operating Instructions Manual
Electrolux EHS6610K Installation And Operating Instructions Manual 18 pages

  Related Manuals for Electrolux EHS6610K

  Summary of Contents for Electrolux EHS6610K

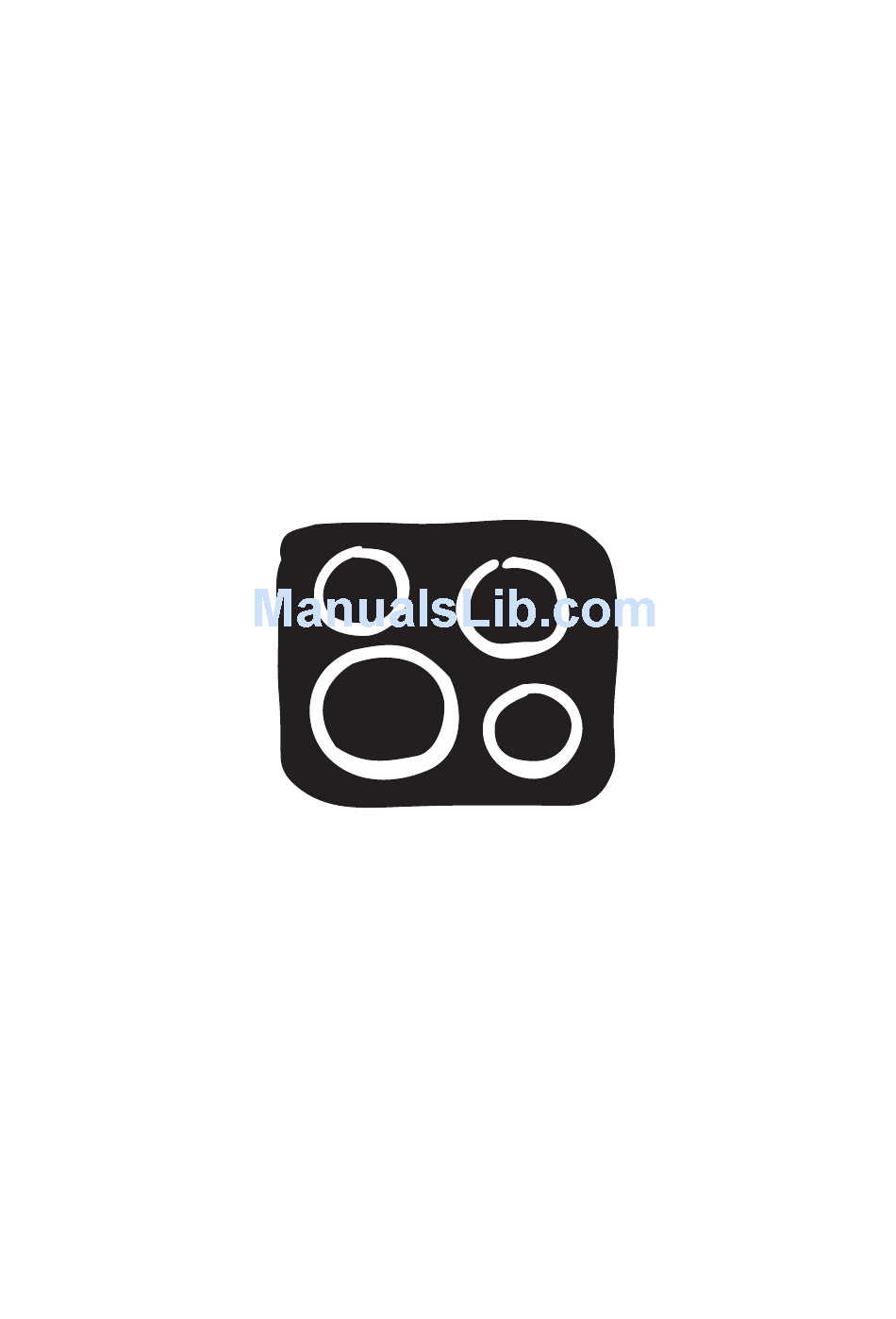

  • Page 1 Installation and Operating g Instructions Monterings- og brugsanvisning brugsanvisning EHS6610K 319 637 000-A-141002-04...

  • Page 2: Dear Customer

    Dear customer, Please read these operating instructions carefully. Pay particular attention to the section “Safety infor- mation” on the first few pages. Please retain these operating instructions for later reference. Pass them on to possible new owners of the appliance. The following symbols are used in the text: Safety instructions...

  • Page 3: Table Of Contents

    Contents Operating Instructions ............. Safety .

  • Page 4: Operating Instructions

    Operating Instructions ating Instructions Safety The safety aspects of this appliance comply with ac- Safety When Cleaning cepted technical standards and the German Appli- • For safety reasons do not clean the appliance with ance Safety Law. However, as manufacturers we a steam jet or high pressure cleaner.

  • Page 5: Disposal

    Disposal posal Disposing of the packaging material Disposal of old appliances All materials used can be fully recycled. Warning: Before disposing of old appliances Plastics are marked as follows: please make them inoperable so that they • >PE< for polyethylene, as used for the outer wrap- cannot be the source of danger.

  • Page 6: Description Of The Appliance

    Description of the Appliance f the Appliance Cooking zones and control panel Single-ring cooking zone Single-ring cooking zone 1800W 1200W Single-ring cooking zone Control panel Single-ring cooking zone 2300W 1200W Selected heat setting/ residual heat display Rear cooking zone selector Heat setting selection “+”...

  • Page 7: Digital Indicators

    Digital Indicators The rings are switched off at: • Heat setting 1 - 2 after 6 hours • Heat setting 3 - 4 after 5 hours Four display fields, one for each cooking zones show • Heat setting after 4 hours up as follows: •...

  • Page 8: Operating The Hob

    Operating the Hob ng the Hob When a cooking zone is switched on, it may hum briefly. This is a characteristic of all glass ceramic cooking zones and does not impair either the function or the life of the appliance. Touch Control Sensor Field To operate the Touch Control sensor field place your finger from above flat onto the required field until the...

  • Page 9: Heat Setting Selection

    Heat Setting Selection For setting and adjusting the heat setting (1 to 9) for the selected cooking zone. Use sensor field + to increase the heat setting. Lower the heat setting with sensor field -. If several cooking zones are being used simul- taneously, the required cooking zone must be selected by touching the appropriate sensor field before adjusting the heat setting.

  • Page 10: Residual Heat Indicator

    Residual Heat Indicator When an individual cooking zone or the entire hob is switched off, any re- sidual heat is shown with an h (for “Hot”) in the digital display for the ap- propriate cooking zones. Even after the cooking zone has been switched off, the residual heat indicator only goes out when the cooking zone is cold.
  • Page 11 Use of the cooking area with the child- safety device activated 1. Touch the “ON/OFF” control. l is shown in the digital display. 2. Within the next ten seconds touch the Plus and Mi- nus sensor fields simultaneously for approx. one second.
  • Page 12 Deacitivating the child-safety device The child-safety device can only be deactivat- ed when the hob is switched off. 1. Touch “ON/OFF” control, l is indicated in the dig- ital displays. 2. Touch the Plus and Minus sensors simultaneously for approx. one second, then release. 3.

  • Page 13: Uses, Tables And Tips

    Uses, Tables and Tips Pans The better the pan, the better the results. • You can recognise good pans by their bases. The base should be as thick and flat as possible. • Pay particular attention when buying new pans to the diameter of the base.
  • Page 14 Settings for Cooking on the Rings The setting position required for cooking processes is dependent on the quality of the pots and on the type and amount of the food. Switch position Cooking method Examples Starting of cooking and roasting, cooking of large quantities of Parboiling liquid, then switch-back to appropriate setting Frying...

  • Page 15: Cleaning And Care

    Cleaning and Care re Important: Cleaning agents must not come into contact with the hot ceramic glass sur- face! All cleaning agents must be removed with plenty of clean water after cleaning be- cause they can have a caustic effect when the rings are next heated! Do not use any aggressive cleaners such as grill or oven sprays, coarse scourers or abra-...

  • Page 16: Hob Frame

    Problem Dirt 1. Remove burnt-on sugar, melted plastic, aluminium foil or other meltable materials with a glass scraper immediately and while still hot. Important: There is a risk of burning yourself when the glass scraper is used on a hot cook- ing zone! 2.

  • Page 17: What To Do If

    What to do if f … Rectifying faults It is possible that faults have been caused by a minor error, which you can correct yourself with the help of the following instructions. Do not attempt any further repairs if the following instructions do not help in each specific case.
  • Page 18 … after cooking zone switch-off the dis- play will not show _ or h for residual heat? Check, whether – the cooking zone has only been in operation for a short while, and is therefore not hot enough. If the cooking zone is hot, please contact your local Service Force Centre.

  • Page 19: Installation Instructions

    Installation Instructions Regulations, Standards, Important! The new appliance may only be in- stalled and connected by qualified person- Directives nel. Please observe this instruction, otherwise the This appliance meets the following standards: warranty will not cover any damage that may •...

  • Page 20: Safety Instructions For The Installer

    Safety Instructions for the Installer • A device must be provided in the electrical installa- tion which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm. Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be re- moved from the holder), earth leakage trips and contactors.

  • Page 21: Electrical Connection

    Electrical Connection Before connecting, check that the nominal voltage of the appliance, that is the voltage stated on the rating plate, corresponds to the available supply voltage. The rating plate is located on the lower casing of the hob. The heating element voltage is AC230V~. The appli- ance also works perfectly on older networks with AC220V~.

  • Page 22: Rating Plate

    Rating Plate...

  • Page 23: Service

    Service In the “What to do if …” section a number of mal- functions are listed that you can rectify yourself Look there first if a fault occurs. Is it a technical fault? If so, please contact your customer service centre. (You will find addresses and telephone numbers in the section “Customer Service Centres”.) Always prepare in advance for the discussion.

  • Page 24: Assembly

    Assembly / Montering...
  • Page 26 Removal / Demontering...
  • Page 27 Subject to change without notice 319 637 000-A-141002-04 Ret til ændringer uden varsel forbeholdes The Electrolux Group. The world´s No.1 choice. The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
