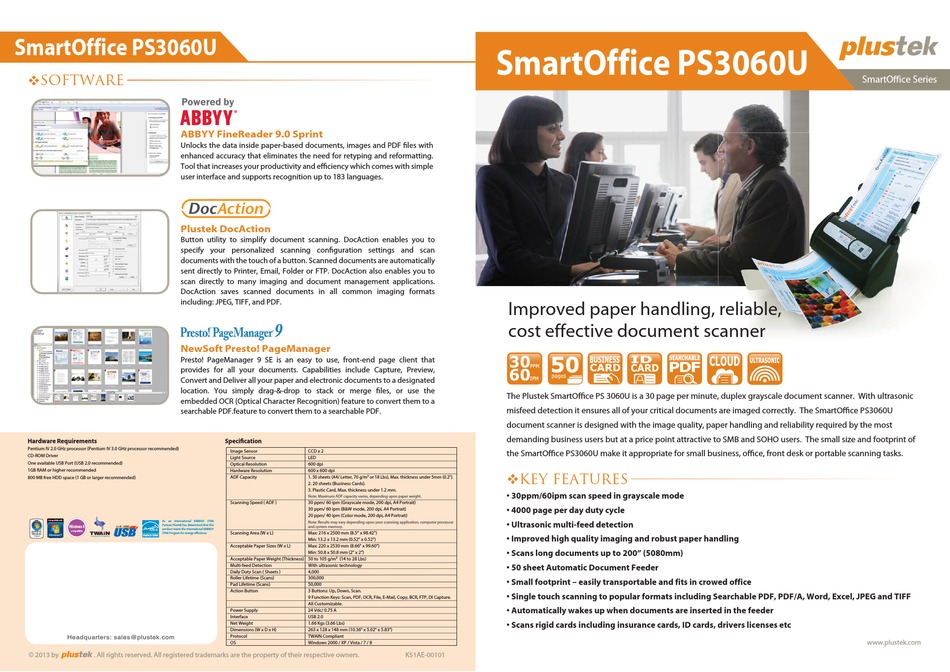

Plustek SmartOffice PS3060U Specifications

SmartOffice PS3060U
SOFTWARE
Unlocks the data inside paper-based documents, images and PDF files with
enhanced accuracy that eliminates the need for retyping and reformatting.
Tool that increases your productivity and efficiency which comes with simple
user interface and supports recognition up to 183 languages.
Button utility to simplify document scanning. DocAction enables you to
specify your personalized scanning configuration settings and scan
documents with the touch of a button. Scanned documents are automatically
sent directly to Printer, Email, Folder or FTP. DocAction also enables you to
scan directly to many imaging and document management applications.
DocAction saves scanned documents in all common imaging formats
including: JPEG, TIFF, and PDF.
Presto! PageManager 9 SE is an easy to use, front-end page client that
provides for all your documents. Capabilities include Capture, Preview,
Convert and Deliver all your paper and electronic documents to a designated
location. You simply drag-&-drop to stack or merge files, or use the
embedded OCR (Optical Character Recognition) feature to convert them to a
searchable PDF.feature to convert them to a searchable PDF.
Hardware Requirements
Pentium IV 2.0 GHz processor (Pentium IV 3.0 GHz processor recommended)
CD-ROM Driver
One available USB Port (USB 2.0 recommended)
1GB RAM or higher recommended
800 MB free HDD space (1 GB or larger recommended)
As an international ENERGY STAR
Partner, Plustek has determined that this
product meets the international ENERGY
STAR Program for energy efficiency.
E N E R G Y S T A R
Headquarters: sales@plustek.com
© 2013 by . All rights reserved. All registered trademarks are the property of their respective owners.
Specification
Image Sensor CCD x 2
Light Source LED
Optical Resolution 600 dpi
Hardware Resolution 600 x 600 dpi
ADF Capacity 1. 50 sheets (A4/ Letter, 70 g/m² or 18 Lbs), Max. thickness under 5mm (0.2").
2. 20 sheets (Business Cards).
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF ) 30 ppm/ 60 ipm (Grayscale mode, 200 dpi, A4 Portrait)
30 ppm/ 60 ipm (B&W mode, 200 dpi, A4 Portrait)
20 ppm/ 40 ipm (Color mode, 200 dpi, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor
and system memory.
Scanning Area (W x L) Max: 216 x 2500 mm (8.5" x 98.42")
Min: 13.2 x 13.2 mm (0.52" x 0.52")
Acceptable Paper Sizes (W x L) Max: 220 x 2530 mm (8.66" x 99.60")
Min: 50.8 x 50.8 mm (2" x 2")
Acceptable Paper Weight (Thickness) 50 to 105 g/m² (14 to 28 Lbs)
Multi-feed Detection With ultrasonic technology
Daily Duty Scan ( Sheets ) 4,000
Roller Lifetime (Scans) 300,000
Pad Lifetime (Scans) 50,000
Action Button 3 Buttons: Up, Down, Scan.
9 Function Keys: Scan, PDF, OCR, File, E-Mail, Copy, BCR, FTP, DI Capture.
All Customizable.
Power Supply 24 Vdc/ 0.75 A
Interface USB 2.0
Net Weight 1.66 Kgs (3.66 Lbs)
Dimensions (W x D x H) 263 x 128 x 148 mm (10.36" x 5.02" x 5.83")
Protocol TWAIN Compliant
OS Windows 2000 / XP / Vista / 7 / 8
SmartOffice PS3060U
Improved paper handling, reliable,
cost effective document scanner
30
PPM
60
IPM
The Plustek SmartOffice PS 3060U is a 30 page per minute, duplex grayscale document scanner. With ultrasonic
misfeed detection it ensures all of your critical documents are imaged correctly. The SmartOffice PS3060U
document scanner is designed with the image quality, paper handling and reliability required by the most
demanding business users but at a price point attractive to SMB and SOHO users. The small size and footprint of
the SmartOffice PS3060U make it appropriate for small business, office, front desk or portable scanning tasks.

KEY FEATURES

K51AE-00101
SmartOffice Series
ULTRASONIC
www.plustek.com
