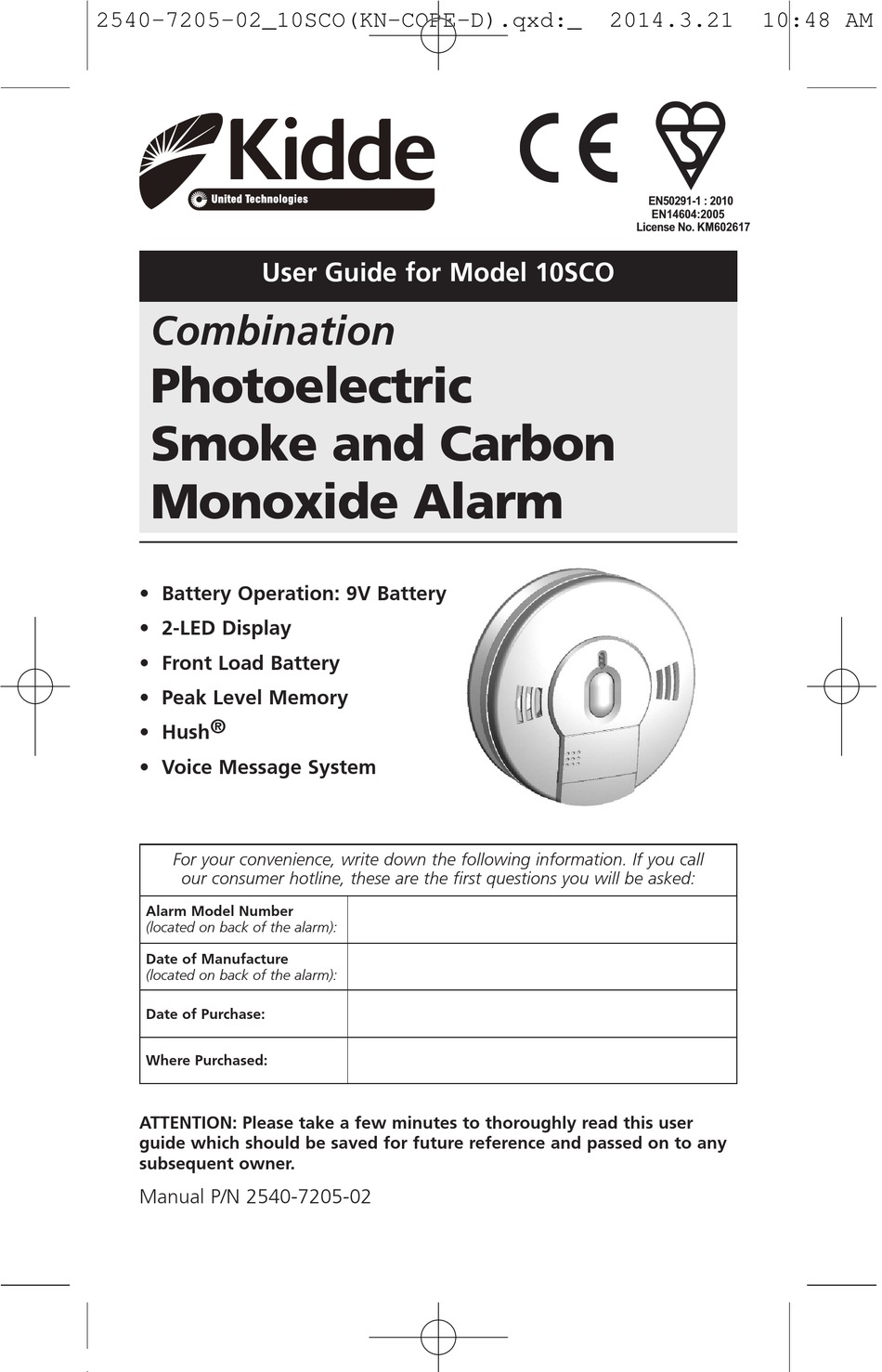

2540-7205-02_10SCO(KN-COPE-D).qxd:_

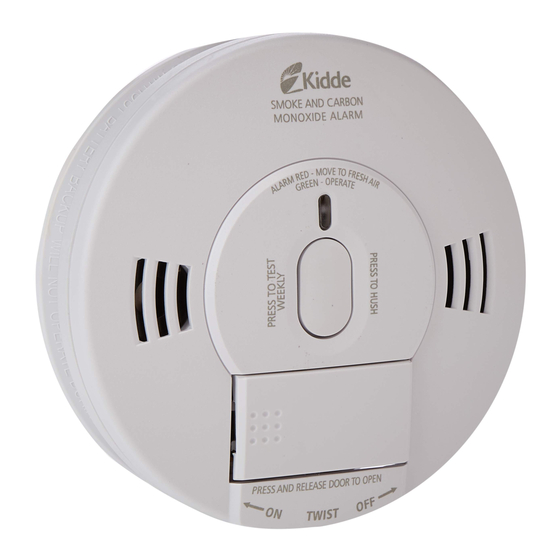

Combination
Photoelectric
Smoke and Carbon
Monoxide Alarm
• Battery Operation: 9V Battery
• 2-LED Display
• Front Load Battery
• Peak Level Memory
• Hush ®
• Voice Message System
For your convenience, write down the following information. If you call
our consumer hotline, these are the first questions you will be asked:
Alarm Model Number
(located on back of the alarm):
Date of Manufacture
(located on back of the alarm):
Date of Purchase:
Where Purchased:
ATTENTION: Please take a few minutes to thoroughly read this user
guide which should be saved for future reference and passed on to any
subsequent owner.
Manual P/N 2540-7205-02
User Guide for Model 10SCO
2014.3.21
10:48 AM
EN50291-1 : 2010
EN14604:2005
License N KM602617
o.
Advertisement
Table of Contents
Related Manuals for Kidde 10SCO
Summary of Contents for Kidde 10SCO
- Page 1 2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM EN50291-1 : 2010 EN14604:2005 License N KM602617 User Guide for Model 10SCO Combination Photoelectric Smoke and Carbon Monoxide Alarm • Battery Operation: 9V Battery • 2-LED Display • Front Load Battery • Peak Level Memory • Hush ®...
-
Page 2: What To Do When The Alarm Sounds
2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM What To Do When The Alarm Sounds! WARNING: Actuation of your CO Alarm indicates the presence of Carbon Monoxide (CO) which can kill you. When the carbon monoxide alarm sounds: If alarm signal sounds: 1) Immediately move to fresh air – outdoors or by an open door/window. - Page 3 NEVER IGNORE THE SOUND OF THE ALARM! Determining what type of alarm has sounded is easy with your Kidde Combination Smoke/CO Alarm. The voice message warning system will inform you of the type of situation occurring. Refer to the Features section on page 4 for a detailed description of each alarm pattern.
- Page 4 2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM What To Do When The Alarm Sounds! • Go to your predetermined meeting place. When two people have arrived one should leave to call 999 from a neighbour's home, and the other should stay to perform a head count. •...
-
Page 5: Table Of Contents
2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM Table of Contents Introduction ......Product View ......Features . -
Page 6: Introduction
Your Kidde Smoke/CO Alarm was designed to detect both smoke and carbon monoxide from any source of combustion in a residential environment. It is not designed for use in a caravan or boat. -
Page 7: Product View
2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM Product View FRONT Test/Reset/Hush Green& Red LED Button (Light Emitting Diode) Voice Speaker Alarm Sounder Battery Compartment... - Page 8 2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM Product View BACK Mounting Bracket Tamper Resist Latch Battery Door Tamper-Resist Slide...
-
Page 9: Features
2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM Features • Permanent independent smoke and carbon monoxide sensors. • Smoke alarm takes precedence when both smoke and carbon monoxide are present. • Alarm/Voice message warning system that alerts you of the following conditions in the manner described below, thus eliminating any confusion over which alarm is sounding: o FIRE: The alarm/voice pattern is three long alarm beeps followed by the verbal warning message “FIRE! FIRE!”. - Page 10 2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM Features o System announces “PUSH TEST BUTTON” when the unit is powered up, reminding user to activate the Test Button. • One “chirp” every 30 seconds is an indication that the alarm is malfunctioning. If this occurs call the Consumer Hotline at 0800 917 0722.
- Page 11 (associated with slow smouldering fires) sooner than ionisation alarms. Home fires develop in different ways and are often unpredictable. For maximum protection, Kidde recommends that both Ionisation and Photoelectric alarms be installed. • A battery powered alarm must have a battery of the specified type, in good condition and installed properly.
- Page 12 2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM Smoke Alarm Features • If the alarm is located outside the bedroom or on a different floor, it may not wake up a sound sleeper. • The use of alcohol or drugs may also impair one’s ability to hear the smoke alarm.
-
Page 13: Operating/Installation Instructions
CEILING OR WALL. IT WAS NOT DESIGNED FOR USE AS A TABLETOP DEVICE! INSTALL ONLY AS DETAILED! A. Recommended Installation Locations: Kidde recommends the installation of a Smoke/CO Alarm in the following loca- tions. For maximum protec- tion we suggest an alarm be... - Page 14 2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM Operating and Installation Instructions Sloped Ceiling Installation: Install within 0.9m of the highest point (measured horizon- tally). Smoke alarms in rooms with ceiling slopes greater than 0.3m in 2.4m horizontally shall be located on the high side of the room.
-
Page 15: Where Not To Install
2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM Operating and Installation Instructions WARNING This product is intended for use in ordinary indoor locations of family living units. B. Where Not to Install: Do not install in garages, furnace rooms or bath- rooms! INSTALL AT LEAST 5 FEET AWAY FROM ANY FUEL BURNING OR COOKING APPLIANCE •... -
Page 16: Step 3: Testing Alarm
2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM Operating and Installation Instructions allows for aesthetic alignment). Note: The alarm will mount to the bracket in 4 positions (every 90 degrees). 5. Two labels are included with your alarm. They have impor- tant information on what to do in case of an alarm. Add the phone number of your emergency service provider (for smoke or fire emergencies call '999' or for CO gas emergencies call 0800 111 999) in the space provided. - Page 17 2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM Operating and Installation Instructions dense, the alarm will silence immediately, the unit will verbally announce “HUSH MODE ACTIVATED”, and the green LED will flash every 2 seconds for approximately 10 minutes. This indicates that the smoke alarm is in a temporarily desen- sitized condition.
-
Page 18: Operating Instructions
2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM Operating Instructions LED Indicator Operation Red LED The red LED will flash in conjunction with the alarm sounder. Therefore, the red LED will flash during a smoke alarm, a CO alarm, a low battery mode chirp and a unit error mode chirp. - Page 19 2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM Operating Instructions POSTS FIGURE 5A FIGURE 5B This alarm also has a battery carrier tamper resist feature, which helps prevent the battery carrier from being opened. This feature is effective in preventing the removal of the battery from this device.
-
Page 20: Co Alarm Response Time
It can be possible to arrange for a CO inspection of your home or property, but some inspectors may charge for this service. Kidde will not pay for or reimburse the owner or user of this product for any repair or dispatch calls related to the alarm sounding so it is advisable to inquire about fees prior to having such a service performed. -
Page 21: Alarm Removal
2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM Alarm Removal IF THE TAMPER RESIST FEATURE HAS BEEN ACTIVATED, REFER TO TAMPER RESIST FEATURE DESCRIPTION ON PAGE 17 FOR REMOVAL INSTRUCTIONS Battery Replacement Remove the alarm from the mounting bracket by rotating the alarm in the direction of the “OFF” arrow on the cover. If any form of battery failure is detected the red LED light will flash and the unit will “chirp”... -
Page 22: General Alarm Maintenance
2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM Battery Replacement WARNING! Use only the batteries specified. Use of differ- ent batteries may have a detrimental effect on the Smoke/CO alarm. A good way to remember is to do this when you put your clocks back one hour in the Autumn Following battery installation test the alarm and if it fails to work contact the manufacturer on 0800 917 0722... -
Page 23: General Maintenance
2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM General Maintenance REINSTALL IMMEDIATELY AFTER CLEANING AND THEN TEST USING THE TEST/RESET BUTTON! IF TAMPER RESIST FEATURE HAS BEEN ACTIVATED, REFER TO TAMPER RESIST FEATURE DESCRIPTION ON PAGE 14 FOR REMOVAL INSTRUCTIONS. • Never use detergent or other solvents to clean the unit. •... -
Page 24: Carbon Monoxide Safety Information General Co Information
2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM Carbon Monoxide Safety Information General CO Information Carbon Monoxide (CO) is a colourless, odourless, and tasteless poison gas that can be fatal when inhaled. CO inhibits the blood’s capacity to carry oxygen. Possible Sources CO can be produced when burning any fossil fuel: gasoline, propane, natural gas, oil and wood. -
Page 25: Symptoms Of Co Poisoning
2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM Carbon Monoxide Safety Information cracks in furnace heat exchangers. If at any time you discover any faults, contact a qualified technician. Verify the color of flame on pilot lights and burners is blue. A yellow or orange flame is a sign that the fuel is not burning completely. -
Page 26: Fire Safety Information
2540-7205-02_10SCO(KN-COPE-D).qxd:_ 2014.3.21 10:48 AM Fire Safety Information Escape Plan Prepare and practice a home escape plan twice a year, includ- ing drills at night. Know two ways out of every room (door & window) and identify a meeting place outside the home where everyone will gather once they have exited the residence. -
Page 27: Warranty And Service Information
The above warranty may not be altered except in writing signed by both parties hereto. Your Kidde Combination Smoke & CO Alarm is not a substitute for property, fire, disability, life or other insurance of any kind. Appropriate insurance coverage is your responsibility. Consult your insurance agent. - Page 28 This warranty does not affect your statutory rights. Service Information During the specified warranty period Kidde will repair or replace, at its discretion any defective Kidde Combination Smoke & CO Alarms that are returned in a postage paid package to the following address: Customer Service Department,Kidde Safety Europe Ltd, Mathisen Way, Colnbrook, Berkshire, SL3 0HB, UK.
- Page 29 10:48 AM QUESTIONS OR FOR MORE INFORMATION Call our Consumer Hotline at 0800 917 0722 or contact us at our website at www.kiddesafetyeurope.co.uk Kidde Safety Europe Ltd, Mathisen Way, Colnbrook, Berkshire, SL3 0HB Made in China U.S. Patents 6,160,487 and 6,753,786...
