GE Monogram ZBD6800NBB Dimensions And Specifications

zbd6880NSS/zbd6800NWW/bb
GE Monogram

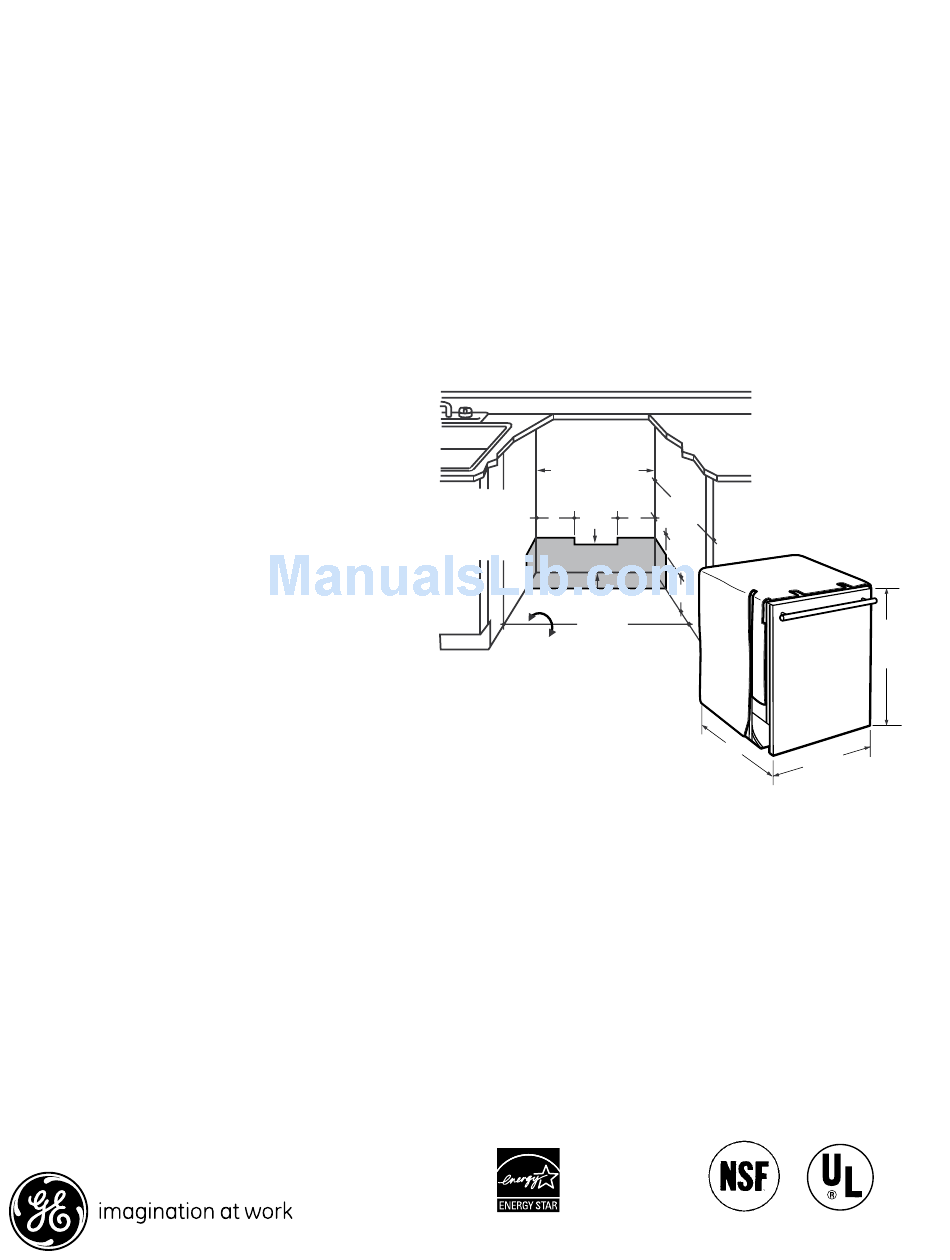

Dimensions and Specifications (in inches)
• The dishwasher must be installed so that the drain hose
is no more than 10 feet in length for proper drainage.
• Water and power supply should enter in the
shaded area.
• Electrical and water connections are at the right front
of the dishwasher. The hot water line should extend
forward 30" to 40" from the rear wall. The electrical must
extend forward at least 24" to reach the junction box.
• To prevent siphoning, an air gap must be used when
the waste tee or disposer connection is less than 18"
above the floor.

Electrical Requirements

The dishwasher must be supplied with 120V, 60Hz, and
connected to an individual properly grounded branch
circuit protected by a 15- or 20-amp circuit breaker or
time-delay fuse.
For answers to your Monogram,
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
Fully Integrated built-In dishwasher
®
GE Profile or
® ™
service,
®
This Wall Area
must be Free of
Pipes or wires
34-1/2" Min.
5" 5"
Underside of
4"
Countertop
to Floor
24" Min.
Floor MUST
be Even with
Room Floor
As an EnErgy StAr
partner, gE has determined
that this product meets the
EnErgy StAr guidelines
for energy efficiency.
Specification Revised 2/08
Cabinets
24"
Square
Min.
4"
and
Plumb
6"
*24"
24"
®
34"
Adjustable
to 35"
