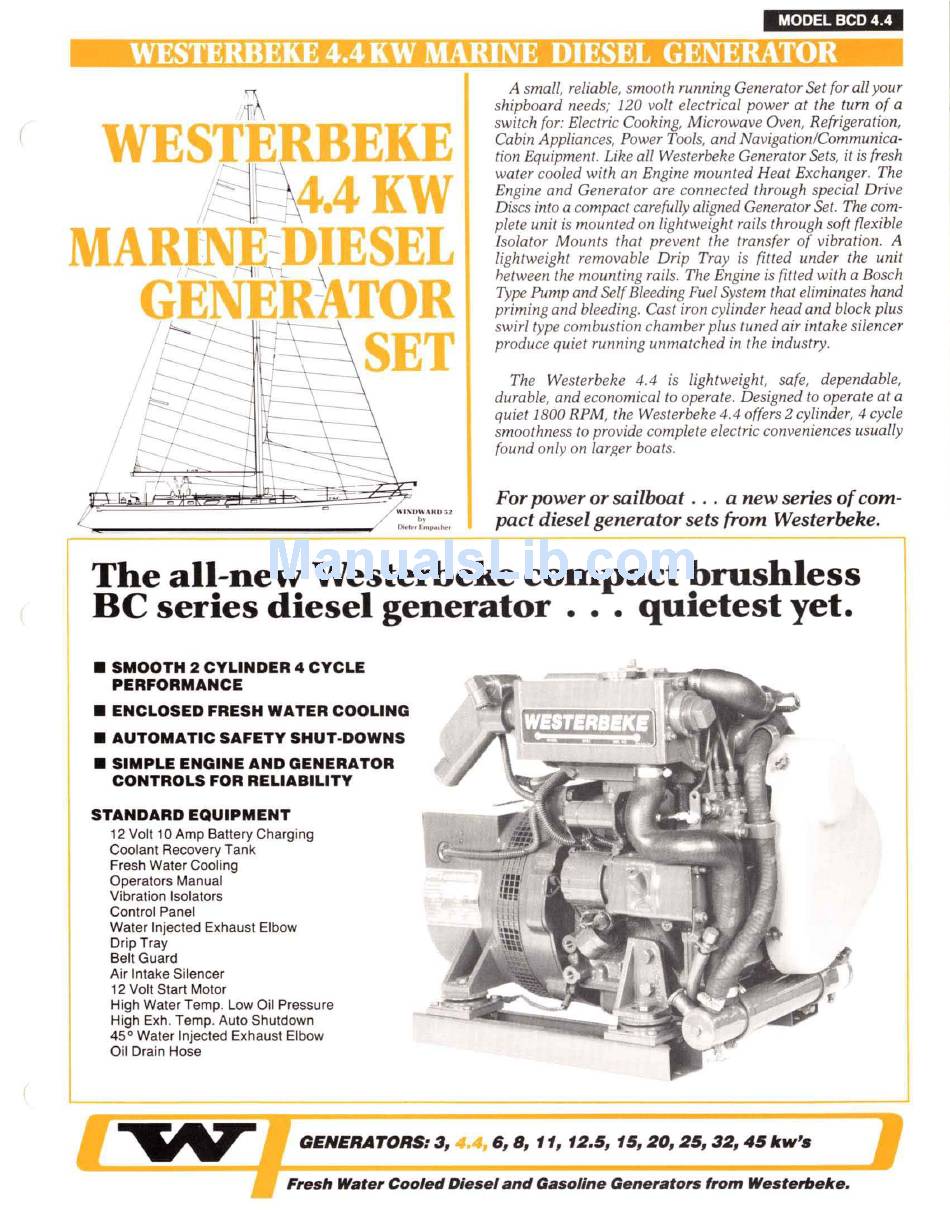

EKE
4KW
MARlNE=
DIESEL
E
~
-R-ATOR
::=-r
~h
SET
MODEL BCD 4.4
A
small, reliable,
smooth
running Generator Set for all your
shipboard
needs; 120 volt
electrical
power at the
turn
of
a
switch
for: Electric
Coohing,
Microwave
Oven,
Refrigeration,
Cabin
Appliances,
Power
Tools,
and Navigation/Communica·
tion
Equipment. Lihe
all
Westerbehe
Generator
Sets,
it
is fresh
water
cooled
with an
Engine
mounted
Heat
Exchanger.
The
Engine and Generator are
connected
through special
Drive
Discs
into
a compact carefully
aligned Generator Set.
The com-
plete unit is
mounted on
lightweight rails through
soft
flex ible
Isolator
M
ounts
that prevent the transfer of
vibration.
A
lightweight
removable
Drip Tray is
fitted
under
the
unit
hetween the
mounting rails_ The Engine is fitted with a
Bosch
Type Pump and
Self Bleeding
Fuel System that
eliminates
hand
priming
and
bleeding. Cast iron
cylinder
head and bloch plus
swirl
type
combustion chamber
plus
tuned
air
intahe silencer
produce
quiet running unmatched
in
the industry.
The Westerbehe
4.4 is
lightweight,
safe,
dependable,
durable,
and
economical
to opera te. Designed
to operate
at
a
quiet 1800
RPM,
the Westerbehe 4.4
offers
2
cylinder,
4
cycle
smoothness
to provide
complete
electric
conveniences
usually
found
only on
larf!,er boats.
For power or sailboat . .. a new series
of
com-
pact diesel generator sets from Westerbeke.
The all-new Westerbeke
cOlllpact
brushlessl
BC series diesel generator
. . . quietest yet.
• SMOOTH 2 CYLINDER 4 CYCLE
PERFORMANCE
• ENCLOSED FRESH WATER COOLING
• AUTOMATIC SAFETY SHUT-DOWNS
• SIMPLE ENGINE AND GENERATOR
CONTROLS FOR RELIABILITY
STANDARD EQUIPMENT
12 Volt
10
Amp
Battery
Chargin
g
Coolant
Recovery
Tank
Fresh
Water Cooling
Operators Manual
Vibration
Isolators
Control
Panel
Water Injected Exhaust
Elbow
Drip
Tray
Belt
Guard
Air Intake Silencer
12 Volt Start Motor
High
Water
Temp.
Low
Oil
Pressure
High
Exh. Temp.
Auto Shutdown
45
°
Water Injected Exhaust
Elbow
Oil
Drain
Hose
GENERATORS:
3,
4.
6, S, 11, 12.5, 15,20,25,32,45 kw'.
Fresh Water Cooled Diesel and Gasoline Generators
from
Westerbeke.
