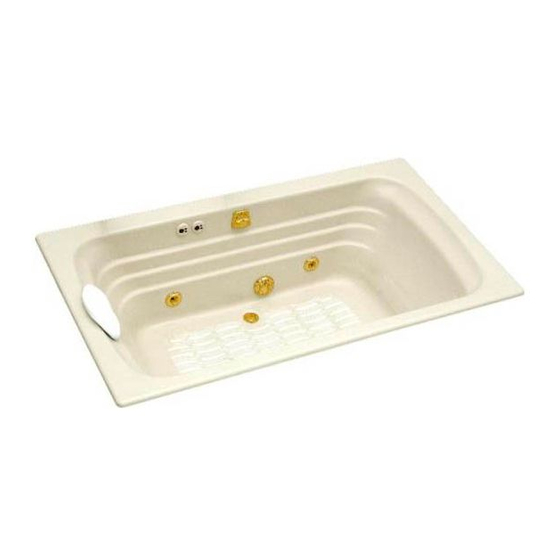

  • Page 1 Homeowners Guide Bath Whirlpool K-870, K-872 1019486-5-...

  • Page 2: Operating Instructions

    (f) unconsciousness resulting in the danger of amount of bubble bath, bath soap, shampoo, or bath oil to drowning. foam excessively. For this reason, please don’t use these products during whirlpool operation. 1019486-5- Kohler Co.

  • Page 3: Table Of Contents

    ........Your Kohler Whirlpool ......

  • Page 4: Thank You

    All information in this manual is based upon the latest product information available at the time of publication. At Kohler, we constantly strive to improve the quality of our products. We reserve the right to make changes in product characteristics, packaging, or availability at any time without notice.

  • Page 5: User Keypad & Whirlpool Modes/Features

    Power. - Carefully exit the bath, and open the drain to empty the whirlpool. NOTE: If the whirlpool does not function properly, please refer to Troubleshooting on Page 10. Kohler Co. 1019486-5-...

  • Page 6: Care And Cleaning

    Care and Cleaning Instructions Cleaning Your Kohler Cast Iron Whirlpool - Rinse the whirlpool thoroughly after each use and use a soft cloth to wipe it dry. If the surface becomes dirty, use a general purpose cleaner such as Scrub Free...

  • Page 7: Warranties -- U.s.a. And Canada

    Notes: 1. There may be variation in color fidelity between catalog images and actual plumbing fixtures. 2. Kohler Co. reserves the right to make changes in product characteristics, packaging or availability at any time without notice. COPYRIGHT E 1999, 2000, 2001, 2002 BY KOHLER CO.
  • Page 8 America, Canada and Mexico. If a defect is found in normal residential use, Kohler Co. will, at its election, repair, replace or make appropriate adjustment. Damage caused by accident, misuse, or abuse is not covered by this warranty. Improper care and cleaning will void the warranty.

  • Page 9: One-Year Warranty -- Mexico

    It is recommended that at the time of purchase, you verify that all accessories and components are complete in this package. This Kohler product is warranted to be free of defects in material and workmanship for one (1) year from the date of purchase as shown on the invoice or receipt.

  • Page 10: Troubleshooting

    Troubleshooting Procedures This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale distributor. Troubleshooting the Whirlpool System Symptoms Probable Causes Recommended Action 1.
  • Page 11 B. Replace wiring harness. Refer to damaged. installer/dealer. C. Remote control not programmed C. See homeowners guide or service correctly. manual. D. Faulty remote control. D. Replace remote control. E. Faulty control. E. Replace control. Refer to installer/dealer. Kohler Co. 1019486-5-...

  • Page 12: Service Parts

    Butterfly Valve 94318-G2 (10-1/2”/26.7cm) Hose 96956 Butterfly 50506 Screw Acrylic Shell Neck Valve 63149 Hardware 91819 Screw 1016466 1018965 Grommet 95045 Motor Adapter Screw 1010029 91820 60980 Sleeve O-Ring **Finish/color code must be specified when ordering. Service Parts 1019486-5- Kohler Co.
  • Page 13 With 5 or Less Jets 88532** (Colored Finishes) 88531** (Metal Finishes) 60394-P Silicone Single Jet For Whirlpools Lube Packet With 6 or More Jets 88530** (Colored Finishes) 30739 88529** (Metal Finishes) Jet Tool **Finish/color code must be specified when ordering. Kohler Co. 1019486-5-...
  • Page 14 1019445-L (1-1/2”/3.8cm) 1019444-J (2-3/4”/7cm) 1005363 1019445-M (1-1/4”/3.2cm) 1019444-K (3”/7.6cm) Stud 1019444-L (1/2”/1.3cm) 1019444-M (1/4”/6mm) Spacer 1018661 (Neckjets) 1018663 (Neckjets & Backjets) Control 1019447-A (1/4”/6mm) 1019447-B (1/2”/1.3cm) 1019447-C (3/4”/1.9cm) Isolation Mount **Finish/color code must be specified when ordering. 1019486-5- Kohler Co.
  • Page 15 O-Ring 1019446-L (1-1/2”/3.8cm) 1019444-G (2-1/4”/5.7cm) 1019446-M (1-1/4”/3.2cm) 1019444-H (2-1/2”/6.4cm) Stud 1019444-J (2-3/4”/7cm) 1005363 1019444-K (3”/7.6cm) 1019444-L (1/2”/1.3cm) 1019444-M (1/4”/6mm) Spacer 1018660 Control 1019447-A (1/4”/6mm) 1019447-B (1/2”/1.3cm) 1019447-C (3/4”/1.9cm) Isolation Mount **Finish/color code must be specified when ordering. Kohler Co. 1019486-5-...
  • Page 16 1018709 Heater 1011679 Gasket 1012916 Nut w/Screws 94821 O-Ring 1012653 Adapter 1012977 Adapter 1018710 Heater 94821 1012916 O-Ring Nut w/Screws 94821 O-Ring 1012977 Adapter 1011679 Gasket **Finish/color code must be specified when ordering. 1019486-5- Kohler Co.
  • Page 17 1020678- -A 1020678-B Cover/Circuit Board Cover/Circuit Board (w/Wrench) (w/Wrench) 1013497-A 1013497-B Decal Decal 1020678-C 1020678-D Cover/Circuit Board Cover/Circuit Board (w/Wrench) (w/Wrench) 1013497-D 1013497-C Decal Decal 1020678-E Cover/Circuit Board (w/Wrench) 1013497-E Decal **Finish/color code must be specified when ordering. Kohler Co. 1019486-5-...
  • Page 18 1013460 Housing 1020679-A Cover/Circuit Board 59588 Screw 94110 O-Ring 1013459-A Decal 1013469** Trim Ring **Finish/color code must be specified when ordering. 1019486-5- Kohler Co.
  • Page 19 1013464-A 1013822-A Decal Remote w/Stand 1023091** 1020679-A 1013471** Remote Stand 1013822-B 1013464-B Remote w/Stand Decal 1020679-B Remote **Finish/color code must be specified when ordering. Kohler Co. 1019486-5-...
  • Page 20 USA: 1-800-4-KOHLER Canada: 1-800-964-5590 Mexico: 001-877-680-1310 kohler.com E2003 Kohler Co. 1019486-5- Kohler Co. 1019486-5-...
