Summary of Contents for Chauvet COLORrail

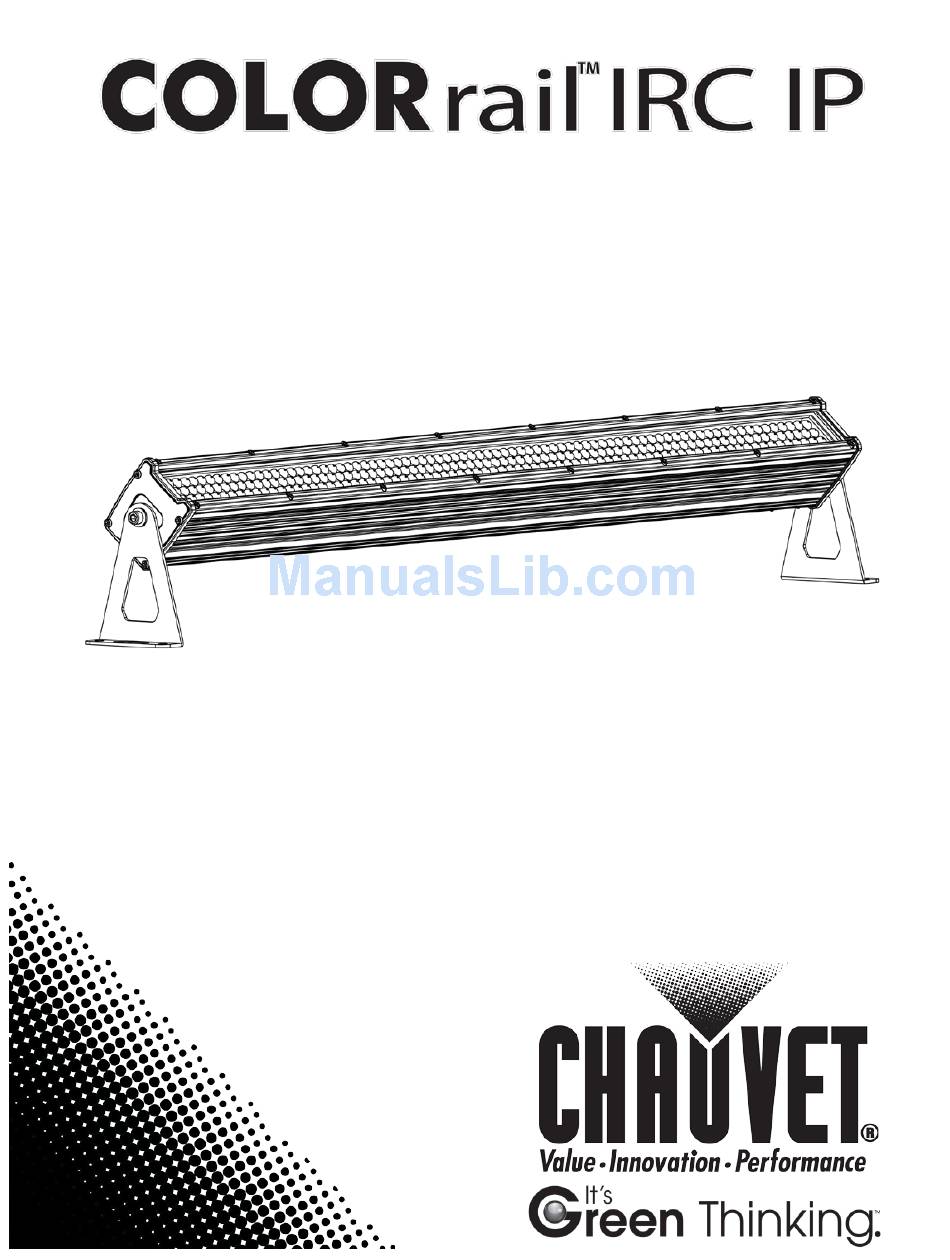

- Page 1 User Manual...
-
Page 2: Table Of Contents
IRC (Infrared Remote Control) Operation ..................13 5. Technical Information ....................14 Product Maintenance ....................... 14 6. Technical Specifications ....................15 Contact Procedure ........................16 Returning Products to CHAUVET® ..................16 CHAUVET® Contact Information ....................16 Page 2 of 16 COLORrail™ IRC IP User Manual Rev. 4... -
Page 3: Before You Begin
CHAUVET®. Failure to do so in a timely manner may invalidate your claim with the carrier. In addition, keep the container and all the packing material for inspection. -
Page 4: Product At A Glance
Please contact the nearest authorized technical assistance center. · Keep this User Manual for future consultation. If you sell the product to another user, be sure that they also receive this document. Page 4 of 16 COLORrail™ IRC IP User Manual Rev. 4... -
Page 5: Introduction
2. I NTRODUCTION Power In Product Overview DMX In DMX Out Power Out LED Display Product Dimensions COLORrail™ IRC IP User Manual Rev. 4 Page 5 of 16... -
Page 6: Setup
3. S ETUP AC Power The COLORrail™ IRC IP has an auto-ranging power supply and it can work with an input voltage range of 100–240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 7: Operation
The COLORrail™ IRC IP has six DMX personalities, a 2-channel mode for basic control and a 26-channel mode with more advanced control over the lights. Personalities The COLORrail™ IRC IP uses up to 26 DMX channels in its 26-channel DMX mode, and Starting which defines the highest configurable address to 487. -
Page 8: Menu Map
1.9b Cyan Foreground Color 1.-b Blue 1.rb Magenta P.21- 1.FL White P.22 1.FF 2.-r 2.r9 Yellow 2.-9 Green 2.9b Cyan Background Color 2.-b Blue 2.rb Magenta 2.FL White 2.FF Page 8 of 16 COLORrail™ IRC IP User Manual Rev. 4... -
Page 9: Dmx Channel Assignments And Values
063 ó 071 White 072 ó 255 Auto Programs Program speed slow to fast (when Ch. 5 is 000 ó 255 Auto Program Speed 072–255) 000 ó 255 Slow to fast Strobe COLORrail™ IRC IP User Manual Rev. 4 Page 9 of 16... -
Page 10: 14-Ch
Section 3 000 ó 255 0–100% Blue 000 ó 255 0–100% 000 ó 255 0–100% Green Section 4 000 ó 255 0–100% Blue 000 ó 255 Slow to fast Strobe Page 10 of 16 COLORrail™ IRC IP User Manual Rev. 4... -
Page 11: 26-Ch
Section 7 000 ó 255 0–100% Blue 000 ó 255 0–100% 000 ó 255 0–100% Green Section 8 000 ó 255 0–100% Blue 000 ó 255 Slow to fast Strobe COLORrail™ IRC IP User Manual Rev. 4 Page 11 of 16... -
Page 12: Configuration (Standalone)
Master/Slave The Master/Slave mode allows a single COLORrail™ IRC IP unit (the “master”) to control the actions of one or more COLORrail™ IRC IP units (the “slaves”) without the need of a Mode DMX controller. The master unit will be set to operate in any standalone mode, while the slave units will be set to operate in Slave Mode. -
Page 13: Irc (Infrared Remote Control) Operation
Note: The IRC will not respond to any inputs when Black Out is activated. If the remote does not respond when a button is pressed, try pressing BLACK OUT. You may have inadvertently activated BLACK OUT. COLORrail™ IRC IP User Manual Rev. 4 Page 13 of 16... -
Page 14: Technical Information
· Gently polish the external optics and glass/transparent surfaces until they are free of haze and lint Always dry the external optics and glass/transparent surfaces carefully after cleaning them. Page 14 of 16 COLORrail™ IRC IP User Manual Rev. 4... -
Page 15: Technical Specifications
-4° F (-20° C) Convection I/O Connectors Connector Type Channel Range 3-pin XLR Proprietary 2, 3, 4, 7, 14, 26 Ordering Product Name Item Code Item Number COLORrail™ IRC IP 03030121 COLORRAILIRCIP COLORrail™ IRC IP User Manual Rev. 4 Page 15 of 16... -
Page 16: Contact Procedure
If you live in the U.S., contact CHAUVET® World Headquarters (see below). Procedure · If you live in the UK or Ireland, contact CHAUVET® Europe Ltd. (see below). · If you live in any other country, DO NOT contact CHAUVET®. Instead, contact your distributor of record.
