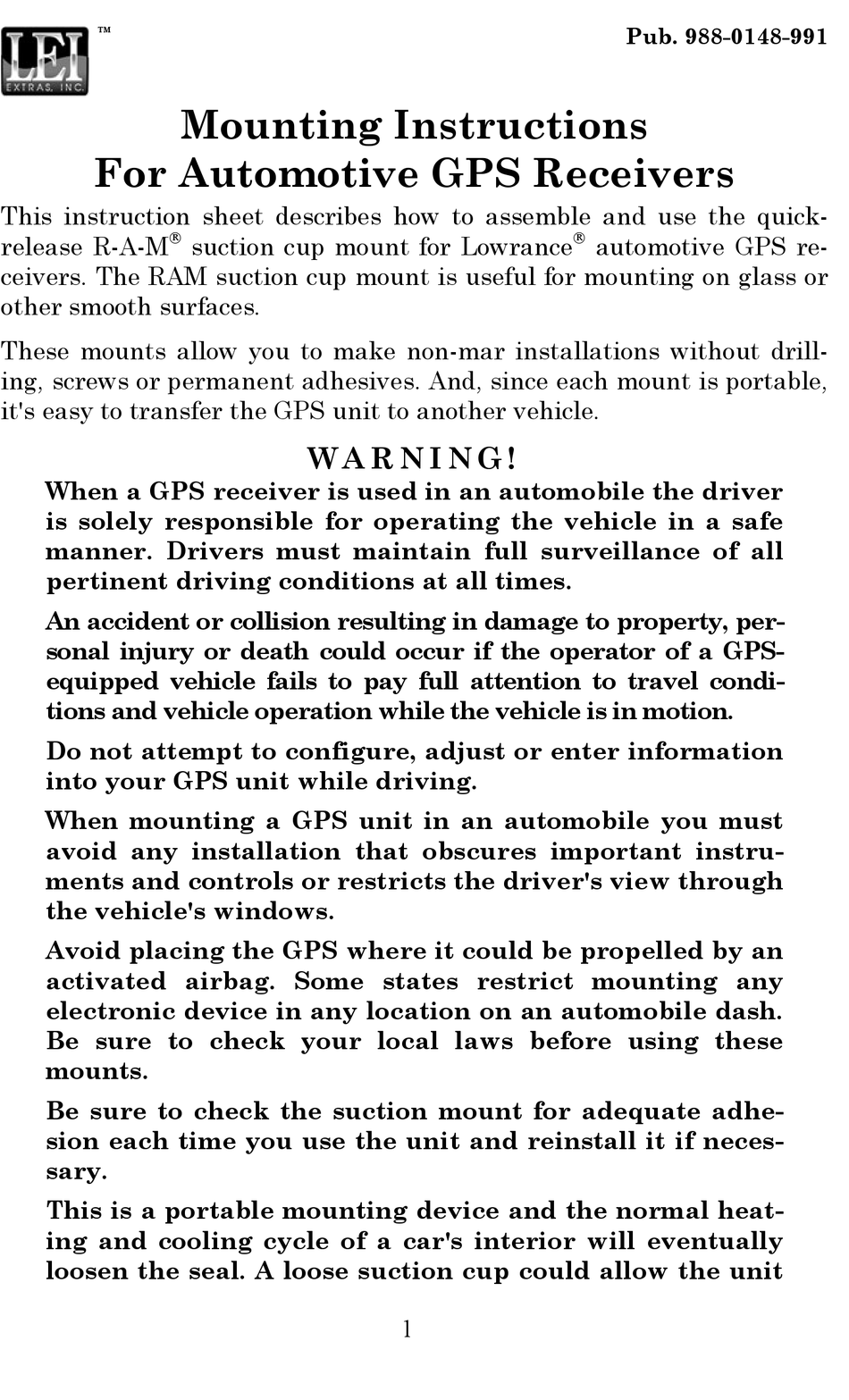

For Automotive GPS Receivers
This instruction sheet describes how to assemble and use the quick-
release R-A-M
ceivers. The RAM suction cup mount is useful for mounting on glass or
other smooth surfaces.
These mounts allow you to make non-mar installations without drill-
ing, screws or permanent adhesives. And, since each mount is portable,
it's easy to transfer the GPS unit to another vehicle.
When a GPS receiver is used in an automobile the driver
is solely responsible for operating the vehicle in a safe
manner. Drivers must maintain full surveillance of all
pertinent driving conditions at all times.
An accident or collision resulting in damage to property, per-
sonal injury or death could occur if the operator of a GPS-
equipped vehicle fails to pay full attention to travel condi-
tions and vehicle operation while the vehicle is in motion.
Do not attempt to configure, adjust or enter information
into your GPS unit while driving.
When mounting a GPS unit in an automobile you must
avoid any installation that obscures important instru-
ments and controls or restricts the driver's view through
the vehicle's windows.
Avoid placing the GPS where it could be propelled by an
activated airbag. Some states restrict mounting any
electronic device in any location on an automobile dash.
Be sure to check your local laws before using these
mounts.
Be sure to check the suction mount for adequate adhe-
sion each time you use the unit and reinstall it if neces-
sary.
This is a portable mounting device and the normal heat-
ing and cooling cycle of a car's interior will eventually
loosen the seal. A loose suction cup could allow the unit

Mounting Instructions

suction cup mount for Lowrance
W A R N I N G !
1
Pub. 988-0148-991
automotive GPS re-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iWAY 350C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lowrance iWAY 350C

Summary of Contents for Lowrance iWAY 350C

  • Page 1: Mounting Instructions

    This instruction sheet describes how to assemble and use the quick-   release R-A-M suction cup mount for Lowrance automotive GPS re- ceivers. The RAM suction cup mount is useful for mounting on glass or other smooth surfaces. These mounts allow you to make non-mar installations without drill- ing, screws or permanent adhesives.

  • Page 2: Installing The Ram Suction Mount

    to fall or come loose during vehicle operations. The iWAY package includes a double-socket arm mount. The base, arm and cradle can be adjusted to a position that best suits your vehicle. Double socket screws Mounting accessory packed with the iWAY 350c GPS receiver. NOTE: The double socket arm screws can be adjusted to make the arm more rigid or loose.
  • Page 3 Suction cup base Quick release Twist lock tab and cradle. Double socket arm iWAY 350c mounted on dash with suction cup mount. The mounting surface should be free of dirt and oil. Press the suction cup against the mounting surface and, while maintaining pressure, turn the twist lock until the arm is secure.
  • Page 4 2. …then push down on front of unit until it snaps into place. 1. Engage bottom edge of GPS unit to back of cradle as shown here . . . Steps for attaching unit to mount. Another option is to place the GPS unit in the cradle before attaching the suction cup and arm to the mounting surface.
  • Page 5 Notice how the unit was placed so that it does not obstruct the view of the road ahead through the windshield. See your Lowrance dealer or visit the LEI web site, www.lei- extras.com, for the latest options stocked by LEI; the accessory source for Lowrance and Lowrance Automotive.
  • Page 6 Eastern Standard Time, M-F. If you live outside the U.S. and Canada, you should contact the dealer in the country where you purchased your unit. To locate a dealer near you, visit the Lowrance web site, www.lowrance.com, and look for the Dealer Locator.
  • Page 7 Pub. 988-0148-991 © Copyright 2005 All Rights Reserved Printed in USA 102005...
