EN
Connections
The Meridian Prime Headphone Amplifier is supplied with the
following accessories:
•
Power supply.
•
This manual.
Connections

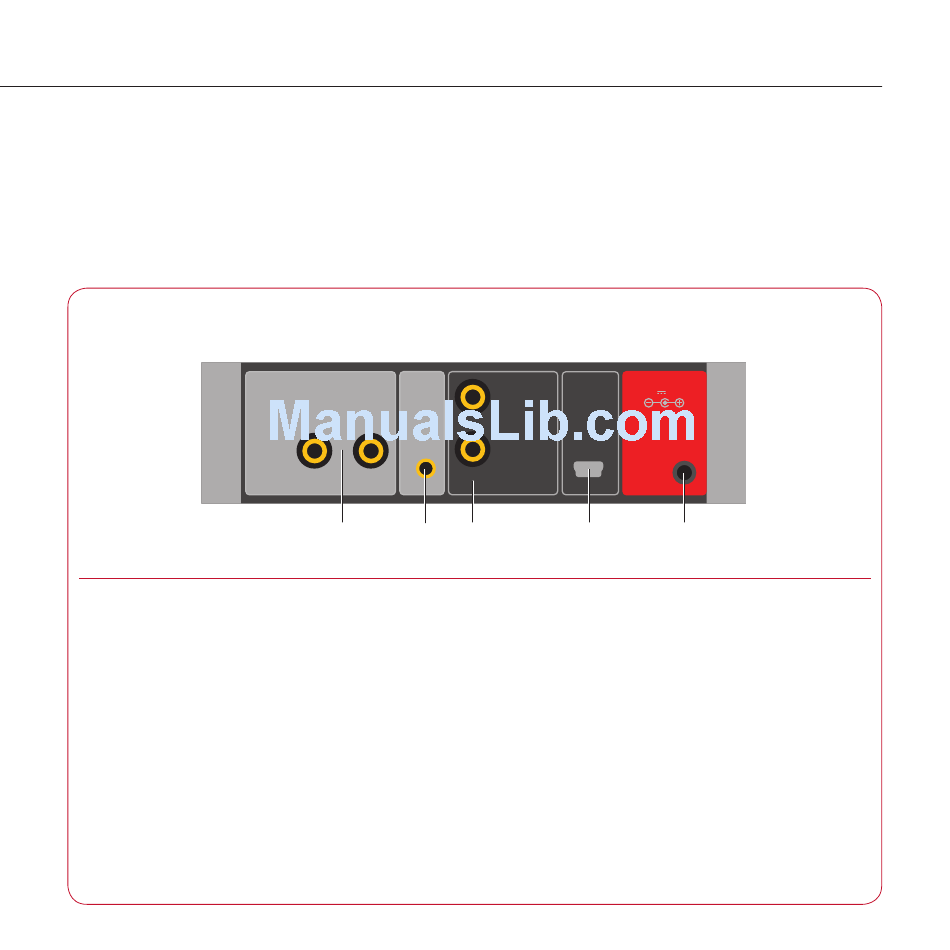

The following diagram gives details of the back panel connections:
Inputs
Use this connection
Input 1 L and R
Input 2
USB input
Input 1
Input 2
R
L
Mini jack
Phono
inputs
To connect to this
The output of an analogue preamplifier,
or a fixed source such as a CD player,
using phono leads.
The output of an analogue preamplifier,
music player, computer, or mobile phone,
using a 3.5mm mini-jack lead.
The USB connector of a computer, using
a USB-A to mini-USB lead.
Meridian Prime Headphone Amplifier User Guide
If any of these items are missing please contact your retailer.
NOTE: You should retain the packaging in case you need to
transport the unit.
Output
USB
L
R
USB
Phono
input
input
outputs
Outputs
Use this connection
Output L and R
Power input
Connect the Meridian Prime Headphone Amplifier power input
to the power supply provided.
Alternatively you can power the Meridian Prime Headphone
Amplifier from the matching Meridian Prime Power Supply.
For more information see the application To use the Meridian
Prime Headphone Amplifier in conjunction with the Meridian
Prime Power Supply , page 7.
Power Input
12Vdc
5W Max
Use Meridian Power
supply
Power
input
To connect to this
The line input of a power amplifier, or
active loudspeakers, using phono leads.
