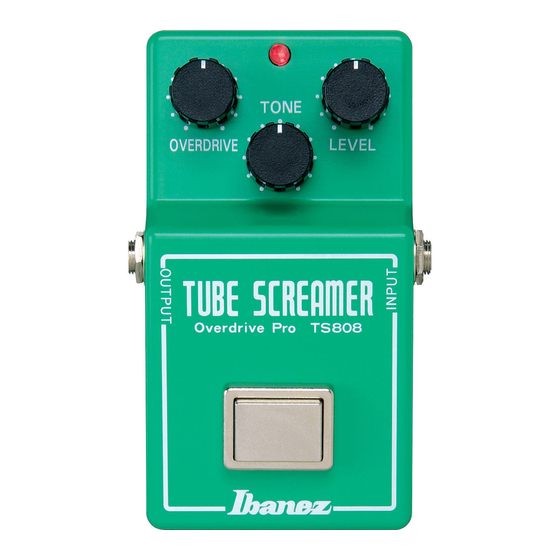

Ibanez TS-808 Tube Screamer Overdrive Pro Owner's Manual

Tube screamer

Hide thumbs Also See for TS-808 Tube Screamer Overdrive Pro:

Download this manual

NOTES

Unplug the instrument when not in use.

When storing the unit for long periods of time, disconnect

the battery.

You will hear some loss of level and distortion when the bat-

tery begins to run down.

When using external power source, we recommend you use

Ibanez AC adaptor AC-109.

Do not remove the screws on bottom.

SPECIFICATIONS

Input Impedance

Output Impedance

Maximum Output Level

Maximum Gain

Equivalent Input Noise

Power Supply

Size

Weight

500K ohms

10K ohms

0 dBm

+30 dB

-100 dBm (IHF-A)

One 9 Volt Battery

or external AC adaptor (AC-109)

125 mm, 4.9"(D) x 70mm, 2.8"

(W) x 52mm, 2"(H)

500g, 1.2 lbs
