Ibanez TS808 Manual

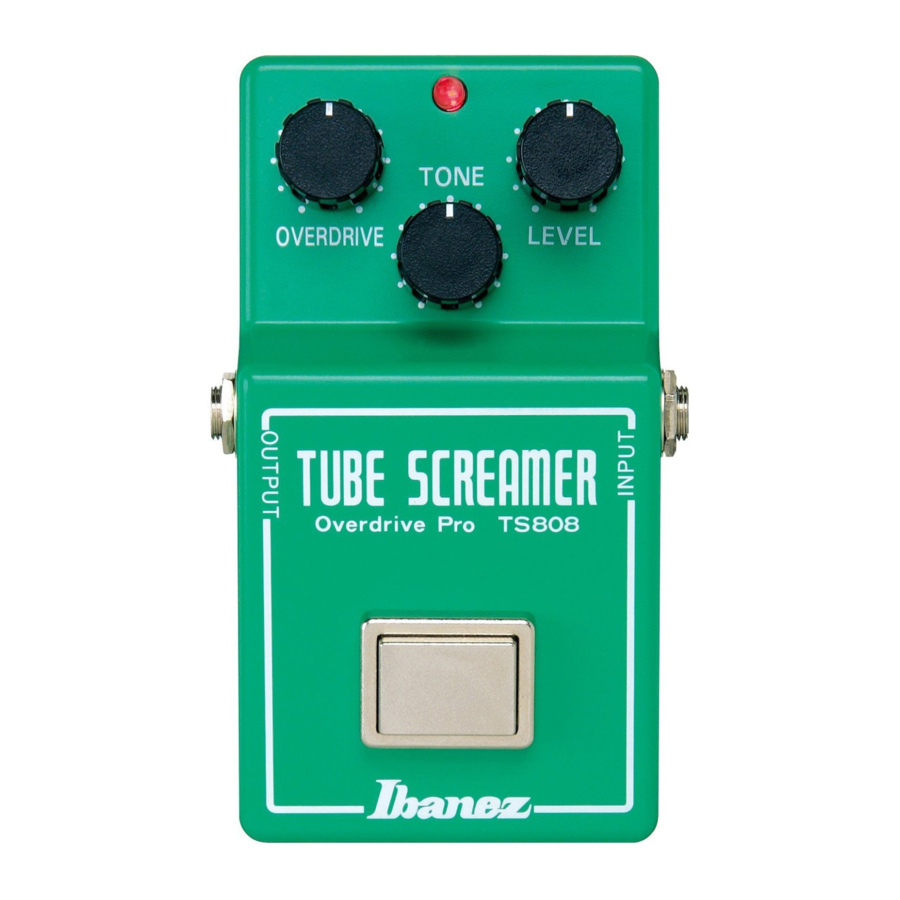

OPERATION

OPERATION

  1. Connect the input jack to your instrument.
    The circuit is automatically turned on when a plug is inserted.
  2. OVERDRIVE — Adjusts the amount of distortion.
  3. TONE — Controls the amount of high frequency contour.
    Adds bite to the sound or makes it mellower.
  4. LEVEL Controls the level of the distorted signal.
  5. Soft touch FET electronic switch turns effect on/off.
  6. LED indicator comes on when effect is on.
    If it is dim or does not light, replace the battery.
  7. EXT D.C. — When using external D.C. supply, internal batteries are switched off.

CHANGING THE BATTERY

  1. Unplug the instrument when not in use to prolong the battery life.
  2. You will hear some loss of level and distortion when the battery begins to run down.
    CHANGING THE BATTERY

SPECIFICATIONS

Input Impedance 500K ohms
Output Impedance 10K ohms
Maximum Output Level 0 dBu
Maximum Gain +30 dB
Power Supply One 9 volt battery (006P) or external AC adapter
(Use only DC 9V )
Size 125 mm, 4.9"(D) x 70mm, 2.8"(W) x 52mm, 2"(H)
Weight 500g, 1.2 lbs

*Design and specifications are subject to change without notice for improvement of the product.

Safety Precautions

warning Be sure to observe the following precautions
Before using this device, be sure to read this manual thoroughly for safe use of it. After that, keep this manual in a safe place and read it whenever necessary.

In order to use this device properly, the contents to be observed are explained, classified as follows

  • The severities of the injury and damage due to incorrect usage by ignoring the written contents arc explained by thc following classified indications.


Indicates a potentially hazardous situation which, if not avoided, will result in death or serious Injury.


Indicates a potentially hazardous situation which, if not avoided, will result in injury or property damage.

Never disassemble or modify the device

In case of an abnormality, stop using the device

  • In case of an abnormality such as smoke, burning smell or abnormal sound, immediately stop using the device.
  • Immediately unplug the AC adapter from the outlet.

Ensure that heat is radiated

  • Do not cover or wrap the AC adapter with cloth or the like.
    (Accumulated heat may deform the case or cause a fire).

Do not operate with wet hands.
(A short circuit or an electric shock may occur).

Do not use any unspecified AC adapter

  • Be sure to use the specified AC adapter.
    (Using an unspecified AC adapter may cause a fire or an electric shock).

Plug and unplug the power plug properly

  • Do not plug or unplug the AC adapter with wet hands.
    (An electric shock may occur)
  • When pulling out from the outlet, be sure to hold the AC adapter.
    (Pulling the cord may damage it, causing a fire or an electric shock).

Avoid water, moisture, dust and high temperature

  • Do not store or use the device in places such as a bath or outdoors where water splashes. Also do not use it in places of high humidity, places with a lot of dust, or at high temperatures.
    (A fire, an electric shock or a failure may occur).

Do not store in places of excessive vibrations
(It may cause a failure).

When not in use for a long time

  • When not in use for a long time, be sure to unplug the AC adapter from the outlet for safety.
    (A fire may occur)

Adjust the volume level moderately
Do not use the device at a high volume for a long time.

(Hearing impairment may occur).

Do not apply excess force, drop nor give strong physical impact
(A failure or injury may occur).

Do not use thinner, alcohol, and the like for cleaning
(It may cause a failure).

Observe the following instructions with a product that uses a battery.


Do not throw a battery into a fire.
A burst, heat generation and afire may occur.

Remove the battery when not in use for along time.
Liquid leak may cause a failure.
