Ibanez TS808HWV2 Owner's Manual

OWNER'S MANUAL
● DEUTSCH / BEDIENUNGSANLEITUNG
● FRANÇAIS / MANUEL DE L'UTILISATEUR
● ESPAÑOL / MANUAL DEL USUARIO
● ITALIANO / MANUALE D'ISTRUZIONI
● NEDERLANDS / GEBRUIKERSHANDLEIDING
● РУССКИЙ / РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
● POLSKI / INSTRUKCJA OBSŁUGI
● PORTUGUÊS / MANUAL DO PROPRIETÁRIO
https://www.ibanez.com/world/support/manual/
● ENGLISH / OWNER'S MANUAL
● 日本語 / 取扱説明書
http://www.hoshinogakki.co.jp/pdf/ibanez/manual/en/
electronics/TS808HWV2.pdf
● 中国语 / 用户手册
http://www.hoshinogakki.co.jp/pdf/ibanez/manual/cn/
electronics/TS808HWV2.pdf
ENGLISH
Before using this device, be sure to read this manual thoroughly for safe use of
it. After that, keep this manual in a safe place and read it whenever necessary.
Safety Precautions
=== Be sure to observe the following precautions ===
In order to use this device properly, the contents to be observed are
explained, classified as follows.
 The severities of the injury and damage due to incorrect usage by ignoring
the written contents are explained by the following classified indications.
Indicates a potentially hazardous situation which, if not
Warnings
avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not
Cautions
avoided, will result in injury or property damage.
 The contents to be observed are explained, being classified by the
following pictograms.
...This pictogram shows a compulsory action, something that you must do.
...This pictogram shows a prohibition, something that you must not do.
...This pictogram shows a notice, something that you need to be alerted to.
Warnings
Never disassemble or modify the device.
In case of an abnormality such as smoke, burning smell or abnormal
sound, immediately stop using the device.
Immediately unplug the AC adapter from the outlet.
Do not operate with wet hands.
<<A short circuit or an electric shock may occur.>>
Cautions
Be sure to use the specified AC adapter.
<<Using an unspecified AC adapter may cause a fire or an electric shock.>>
Do not store or use the device in places such as a bath or outdoors
where water splashes. Also do not use it in places of high humidity,
places with a lot of dust, or at high temperatures.
<<A fire, an electric shock or a failure may occur.>>
Do not store in places of excessive vibrations.
<<It may cause a failure.>>
When not in use for a long time, be sure to unplug the AC adapter
from the outlet for safety. <<A fire may occur.>>
Do not apply excess force, drop nor give strong physical impact.
<<A failure or injury may occur.>>
Do not use thinner, alcohol, and the like for cleaning.
<<It may cause a failure.>>
= = = = Observe the following instructions with a product that uses a battery = = = =
Warnings
Do not throw a battery into a fire.
<<A burst, heat generation and a fire may occur.>>
Cautions
Mount a battery with its polarities +/- set correctly.
<<It may cause a failure.>>
Remove the battery when not in use for a long time.
<<Liquid leak may cause a failure.>>
SPECIFICATIONS
Input Impedance 470k ohms
Output Impedance 180 ohms
Maximum Output Level +16.1 dBu
One 9 V battery (006P) or external
Power Supply
AC adapter (Use DC 9 - 18 V
Required Current 7 mA @ 9 V, 11 mA @ 18 V
Size [mm] 77 (W) × 132 (D) × 60 (H)
Size [inch] 3.0" (W) × 5.2" (D) × 2.4" (H)
Weight 545 g, 1.2 lbs
HOSHINO GAKKI CO., LTD.
No.22, 3-Chome, Shumoku-Cho,
Higashi-Ku, Nagoya, Aichi, JAPAN

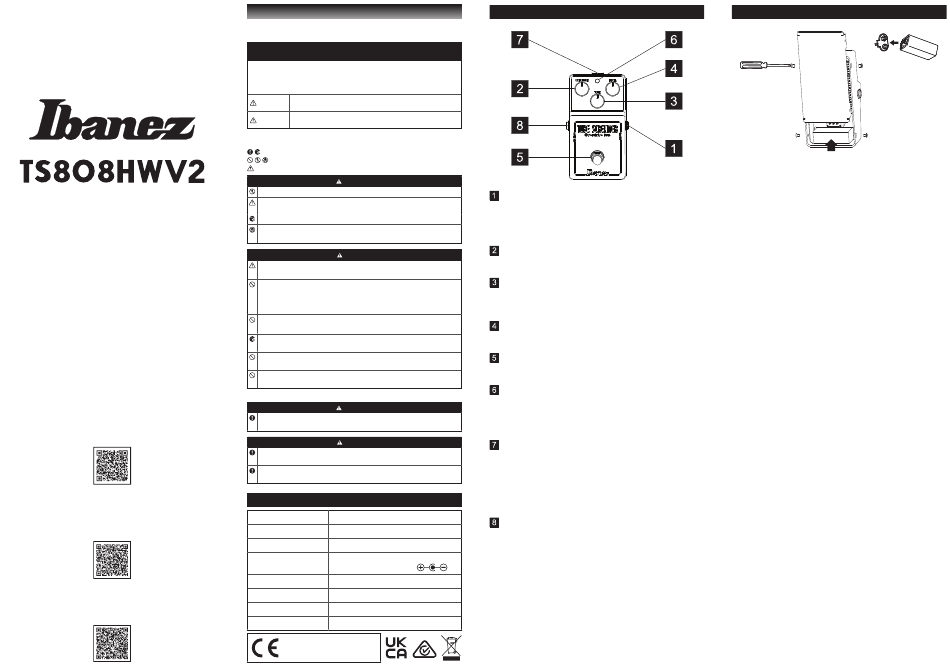

OPERATION
INPUT:
Connects an instrument, such as a guitar or the output
of another effect device, via a shielded cable. Plugging
into this jack automatically puts power to the unit.
OVERDRIVE:
Adjusts the amount of distortion.
TONE:
Controls the amount of high frequency contour. Adds
bite to the sound or makes it mellower.
LEVEL:
Controls the level of the distorted signal.
On/off switch:
Switches effect on/off.
LED Indicator:
Lights when the effect is on. It also serves as a battery
check. If this LED is dim or does not light, replace the
battery.
EXT DC input:
Be sure to use a center negative external DC power
supply (AC/DC adapter etc.).
When using this jack, an internal battery is switched off.
This pedal allows you to use a DC 9-18 V power supply.
"Regulated DC adapters only"
OUTPUT:
Connects an amp or another effect pedal, via a shielded
cable.
)
CHANGING THE BATTERY
Replace the battery with a 006P 9 volt battery ONLY.
●
When opening the rear panel for battery replacement,
●
make sure the AC adapter is not connected. When the
rear panel is opened, electronic components appear.
Do not touch them with a conductor such as metal or it
may cause damage to the equipment or electric shock.
1. Remove the four screws on the side of the chassis
with a Phillips-head screwdriver.
2. Connect the new battery and place it in the case.
Unplug the instrument when not in use to prolong the
●
battery life.
You will hear some loss of level when the battery begins
●
to run down.
