Tone Commander 40d120 Installation Instructions

Hide thumbs Also See for 40d120:
1
2
3
4

Advertisement

Table of Contents

See also: Instruction and Installation Manual
The 40d Power Supply is designed to be used
with 40d120 consoles. The Power Supply
provides power and an ISDN telco path to the
consoles. Each power supply supports a
maximum of one 40d console and two 120d
consoles.

Installation

NOTE – All lines must be connected to the appropriate jacks as indicated on the power supply. Refer to the
40d120 Installation Instructions (doc. #13-102633) for specific installation procedures.
Location
The power supply may be mounted near the console or in a back equipment room. Maximum cable length
between the power supply and consoles is 500 feet.
Wall Mounting
1. Fasten a plywood sheet to the wall.
2. Mark and pre-drill the mounting holes for the power supply.
Make sure that the power supply is mounted within 5 feet of a standard 117 VAC, 60 Hz grounded
power outlet.
3. Mount the power supply using suitable fasteners (such as #10 x ¾" pan head tapping screws).
Wiring

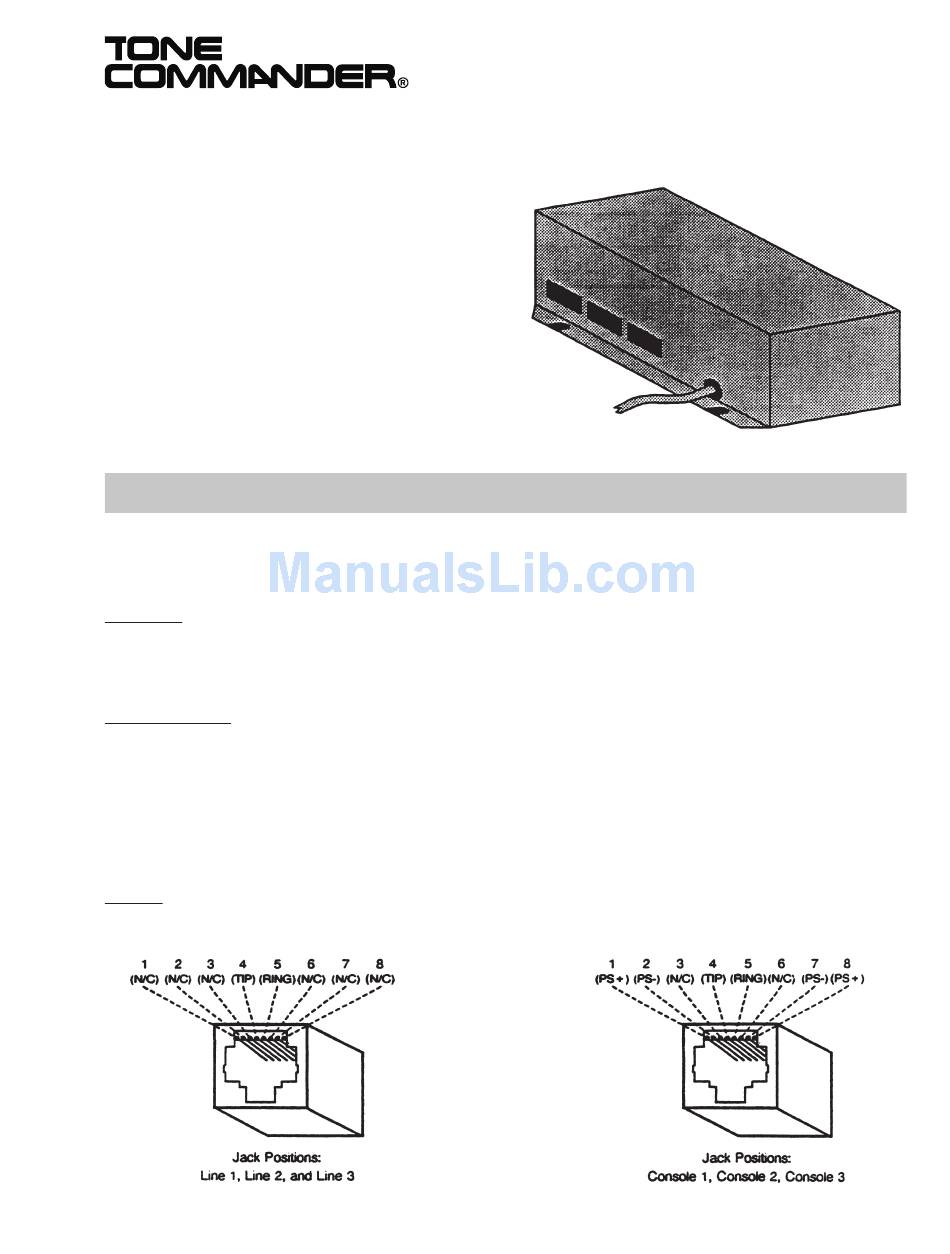

All connecting cords and cables must be wiring. See the figure below for jack pinout.
40d120
Power Supply
Installation
Instructions
13-102612 Rev. B
August 2000
