With Inbuilt DVD player, SD and USB Interface
MODEL
GTVL19W17HVFW
Goodmans Helpline 0871 230 1777
ATV/DTV/DVD
CH.
VOL.
GUIDE
SLEEP
SEARCH
SKIP
PLAY/PAUSE
OPEN/CLOSE
STOP
EXIT
MENU
INFO
INPUT
CH. LIST
SUBTITLE
USB/CARD
AUDIO
ZOOM
GO TO
FAST TEXT
DVD
TITLE
SETUP
DVD MENU
SUBTITLE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTVL19W17HVFW and is the answer not in the manual?

Questions and answers

Related Manuals for Goodmans GTVL19W17HVFW

Summary of Contents for Goodmans GTVL19W17HVFW

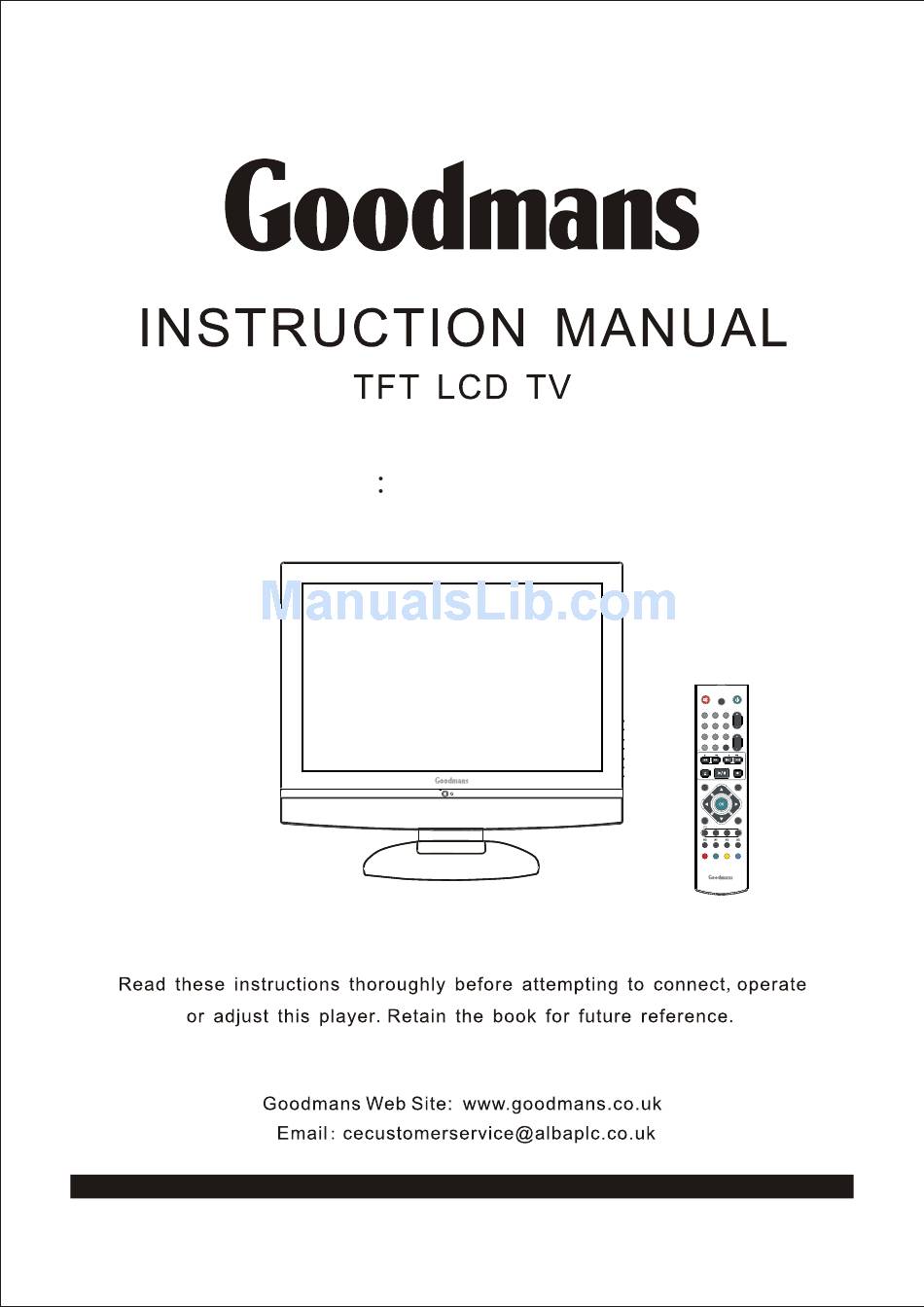

  • Page 1 With Inbuilt DVD player, SD and USB Interface MODEL GTVL19W17HVFW ATV/DTV/DVD VOL. GUIDE SLEEP SEARCH SKIP PLAY/PAUSE OPEN/CLOSE STOP EXIT MENU INFO INPUT CH. LIST SUBTITLE USB/CARD AUDIO ZOOM GO TO FAST TEXT TITLE SETUP DVD MENU SUBTITLE Goodmans Helpline 0871 230 1777...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to avoid the risk of electric shock, do not disassemble this equipment by anyone except a qualified service personnel.

  • Page 3: Mains Plug Wiring

    MAINS PLUG WIRING Electrical Information Wiring Instructions 2- CORE Fuse BLUE BROWN (Neutral) (Live) Cable clamp 3- CORE GREEN and YELLOW (Earth) Fuse BLUE (Neutral) BROWN (Live) Cable clamp LCD TV User Guide...
  • Page 4 WARNINGS Safety Tips WEEE: LCD TV User Guide...

  • Page 5: Installation

    CONTENTS PREPARTION INSTALLATION USING THE FEATURES SPECIFICATIONS LCD TV User Guide...

  • Page 6: Key Features

    Key Features Various Audio/Video terminals for external equipment connection High Definition Multimedia Interface (HDMI) HDTV Component Video Inputs WSS(Wide Screen Scale) Function Built-in ATV and DTV Tuners DISPLAY MODES Video signal: (VGA Standard) PREPARATION...

  • Page 7: Package Contents

    Package Contents ATV/DTV/DVD VOL. GUIDE SLEEP SEARCH SKIP PLAY/PAUSE OPEN/CLOSE STOP EXIT MENU INFO INPUT CH. LIST SUBTITLE USB/CARD AUDIO ZOOM GO TO FAST TEXT TITLE SETUP DVD MENU SUBTITLE QUICK START GUIDE PREPARATION...

  • Page 8: Setting Up Your Lcd Tv

    Setting Up Your LCD TV PREPARATION...
  • Page 9 PREPARATION...

  • Page 10: Your Lcd Tv

    Your LCD TV MENU INPUT POWER PREPARATION...
  • Page 11 MENU INPUT POWER PREPARATION...
  • Page 12 PC VGA IN AUDIO IN HDMI VHF/UHF IN DC 12V IN PC AUDIO IN VIDEO S VIDEO AUDIO IN DIGITAL OUT SCART PC VGA IN HDMI AUDIO IN VHF/UHF IN DC 12V IN AUDIO IN DIGITAL OUT VIDEO S VIDEO PC AUDIO IN SCART PREPARATION...

  • Page 13: Your Remote Control

    Your Remote Control ATV/DTV/DVD ATV/DTV/DVD VOL. GUIDE SLEEP SEARCH SKIP PLAY/PAUSE OPEN/CLOSE STOP GUIDE/ +10 EXIT MENU CH. +/- INFO INPUT VOL. +/- CH. LIST SUBTITLE SLEEP USB/CARD AUDIO ZOOM GO TO FAST TEXT TITLE SETUP DVD MENU SUBTITLE EXIT PREPARATION...

  • Page 14: Dvd Menu

    MENU Displays the OSD ( On Screen Display ) menu. ATV/DTV/DVD Allow you to move, select, and set up the OSD options. INFO Press once displays a variety of information such as VOL. the current channel and the input source. Browse the disc’s information.

  • Page 15: Chapter 2 Installing The Lcd Tv

    Chapter 2 Installing the LCD TV Connecting Aerial MENU INPUT POWER POWE PC VGA IN AUDIO IN HDMI VHF/UHF IN DC 12V IN PC AUDIO IN VIDEO S VIDEO AUDIO IN DIGITAL OUT SCART PREPARATION...
  • Page 16 DC 12V IN PC VGA IN AUDIO IN HDMI VHF/UHF IN DC 12V IN AUDIO IN DIGITAL OUT PC AUDIO IN VIDEO S VIDEO SCART PREPARATION...

  • Page 17: Connecting A Vcr&Video Camera

    Connecting a VCR&Video Camera PC/VGA IN VHF/UHF IN Audio Audi ideo Video/Audio Cable “Not all cameras have the ability to connect to a TV. Please check your video camera user guide for compatibility”. INSTALLATION...

  • Page 18: Connecting A Tv Cable Box Or Satellite Receiver

    Connecting a TV Cable Box or Satellite Receiver PC/VGA IN VHF/UHF IN Audi Audio ideo HDMI CABLE Video/Audio Cable VGA CABLE Satellite antenna cable TV CABLE BOX SATELLITE RECEIVER INSTALLATION...
  • Page 19 PC/VGA IN VHF/UHF IN INSTALLATION...
  • Page 20 HDMI HDMI -This TV can accept High-Definition Multimedia Interface(HDMI) . -This TV SET supports HDCP(High-bandwidth Digital Content Protection) Protocol for TV SET (480p, 720p, 1080i) modes. -When you connect to the output of an HD ready player (DVD Player, Set Top Box or PC) switch to the AV6(HDMI) function and the TV will automatically detect the resolution used by the HDMI source.

  • Page 21: Chapter 3 Using The Features

    Chapter 3 USING THE FEATURES USING THE FEATURES...

  • Page 22: Osd Menu Operation

    OSD Menu Operation VIDEO OPTION DESCRIPTION USING THE FEATURES...

  • Page 23: The Video Settings

    The VIDEO Settings OPTION DESCRIPTION AUDIO OPTION DESCRIPTION USING THE FEATURES...
  • Page 24 The Setup Settings(Analogue TV) OPTION DESCRIPTION Setup Manual Search Channel Setup Start APS Country Press the Setup Channel Setup Finetune Save USING THE FEATURES...
  • Page 25 The Preferences Settings OPTION DESCRIPTION SCREEN(Only for VGA) OPTION DESCRIPTION Auto Sync USING THE FEATURES...

  • Page 26: Using The Features

    Chapter 4 Using the DTV OSD Settings OPTION DESCRIPTION Channel List C r eate a fav our ite list M odifty a fav our ite list Delete a fav our ite list E XI T USING THE FEATURES...
  • Page 27 Using the DTV OSD Settings Channel List F AV 1 B B C O NE B B C TWO B B C THR EE C B B C C hannel B B C NEWS 24 B B C i L ock Sk ip Sor t M ov e Sk ip A dd A ll...
  • Page 28 Modifty a favourite list TV R A DI O F AV 1 F AV 2 E XI T Delete a favourite list You ar e going to r em ov e the fav our ite list pr ess O K to confir m USING THE FEATURES...

  • Page 29: Channel Installation

    Using the DTV OSD Settings CONFIGURATION CHANNEL INSTALLATION USING THE FEATURES...
  • Page 30 Using the DTV OSD Settings NEW DETECTED CHANNELS USING THE FEATURES...

  • Page 31: Audio Language

    Using the DTV OSD Settings AUDIO LANGUAGE SUBTITLE LANGUAGE SYSTEM PARAMETERS SYSTEM UPGRADE USING THE FEATURES...

  • Page 32: System Information

    Using the DTV OSD Settings SYSTEM INFORMATION SIGNAL INFORMATION USING THE FEATURES...

  • Page 33: Receiver Lock

    Using the DTV OSD Settings PARENTAL CONTROL RECEIVER LOCK CONFIGURATION MENU CHANNEL LOCK MATURITY LEVEL USING THE FEATURES...

  • Page 34: Pin Code Change

    Using the DTV OSD Settings PIN CODE CHANGE mode 14:58 27/09/2005 REMINDER 14:58 27/09/2005 REMINDER USING THE FEATURES...

  • Page 35: Using The Built-In Dvd

    Using The Built-In DVD MENU INPUT POWER /USB/CARD (SCART) (CVBS) (Y Pb Pr) USING THE FEATURES...

  • Page 36: Using The Card Reader & Usb

    Using The Card Reader & USB MENU INPUT POWER USING THE FEATURES...
  • Page 37 Using The Card Reader & USB USING THE FEATURES...
  • Page 38 USING THE FEATURES...
  • Page 39 USING THE FEATURES...

  • Page 40: Picture Cd Operations

    Picture CD Operations Press USING THE FEATURES...
  • Page 41 Using General Setup Page USING THE FEATURES...
  • Page 42 Using General Setup Page USING THE FEATURES...

  • Page 43: Dolby Digital Setup

    Dolby Digital Setup RESOLUTION USING THE FEATURES...
  • Page 44 Using Preference Page USING THE FEATURES...

  • Page 45: Troubleshooting

    Troubleshooting TV will not turn on No picture, no sound Press the Poor picture, sound OK VIDEO Picture OK, poor sound Press the VOL+ Audio noise SPECIFICATIONS...

  • Page 46: Specifications

    SPECIFICATIONS GTVL19W17HVFW Model Panel System 19 inch LCD panel Display Resolution 1440 pixels (horizontal) x 900 pixels (vertical) Television System PAL - I Brightness 450 cd/m2 Contrast Ratio 800:1 Inputs/Output SCART PC Audio In Video In S-video In Phones Y Pb Pr...
