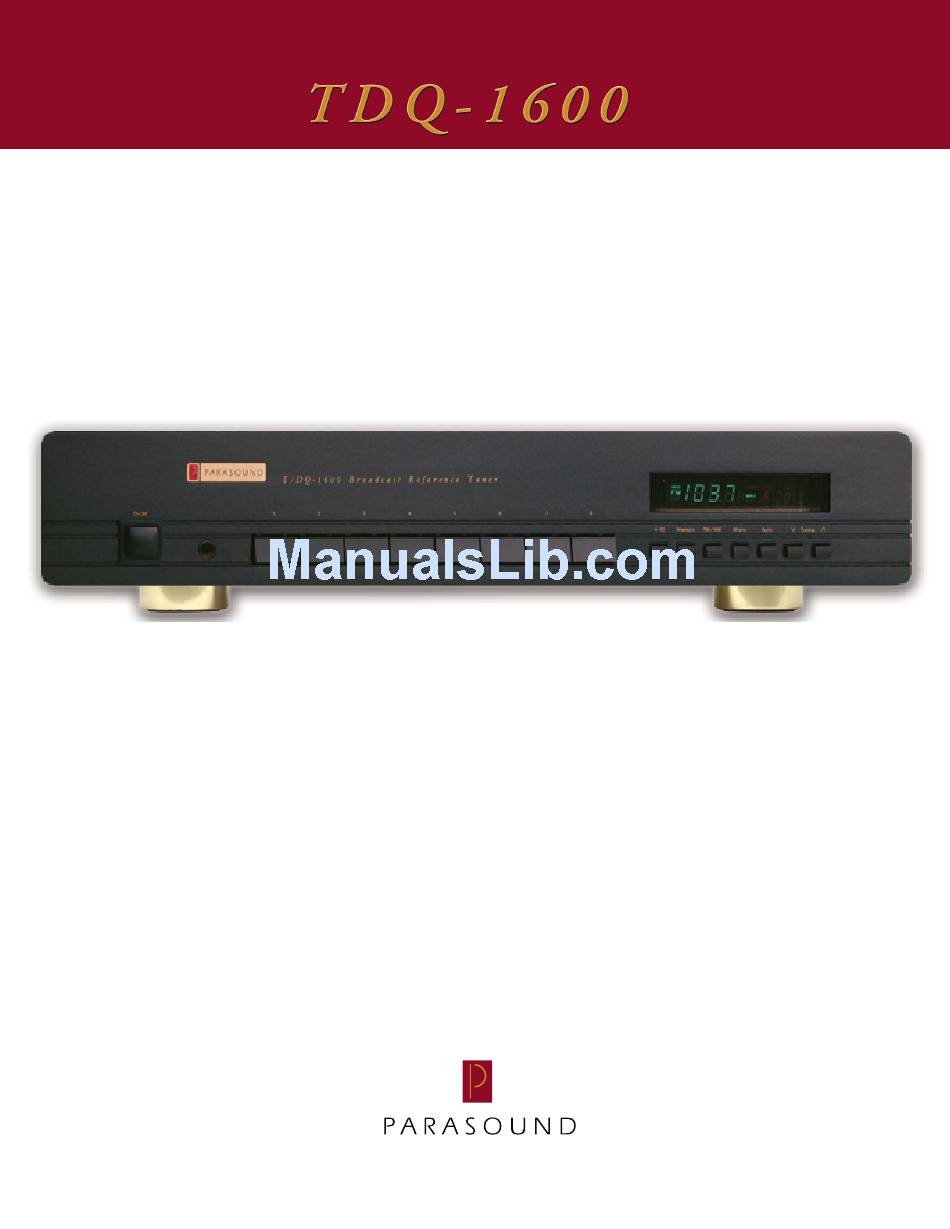

Parasound's TDQ-1600 tuner has enough sensitivity and selectivity to lock in all your favorite stations, and
enough audio quality to ensure that you enjoy them. Using either the front panel controls or your remote you
can auto scan the dial, manually pick your frequency or select from 20 user preset stations. It is even capable of
control from another room with an infrared remote input connection on the back panel. All components are
audiophile grade and designed to bring your favorite FM/AM stations into your home with clarity. This full-chassis
tuner completes any home audio system.
Features
Automatic, manual, and preset tuning
Ultra Wideband IF section for low distortion
CMOS solid state switching
Regulated power supply
Audiophile-grade components
Twenty station presets with long-term memory
Fully remote controlled
Silver-plated OFC internal wiring
Rear panel infrared remote input
Heavy-duty chassis
2 rack space high front panel
Fastening hardware available for rack mounting
Parasound's 10 years parts, 5 years labor warranty
Parasound Products, Inc. 950 Batter y Street, San Francisco, CA 94111
A u d i o p h i l e T u n e r
415-397-7100 / FAX 415-397-0144 www.parasound.com
Specifications
Tuning range: FM 87.5 MHz to 108 MHz; AM 520 kHz to 1610 kHz
FM sensitivity: Mono - IHF 10.8 dBf
Stereo - IHF 37.2 dBf for 50 dB of quieting
AM sensitivity: IHF 350 µV/m
FM stereo separation: 50 dB @ 1 kHz; 40 dB @ 10 kHz
Selectivity: FM 80dB; AM 50dB
FM frequency response: 20 Hz - 15 kHz +/- 1 dB
AM frequency response: 20 Hz - 4.5 kHz +/- 2 dB
Total harmonic distortion: FM Mono < 0.08%; FM Stereo < 0.2%
AM < 0.6%
Capture ratio: 1 dB
AM Suppression: 60 dB
Dimensions: 17-1/4" w x 4-1/8" h x 12-3/8" d, 3-1/2" h without feet
Shipping weight: 20 lbs.
