O
W
N
Congratulations on your purchase of this precision audio component and thank you for your selection of
Parasound. Your T/DQ-1600 Broadcast Reference Tuner has been designed with the latest technology
to perform flawlessly in the finest music systems. Premium parts and advanced design with full remote
control make the T/DQ-1600 one of the finest tuner values ever offered. You have made an excellent
choice.
Please take a few moments now to read these instructions thoroughly so you may fully understand the
sophisticated capabilities of your new tuner.
Unpacking
Remove the remote control handset and the AC cord which are packed separately inside the carton. We
recommend using only this specially selected cord for the best musical reproduction.
Save your carton and the packing inserts for future safe transport in case you move or the unit requires
shipping for repair. Note: the actual printed carton is not itself strong enough for safe shipping; you
must place this carton into an additional outer "overcarton" before shipment.
Before you proceed, find the serial number which is located on the rear panel of the unit and note it here
for future reference or in case the unit is ever stolen ____________________ .
Placement of the T/DQ-1600
Keep your Parasound T/DQ-1600 away from direct sunlight that may interfere with its remote control
sensor. It should be placed away from a heat source such as hot air registers or radiators. Do not place
the unit directly on a pile carpet that could interfere with air flow into its bottom vent openings. If you
stack your components, we suggest you place your T/DQ-1600 below or alongside other components
which may generate heat. Additionally, close proximity to some power amplifiers or CD players may
interfere with clear radio reception of your T/DQ-1600.
E
R
'
S
affordable audio for the critical listener

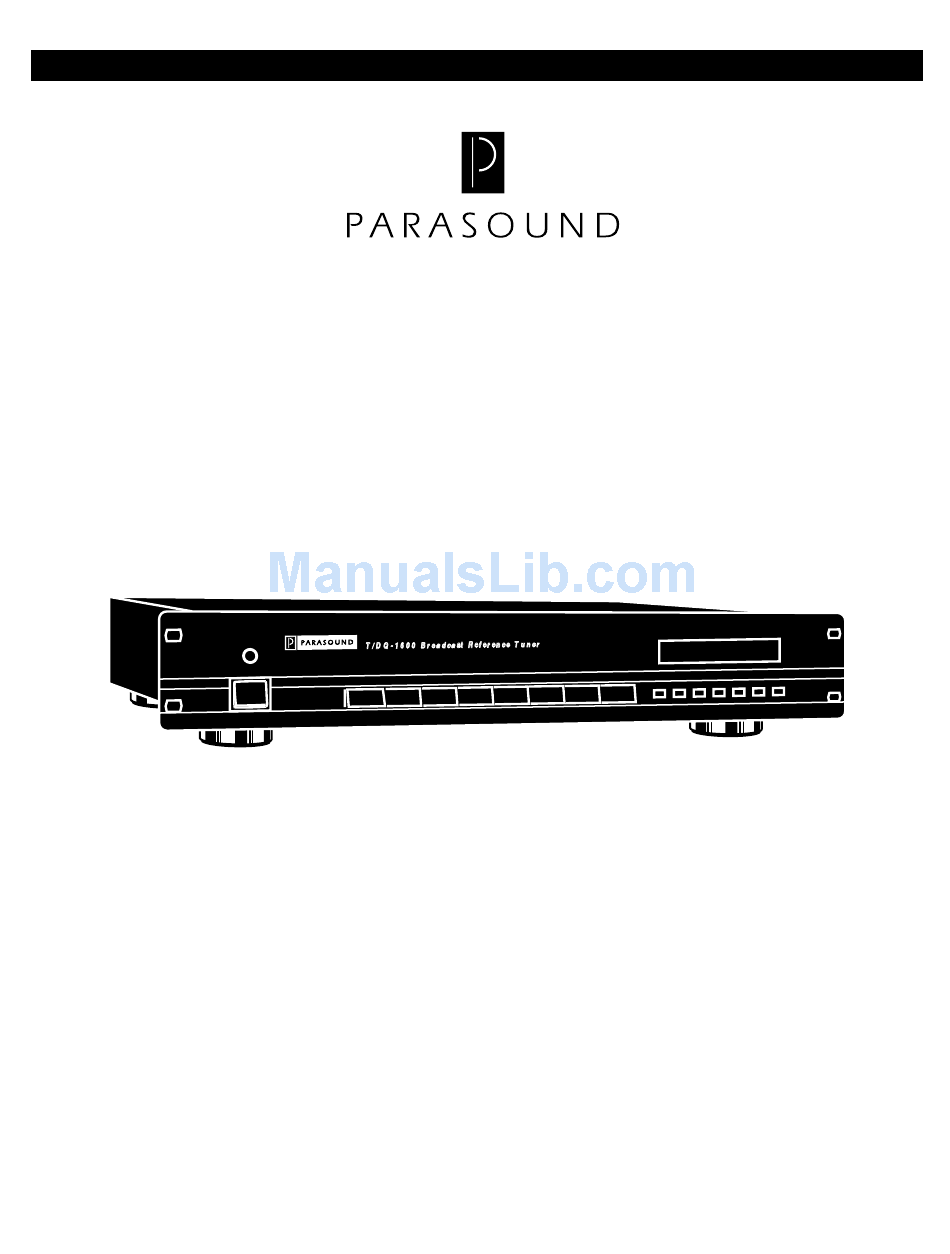

T/DQ-1600 Broadcast Reference Tuner
2
1
O n - O f f
O n - O f f
M
8
7
4
5
6
3
-1-
A
N
U
v
FM/AM M o n o
M o n o
A u t o
A u t o
v T u n i n g
T u n i n g
Memory FM/AM
+ 1 0
+ 1 0
Memory
A
L
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Parasound T/DQ-1600
Summary of Contents for Parasound T/DQ-1600
- Page 1 ____________________ . Placement of the T/DQ-1600 Keep your Parasound T/DQ-1600 away from direct sunlight that may interfere with its remote control sensor. It should be placed away from a heat source such as hot air registers or radiators. Do not place the unit directly on a pile carpet that could interfere with air flow into its bottom vent openings.
- Page 2 You may prefer to try premium audio interconnect cables which are available from your Parasound dealer. The benefits of these are debated among audio hobbyists, and we cannot guarantee you will always hear an audible improvement that will justify their cost.
- Page 3 This connector is a popular 1/8" (3.5 mm) mini jack and its center conductor is +, the outer is - . For further details contact your Parasound dealer or custom installer. AC Line Cord The high-quality IEC standard AC cord supplied with your T/DQ-1600 should be connected directly to an AC wall outlet or an unswitched outlet on your preamplifier or receiver that is always “live.”...
- Page 4 Remote Control The remote control included with your T/DQ-1600 is the same remote used to control the Parasound P/LD-1100 and P/LD-2000. When using the T/DQ-1600 with either of these preamplifiers, you only have to use one of the provided remote handsets to control all of the functions of both units.
- Page 5 If we determine that your T/DQ-1600 should be returned to Parasound for inspection and possible servicing, you must first obtain a Return Authorization number from Parasound. You will be asked to repack the unit in its original carton and cardboard packing plus an additional outer box over its own box for proper protection in transit.
- Page 6 T/DQ-1600 Specifications Tuning Range FM: 87.5 MHz to 108 MHz AM: 520 kHz to 1610 kHz FM Sensitivity Mono IHF 10.8 dBf Stereo IHF 37.2 for 50 dB of quieting AM Sensitivity IHF 175 uV/m FM Stereo Separation 50 dB @ 1 kHz 40 dB @ 10 kHz FM Selectivity 80 dB...
- Page 7 Special Features • Ultra Wideband IF Section • Twenty Station Presets • 19" Rack Mount Front Panel • CMOS Solid State Switching • Fully Remote Controlled • Unified Remote Handset • Regulated Power Supply • Auto Scan Circuitry • Rear Panel IR Connection •...
- Page 8 Your Parasound T/DQ-1600 is covered by a limited warranty against defects in materials and workman- ship for a period of two years from date of purchase. This warranty is provided by the Parasound dealer where the unit was purchased. Warranty repair will be performed only when your purchase receipt is presented to validate your ownership, date of purchase and authorized status of the selling dealer.
