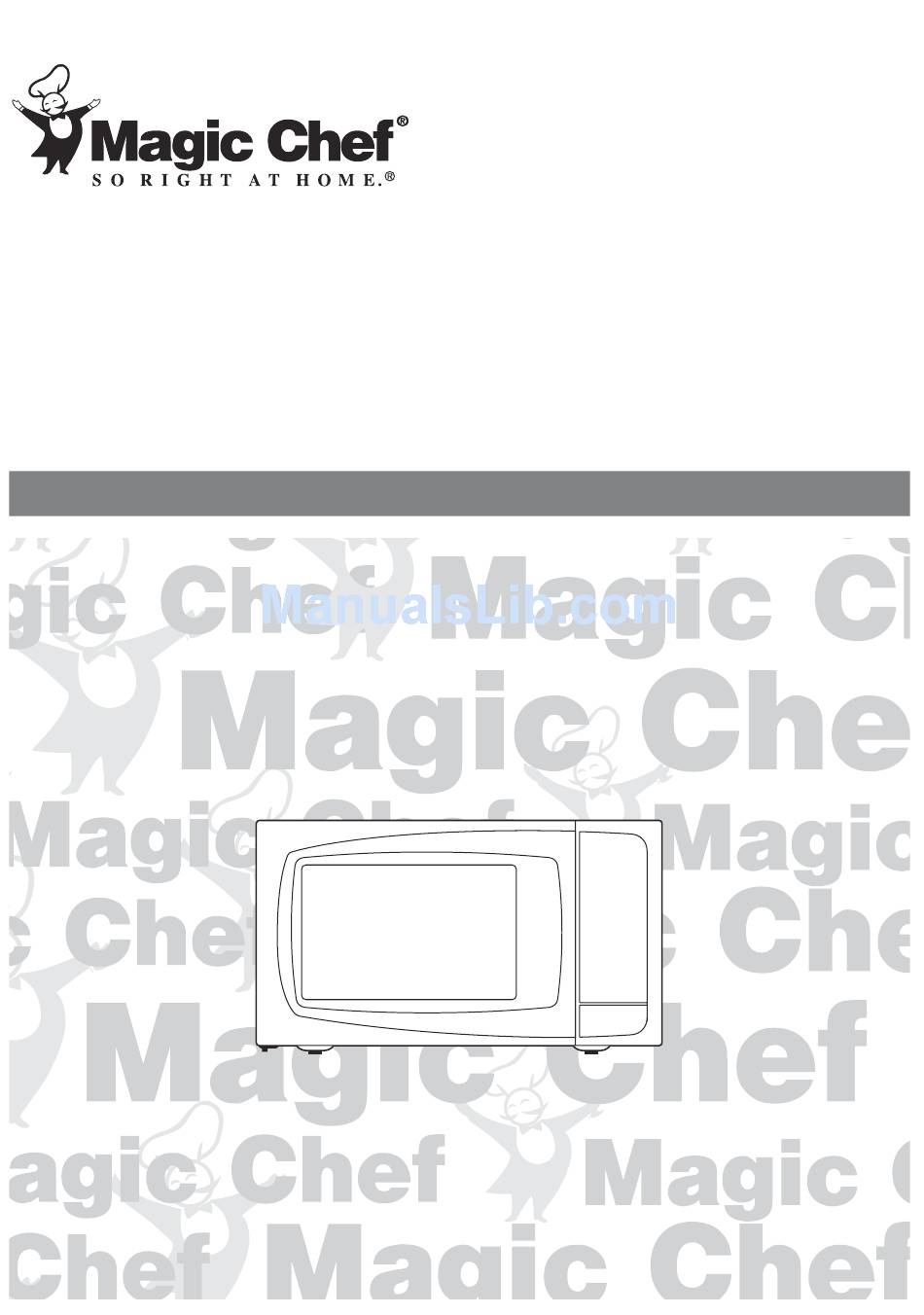

- Page 1 0.7 cu. ft. Microwave Oven MCD770W / MCD770B Instruction Manual So Right at Home. Never operate the oven when it is empty or without the glass turntable. Before operating this oven, please read these instructions completely.
-
Page 2: Table Of Contents
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should be followed, including the following: WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 11. Read all instructions before using the appliance. door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit 12. -
Page 4: Federal Communications Commission Radio Frequency Interference Statement
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type-tested and found to comply with limits for an ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. -
Page 5: Installation
INSTALLATION 1. Examine the oven after unpacking. Check for damage such as a misaligned door, broken door or dent in the cavity. If any damage is visible, DO NOT INSTALL, and notify your dealer immediately. 2. Level, flat location. Install the microwave oven on a level, flat surface. 3. -
Page 6: Specifications
SPECIFICATIONS POWER SUPPLY 120V AC, 60Hz SINGLE PHASE WITH GROUNDING INPUT POWER 1100 W MICROWAVE ENERGY OUTPUT 700 W FREQUENCY 2,450 MHz OUTSIDE DIMENSIONS (W x H x D) 446 (17.5) x 270 (10.6) x 316 (12.4) mm (inch) CAVITY DIMENSIONS (W x H x D) 295 (11.6) x 219 (8.6) x 303 (11.9) mm (inch) CAVITY VOLUME 0.7 cu.ft... -
Page 7: Features Diagram
FEATURES DIAGRAM 1 Door latch - When the door is closed it 6 Door release button - Pushing this will automatically shut off. If the door is button stops oven operation and opens opened while the oven is operating, the the door. -
Page 8: Features Diagram
FEATURES DIAGRAM (continued) 1 DISPLAY - Cooking time, power level, indicators 5 DEFROST - Used to defrost foods for weight and current time are displayed. and time. 2 AUTO COOK - Used to cook some kind of 6 CLOCK - Used to set clock. popular food easily and automatically. -
Page 9: Operation Procedure
OPERATION PROCEDURE This section includes useful information about oven operation. 1. Plug power supply cord into a standard 3-pronged 9.5 Amp, 120V AC 60Hz power outlet. 2. After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray and roller guide must always be in place during cooking. -
Page 10: Controls
CONTROLS SETTING THE CLOCK When the oven is first plugged in, the display will show “:0” and a tone will sound. If the AC power ever goes off, the display show “ : 0” when the power comes back on. 1. -
Page 11: Weight Defrosting
WEIGHT DEFROSTING When DEFROST is selected, the automatic cycle divides the defrosting time into periods of alternating defrost and stand times by cycling on and off. 1. Touch the DEFROST pad. The display will show you " 0.0 " . This is the weight defrosting mode. -
Page 12: Cooking In One Stage
COOKING IN ONE STAGE 1. Touch the POWER pad. The display will show what you touched. (Select the desired power level.) NOTE: If step 1 is omitted, the oven will cook at full power. 2. Touch the TIME SET pads for the The display will show what you touched. -
Page 13: 30Sec
+30 sec +30 sec allows you to reheat for 30 seconds at full power by simply touching the +30 sec pad. By repeatedly touching the +30 sec pad, you can also extend reheating time to 5 minutes by 30 second increments. 1. - Page 14 When you use the AC-1, place the popcorn bag carefully so bag does not touch oven walls. The bag may be folded down as follows. popcorn popcorn popcorn popcorn popcorn NOTE: 1. Use prepackaged room-temperature microwave popcorn. 2. Place bag in oven according to manufacturer's directions. 3.
-
Page 15: Child Safety Lock
CHILD SAFETY LOCK The safety lock prevents unwanted oven operation such as by small children. To set, touch and hold the STOP/CLEAR pad for 3 seconds, a beep sounds. To cancel, touch and hold the STOP/CLEAR pad for 3 seconds, a beep sounds. TO SET POWER SAVE MODE 1. -
Page 16: Care Of Your Microwave Oven
CARE OF YOUR MICROWAVE OVEN The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Turn the oven off before cleaning. -
Page 17: Before You Call For Service
BEFORE YOU CALL FOR SERVICE • The oven doesn’t work : • Sparking in the cavity : 1. Check that the power cord is securely plugged 1. Check utensils. Metal containers or dishes with metal trim should not be used. 2. -
Page 18: Microwave Oven Warranty
MC Appliance Corporation Model Parts Labor Magnetron (Part Only) Type of Service MCD770W One-Year One-Year Eight Years Carry In MCD770B One-Year One-Year Eight Years Carry In For Service or Assistance please call 888 775-0202 Or visit us on the web at www.mcappliance.com...
