BOSSCOM Powerlink-Switch
(Powerlink Converter / Automatic Source Switching with RCA and 8-pin DIN Inputs, B&O

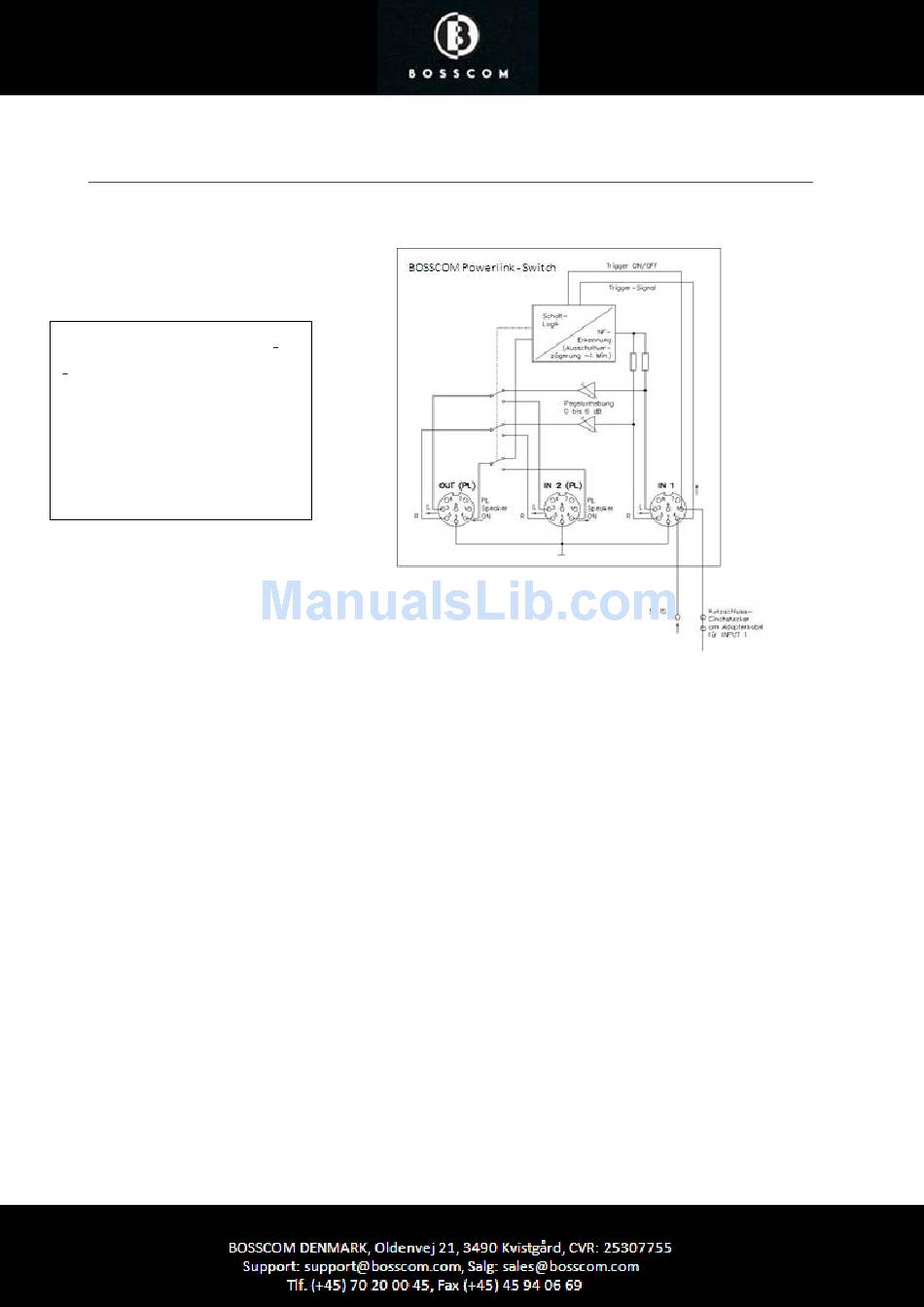

Block Diagram
Schaltlogik = Switching Logic
NF-Erkennung (Ausschaltverzogerung
Min) = LF-Recognition (switching off delay
1 min.)
Pegelanhebung 0 bis 5 dB = Level Increase
0 to 6 dB
Kurzschluss-Cinchstecker am Adapterkabel
fur INPUT 1 = Short circuit RCA-plug on
adapter cable for INPUT 1
Technical Data
Powerlink Signals
Remote Power INPUT 1
Automatic Activation INPUT 1
Level Increase INPUT 1
Inputs
Output
Power Supply
Power Consumption
Dimensions
Weight
Color
Included Accessories
Warranty
1
INPUT 2 and OUTPUT are 100% B&O
ON/OFF via external contact voltage (5-15 V DC)
an 8-pin DIN input jack
"ON" as soon as a low-frequency signal is present, "OFF" (Standby)
if no LF-signal is present for longer than 1 minute.
Max. +6 dB to equalize the volume to INPUT 2,
separately adjustable for L and R
INPUT 1 | 8-pin DIN
INPUT 2 | 8-pin DIN (Powerlink)
OUTPUT | 8-pin DIN (Powerlink)
200-240V~ 50 Hz
Stand by <1 Watt
171 x 72 x 34 mm (L x W x H)
0.3 kg
black
Adapter Cable for INPUT 1,
Short circuit-RCA plug for trigger ON / OFF
Power cable (Euro plug)
2 years
®
Compatible)
®
compatible
