BOSSCOM Powerlink-Switch
(Powerlink Converter / Automatic Source Switching with RCA and 8-pin DIN Inputs, B&O

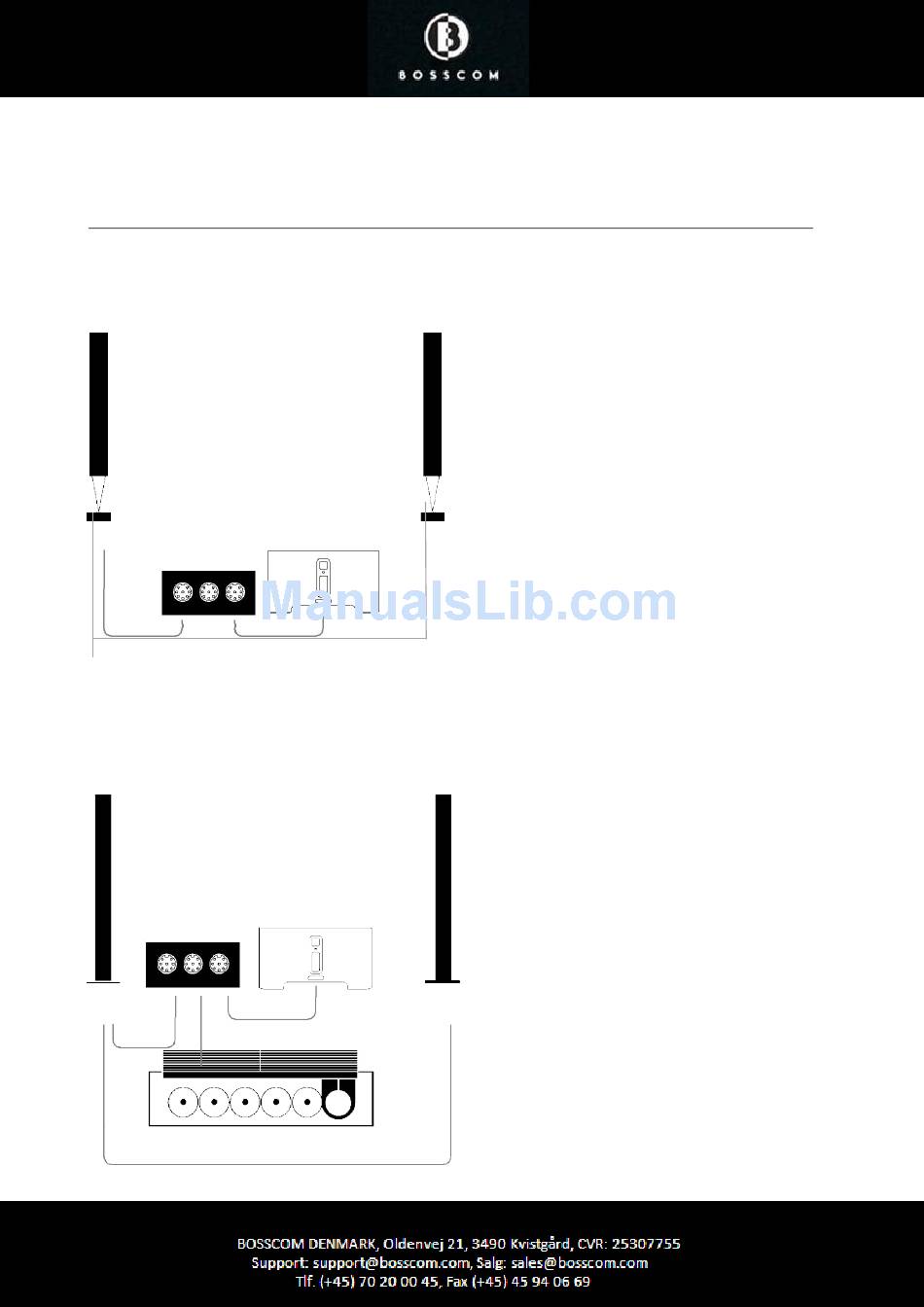

Example of Use 1
Converting LF-Signals (stereo-RCA) to Standard-Conforming B&O
®
B&O Speakers
®
e.g. BeoLab 8000
Any stereo source, e.g.
SONOS
BOSSCOM
Powerlink-
Switch
Example of Use 2
Feed-in of LF-Signals (Stereo-RCA) to B&O
(without trigger signal)
®
B&O Speakers
®
e.g. BeoLab 6000
Any stereo source, e.g.
SONOS
BOSSCOM
Powerlink-
Switch
®
B&O System
e.g. BeoSound
®
9000
®
B&O Speakers
®
e.g. BeoLab 8000
®
Zoneplayer
®
Systems with Automatic Switching
®
B&O Speakers
®
e.g. BeoLab 6000
®
Zoneplayer
®
Connect any stereo source with an RCA cable to INPUT
1 of the BOSSCOM Powerlink-Switch, via the adapter
cable (included) and use the device as Powerlink
converter and use the device as Powerlink converter.
Once a low-frequency signal is present, a standard-
®
conforming B&O Powerlink signal (including contact
voltage) is sent. If the source does not send a signal to
INPUT 1 (e.g. it's turned off, or muted), an intelligent
switch provides a delay of about 1 minute - only then will
the Powerlink signal be switched off and the
®
B&O speakers will go to standby mode. This is
necessary for longer pauses in audio books for example
and allows you sufficient time to select the next songs to
be played from your music library.
Interconnect the BOSSCOM Powerlink-Switch
®
between your B&O system and your B&O
speakers. Connect any stereo source with an
RCA cable to INPUT 1 of the BOSSCOM
Powerlink-Switch, via
(included).
Once a low-frequency signal is present at INPUT
1, it is converted to a standard-conforming B&O
Powerlink signal (including contact voltage) and
you can listen to this stereo source with your
®
B&O speakers, otherwise the Powerlink signal is
passed through to INPUT 2 and you listen to
®
your B&O system.
CAUTION: If signals are present at both
INPUT 1 and INPUT 2, INPUT 1 always has
priority!
If the source does not send a signal to INPUT 1
(e.g. it's turned off, or muted), an intelligent
switch provides a delay of about 1 minute - only
then will the Powerlink signal be switched off
®
and the B&O speakers will go to standby
mode, or INPUT 2 will be passed through (if a
signal is present).
®
