CHAPTER 3 ADDED FEATURES
Your new Pyramid LCD incorporates three significant new features: a touch-screen LCD, a
magnetic card reader and a VFD customer display. Improved view ability panel technology
delivers bright, flicker-free display with an exceptionally wide viewing angle and minimal
reflection for fewer glares, less eyestrain. Increased energy efficiency leads to reduced
energy use and heat generation, lowering cooling and power costs. The Pyramid LCD comes
with a separate MSR, USB Connector on the side of the LCD.

3.1 VFD Customer Display

A VFD customer display is affixed to the housing of the Pyramid LCD behind the LCD. It can
display two rows of up to 20 characters.
3.1.1 General Specifications
NO ITEM
1 Display method
2 Number of character
3 Character font
4 Display color
5 Brightness
6 Character type
7 Character size
8 Power supply
9 Power consumption
10 MTBF
11 Panel dimensions
12 Support dimensions
13 Base dimensions
14 Viewing angle
15 Rotation angle
16 Weight
17 Operating temperature
18 Operating Humidity
19 Storage Temperature
20 Storage Humidity

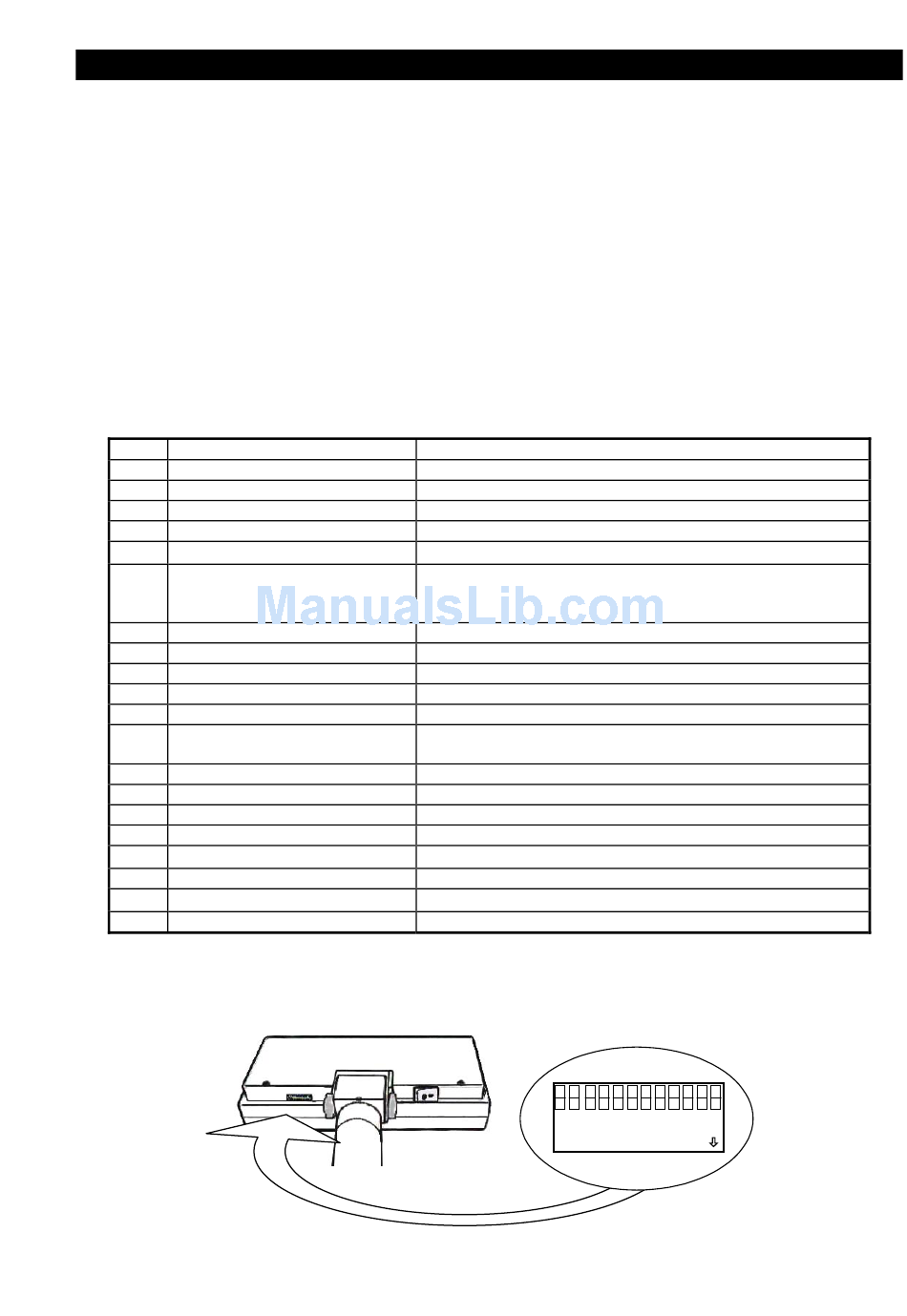

3.1.2 Dip Switch Setting
Description
Vacuum fluorescent display
40 characters (20 columns x 2 lines)
5 x 7 dot matrix
Blue green
700cd/㎡
96 alphanumeric
13 kinds of international character set
1 kind of user define character
9.2mm x 5. 25mm
9 - 45V DC
3 – 6W
25000 hours (power on time)
224 (W) x 93 (H) x 50(D) mm
Long support: 219mm
Short support: 88mm
190 (W) x 55 (H) x 96 (D) mm
-5 - 60 degrees
Maximum 270°
1.25 Kg
5 – 45℃
30%-85%
-10 - 55℃
10%-85%
1 2 3 4 5 6 7 8 9
DIP
15
10 11 12
ON
