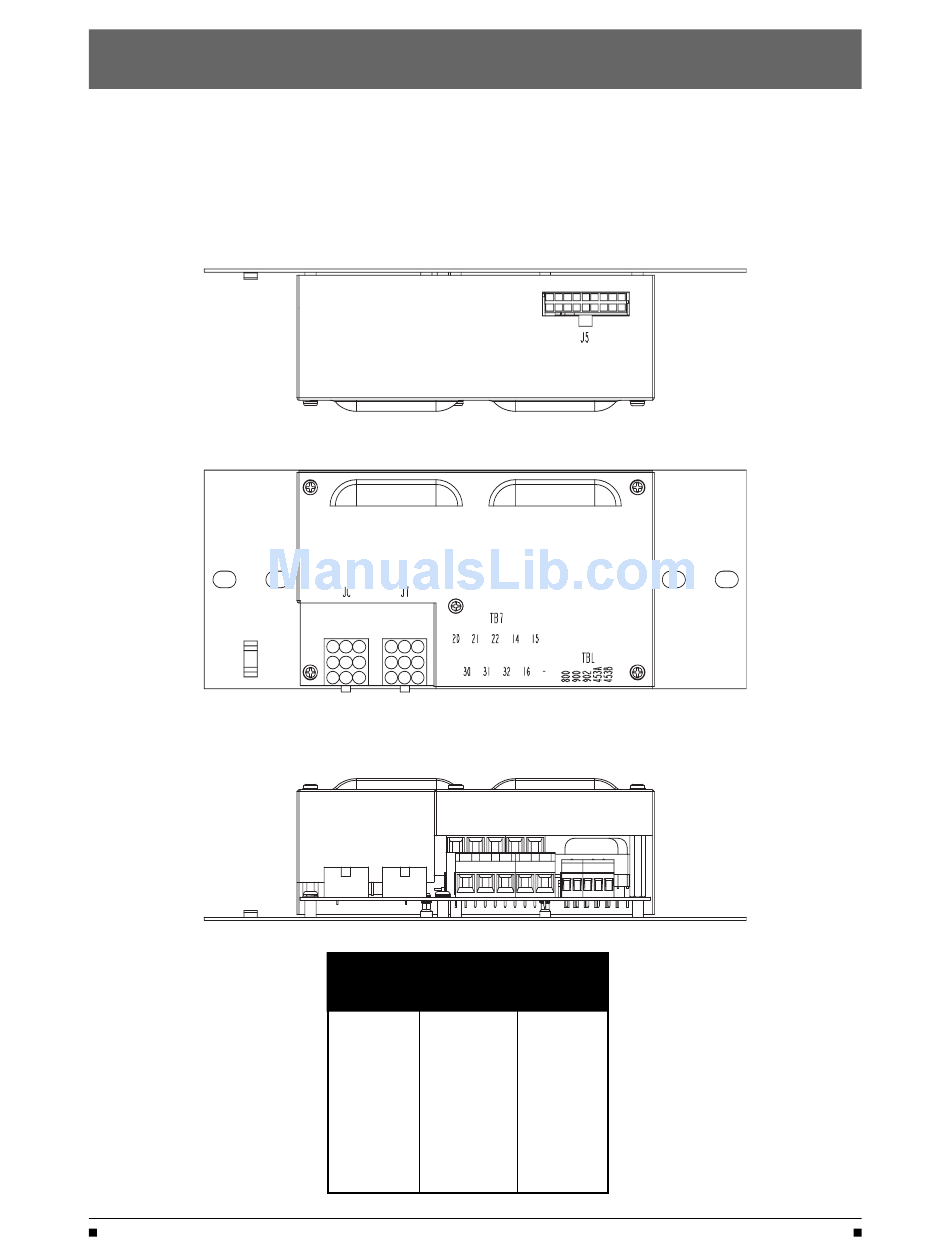

Controls Power Supply (CPS)

Standard and Delay Transition
Each Entelli-Switch 250 microprocessor based ATS
controller requires Controls Power Supply (CPS) to apply
line voltage to the ATS operator via SCRs. Also required is
power for the Entelli-Switch 250 printed circuit board and
an application of sensing voltage proportional to line
GE Zenith Controls
voltage. This is accomplished by the Controls Power Supply
(CPS). This method of switching operator voltage and
applying power and sensing voltage to the printed circuit
board isolates the MX250 from the line voltage, further
protecting the controller from harmful line transients.
Primary CPS
Voltage Assembly
at 50/60 Hz Part No.
120V 50P-1224
208-220V 50P-1225
230-240V 50P-1226
277V 50P-1227
380-400V 50P-1228
416-440V 50P-1229
460-480V 50P-1230
575-600V 50P-1231
ZBTS / ZBTSD Operation and Maintenance Manual (71R-4000A)
CPS
Board
No.
50P-1200
50P-1201
50P-1202
50P-1203
50P-1204
50P-1205
50P-1206
50P-1207
I
